Fodsports F1 PRO મોટરસાઇકલ બ્લૂટૂથ હેડસેટ વપરાશકર્તા માર્ગદર્શિકા

1. પરિચય

The Fodsports F1 PRO is a motorcycle Bluetooth headset designed to enhance communication and safety during rides. It features a unique safety light, intercom capabilities for two riders, high-fidelity audio with EQ sound modes, and a robust waterproof design. This manual provides detailed instructions for installation, operation, and maintenance to ensure optimal performance and user experience.

Image 1.1: Fodsports F1 PRO Headset highlighting key features.

2. બોક્સમાં શું છે

ખાતરી કરો કે બધા ઘટકો પેકેજમાં હાજર છે:

• F1 PRO Bluetooth Headset Unit
• સ્પીકર્સ અને હાર્ડ ટ્યુબ માઇક્રોફોન
• યુએસબી ચાર્જિંગ કેબલ
• કેબલ ક્લિપ
• ચુંબકીય આધાર (x2)
• 3M Glue Velcro (x2)
• Velcro (for speakers)
• સ્પીકર બૂસ્ટર પેડ્સ
• User Manual (Start Guide)

Image 2.1: Package contents of the Fodsports F1 PRO.

3. ઉત્પાદન સુવિધાઓ

• Integrated Safety Light: Features 3 light colors (red, blue, green) and 9 light effects (long light, flashing, breathing) for enhanced visibility during night riding.
• 2-Rider Bluetooth Intercom: Supports communication between two riders with Bluetooth 5.0 technology, offering stable connectivity up to 1000 meters (0.62 miles).
• CVC Noise Cancellation & Hi-Fi Stereo Sound: Equipped with a professional noise-canceling microphone and a smart noise cancellation chip. Features 40mm high-fidelity speakers for clear audio even at high speeds.
• મેગ્નેટિક માઉન્ટિંગ સિસ્ટમ: Easy and secure magnetic base design for quick installation and removal on various helmet types.
• લાંબી બેટરી જીવન: Built-in 1500 mAh battery provides up to 30 hours of talk time, 40 hours for the warning light, and 2 weeks of standby time.
• EQ Sound Modes: Enjoy 3 different music styles: HiFi Bass, Popular Golden Classic, and Pure Human Voice.
• IP67 વોટરપ્રૂફ: Advanced casting process ensures excellent sealing, meeting international IP67 waterproof standards for use in various outdoor weather conditions, even at -15°F.
• એફએમ રેડિયો: Integrated FM radio allows users to listen to their favorite channels.
• Intelligent Battery Display: When paired with a phone, the remaining power level is displayed on the phone screen.

Image 3.1: Advanced technologies in the F1 PRO headset.

4. સેટઅપ

4.1 Mounting the Headset

The F1 PRO uses a magnetic base for easy attachment to various helmet types, including full-face, modular, and 3/4 open-face helmets.

1. Clean the desired mounting area on the back of your helmet thoroughly.
2. Peel off the protective film from one of the 3M Glue Velcro pads and firmly attach it to the helmet.
3. Attach the magnetic base to the 3M Glue Velcro pad on the helmet.
4. Align the F1 PRO headset with the magnetic base and allow it to snap into place. Ensure it is securely attached.

Image 4.1: Magnetic mounting system.

Image 4.2: Helmet compatibility for F1 PRO.

4.2 Speaker and Microphone Installation

Install the speakers and microphone inside your helmet for optimal audio and communication.

1. Locate the ear pockets inside your helmet.
2. Attach the Velcro pads to the back of the speakers.
3. Place the speakers inside the ear pockets, ensuring they are centered over your ears for clear sound. Use speaker booster pads if needed for better fit or volume.
4. Route the microphone cable to the front of the helmet, positioning the microphone near your mouth. Secure the cable using the provided cable clips.
5. Connect the speaker and microphone cables to the F1 PRO headset unit.

4.3 ઉપકરણને ચાર્જ કરવું

Before first use, fully charge the F1 PRO headset.

• Connect the USB charging cable to the charging port on the F1 PRO unit.
• Connect the other end of the USB cable to a standard USB power adapter (not included) or a computer USB port.
• The charging indicator light will illuminate. A full charge typically takes approximately 3 hours.
• The indicator light will change or turn off once charging is complete.

5. ઓપરેટિંગ સૂચનાઓ

5.1 પાવર ચાલુ/બંધ

• પાવર ચાલુ: Press and hold the Power button for approximately 3 seconds until you hear an audible prompt.
• પાવર બંધ: Press and hold the Power button for approximately 3 seconds until you hear an audible prompt.

5.2 Bluetooth Pairing (with Phone)

1. Ensure the F1 PRO is powered off.
2. Press and hold the Power button for about 5-7 seconds until the indicator light flashes red and blue alternately, indicating pairing mode.
3. On your mobile phone, enable Bluetooth and search for available devices.
4. Select "Fodsports F1 PRO" from the list of devices.
5. એકવાર જોડી થઈ ગયા પછી, સૂચક પ્રકાશ ધીમે ધીમે વાદળી રંગમાં ચમકશે, અને તમને પુષ્ટિકરણ સ્વર સંભળાશે.

5.3 Intercom Pairing (with another F1 PRO)

1. Ensure both F1 PRO units are powered off.
2. On both units, press and hold the Intercom button (refer to device layout for specific button) for approximately 5 seconds until the indicator lights flash red and blue alternately.
3. Briefly press the Intercom button on one of the units. The units will search for each other.
4. Once connected, the indicator lights on both units will flash blue slowly, and you will hear a confirmation tone.

5.4 સંગીત પ્લેબેક

• ચલાવો/થોભો: Briefly press the Multi-function button (or designated music control button).
• આગળનો ટ્રેક: વોલ્યુમ અપ બટન દબાવો.
• પાછલો ટ્રેક: વોલ્યુમ ડાઉન બટન દબાવો.
• વોલ્યુમ એડજસ્ટમેન્ટ: Press and hold the Volume Up or Volume Down buttons.

૪.૨ ફોન કોલ્સ

• કૉલનો જવાબ આપો: Briefly press the Multi-function button.
• કૉલ સમાપ્ત કરો: Briefly press the Multi-function button.
• કૉલ નકારો: મલ્ટી-ફંક્શન બટનને 2 સેકન્ડ માટે દબાવો અને પકડી રાખો.
• છેલ્લો નંબર ફરીથી ડાયલ કરો: મલ્ટી-ફંક્શન બટનને બે વાર દબાવો.

5.6 Safety Light Modes

The F1 PRO features 3 light colors (red, blue, green) and 9 light effects. Use the dedicated Light Mode button to cycle through options.

• Briefly press the Light Mode button to change the light color (Red > Blue > Green).
• Double-press the Light Mode button to cycle through light effects (Long Light > Flashing > Breathing).

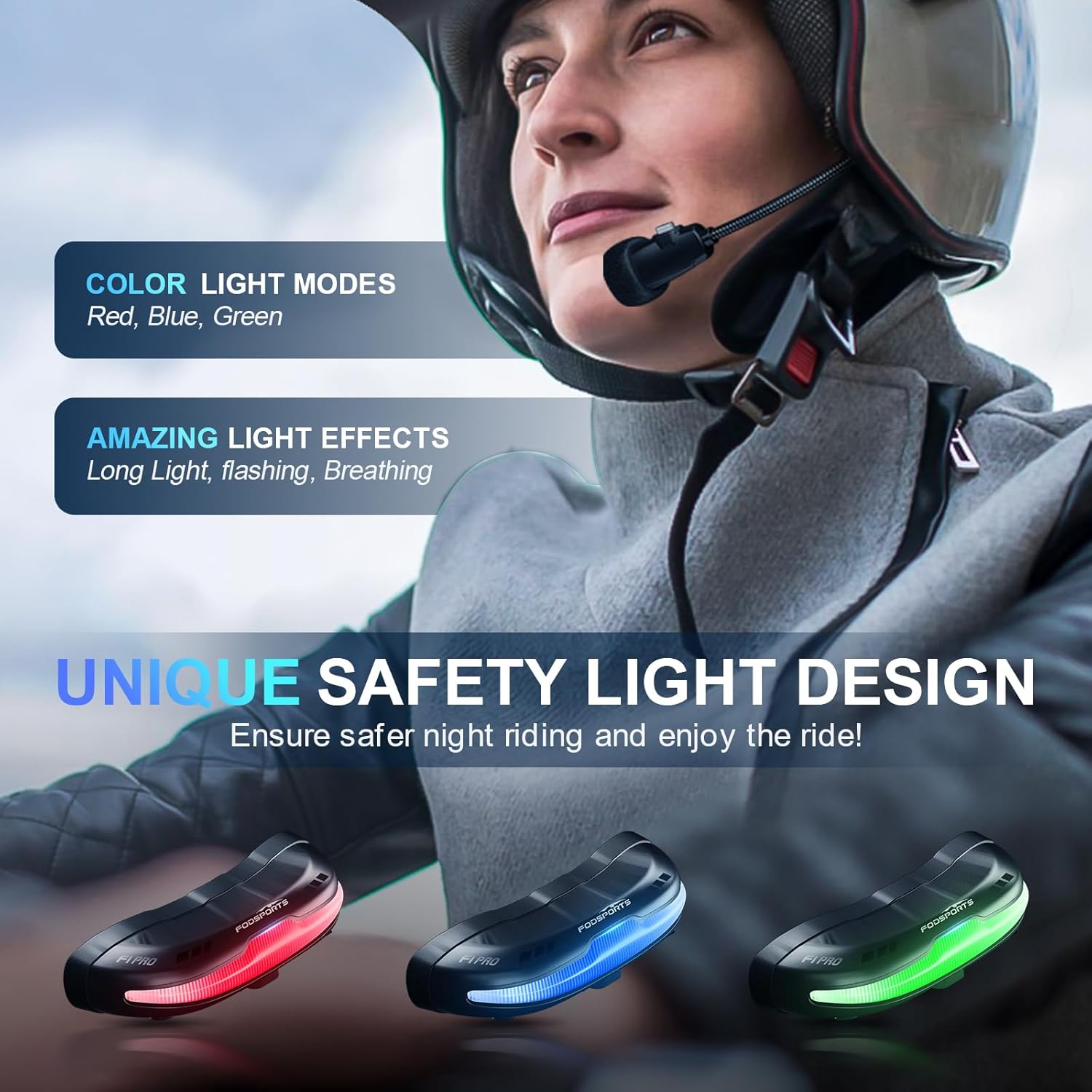

Image 5.1: Available safety light colors.

5.7 EQ Sound Modes

The F1 PRO offers three distinct EQ sound modes. Press the EQ button (refer to device layout) to switch between them:

• HiFi Bass
• Popular Golden Classic
• Pure Human Voice

Image 5.2: EQ Sound Effects and Microphone.

5.8 એફએમ રેડિયો

To activate the FM radio, press the FM button (refer to device layout). Use the Volume Up/Down buttons to scan for stations.

Voice. Voice અવાજ સહાયક

Activate your phone's voice assistant (e.g., Siri) by briefly pressing the Voice Assistant button (refer to device layout).

6. જાળવણી

• સફાઈ: Wipe the headset unit with a soft, damp કાપડ કઠોર રસાયણો અથવા ઘર્ષક ક્લીનર્સનો ઉપયોગ કરવાનું ટાળો.
• સંગ્રહ: ઉપયોગમાં ન હોય ત્યારે ઉપકરણને ઠંડી, સૂકી જગ્યાએ રાખો. અતિશય તાપમાન ટાળો.
• બેટરી સંભાળ: બેટરીનું આયુષ્ય વધારવા માટે, વારંવાર બેટરી સંપૂર્ણપણે ડિસ્ચાર્જ કરવાનું ટાળો. ઉપકરણને નિયમિતપણે ચાર્જ કરો, ભલે તે લાંબા સમય સુધી ઉપયોગમાં ન હોય.
• પાણીનો સંપર્ક: While IP67 waterproof, avoid prolonged submersion. Ensure the charging port cover is securely closed before exposure to water.

7. મુશ્કેલીનિવારણ

• ઉપકરણ ચાલુ થતું નથી: ખાતરી કરો કે બેટરી ચાર્જ થઈ ગઈ છે. પાવર સ્ત્રોત સાથે કનેક્ટ કરો અને ફરી પ્રયાસ કરો.
• ફોન/ઇન્ટરકોમ સાથે જોડી શકાતી નથી: Ensure the device is in pairing mode (flashing red and blue). Make sure other Bluetooth devices are not interfering. Try resetting the device (refer to specific reset instructions if available in a full manual).
• સ્પીકર્સમાંથી કોઈ અવાજ નથી: Check speaker connections to the main unit. Ensure volume is not set to minimum. Verify successful Bluetooth connection.
• માઇક્રોફોન કામ કરી રહ્યો નથી: Ensure the microphone is properly connected and positioned correctly near your mouth.
• Intercom connection drops: Ensure both units are within the specified range (1000 meters) and there are no significant obstructions.
• Safety light not working: Check if the device is powered on. Cycle through light modes to ensure it's not off or in a very dim setting.
• Magnetic mount not holding: Ensure the helmet surface is clean and dry before applying the 3M adhesive. Allow sufficient time for the adhesive to cure.

8. સ્પષ્ટીકરણો

9. વોરંટી અને સપોર્ટ

Fodsports provides customer support for the F1 PRO Motorcycle Bluetooth Headset. For any issues or inquiries regarding this product, please contact the seller directly. The seller, YUANKUN-US, commits to replying within 12 hours.

To contact support, navigate to the product page on Amazon, locate the seller information (usually under the 'Add to Cart' button), and click on the seller's name (e.g., "YUANKUN-US") then select "Ask a question".

કૃપા કરીને વોરંટી દાવા માટે તમારી ખરીદીનો પુરાવો જાળવી રાખો.
