FK Irons Flux Max Wireless Pen Tattoo Machine User Manual (4.0mm Stroke)

1. પરિચય

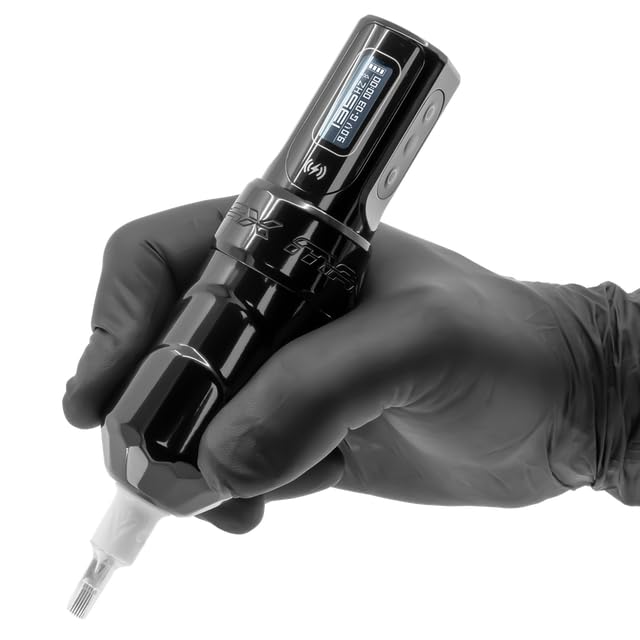

This manual provides comprehensive instructions for the FK Irons Flux Max Wireless Pen Tattoo Machine. It covers essential information regarding setup, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your device. The Flux Max is designed for professional tattoo artists, offering advanced features and ergonomic design for precision and comfort.

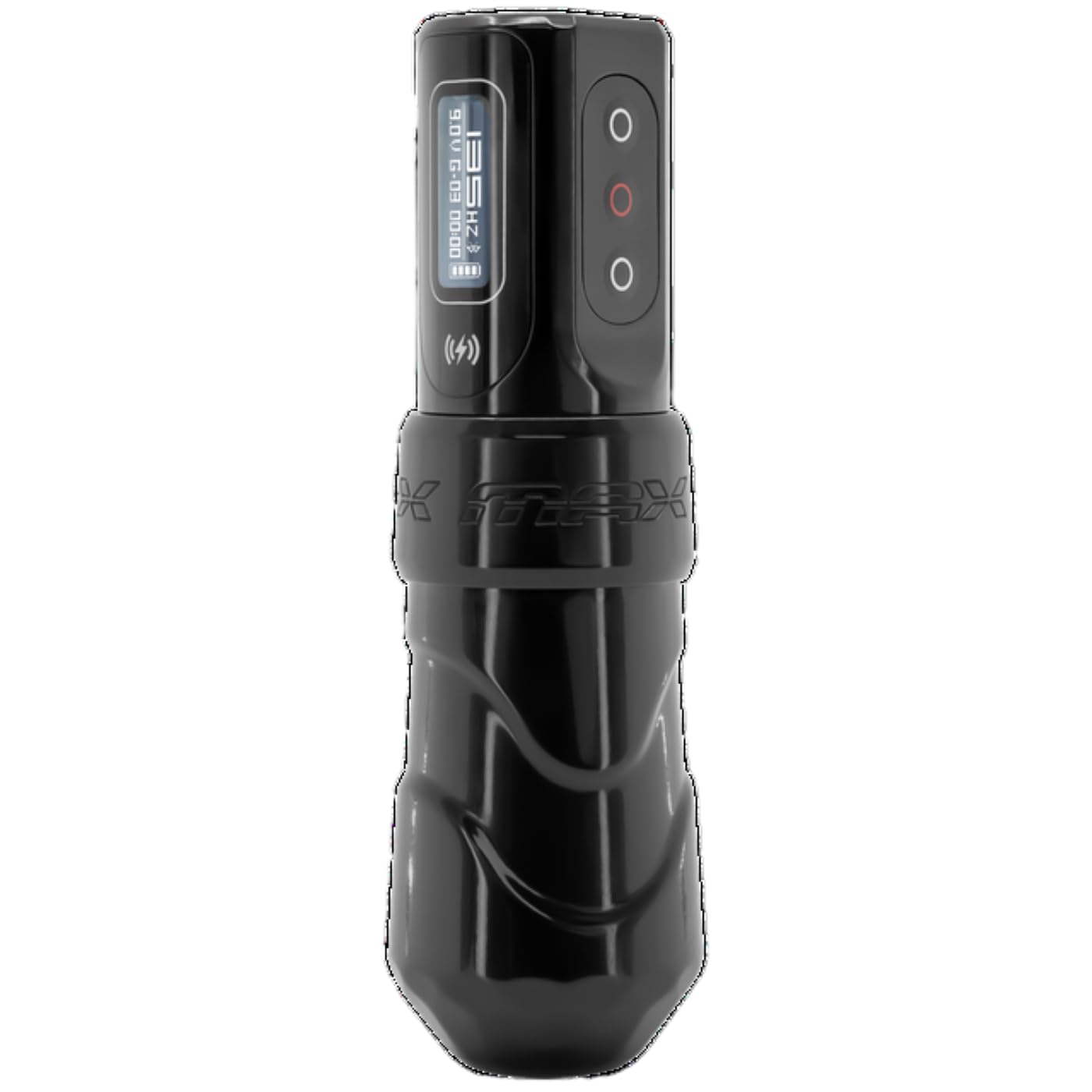

The FK Irons Flux Max wireless tattoo machine pen offers extended stroke length options, including 3.2mm, 4.0mm, and 4.5mm. It features the PowerBolt II battery pack with an OLED digital display, Bluetooth connectivity, and over 10 hours of tattooing power. The PowerBolt II allows for adjustable give directly on the device, eliminating the need for a mobile app connection. Constructed from 6061 T6 aluminum, the machine incorporates a redesigned ergonomic grip for enhanced control and comfort, with voltage adjustments available in 0.1 increment steps.

2. મુખ્ય લક્ષણો

• Extended Stroke Length Options: Available in 3.2mm, 4.0mm, and 4.5mm for versatile tattooing applications.
• PowerBolt II Battery Pack: Provides over 10 hours of battery life with an OLED digital display.
• બ્લૂટૂથ કનેક્ટિવિટી: Enables advanced features and connectivity.
• Adjustable Give: Control needle give directly from the PowerBolt II without requiring a mobile application.
• એર્ગોનોમિક ડિઝાઇન: Features a redesigned grip and forward-weighted balance for maximum control and comfort during extended use.
• ચોકસાઇ વોલ્યુમtage ગોઠવણ: Allows for fine-tuning of voltage 0.1V ઇન્ક્રીમેન્ટમાં.
• ટકાઉ બાંધકામ: Made from high-quality 6061 T6 aluminum.

3. સલામતી માહિતી

This device is intended for professional use only by trained and certified tattoo artists. Adherence to local health and safety regulations is mandatory.

• ફક્ત બાહ્ય ઉપયોગ: The tattoo machine is for external application of tattoo ink to the skin.
• નસબંધી: Ensure all components that come into contact with the skin or ink are thoroughly sterilized before each use. Use appropriate sterilization methods as per industry standards.
• વ્યવસાયિક ઉપયોગ: This equipment is designed for experienced or professional tattoo artists only.
• પાવર સ્ત્રોત: Use only the provided PowerBolt II battery pack or compatible FK Irons power sources.
• ભેજ ટાળો: Keep the device dry. Do not immerse in liquids.
• નિકાલ: Dispose of needles and other consumables according to biohazard waste regulations.

4. સેટઅપ

4.1 અનપેકિંગ અને નિરીક્ષણ

Carefully unpack all components. Inspect the machine and PowerBolt II for any signs of damage. If any damage is observed, do not use the device and contact your supplier immediately.

4.2 Charging the PowerBolt II

1. Connect the provided USB-C charging cable to the PowerBolt II charging port.
2. કેબલના બીજા છેડાને સુસંગત USB પાવર એડેપ્ટર સાથે જોડો (શામેલ નથી).
3. The OLED display on the PowerBolt II will indicate charging status. A full charge typically takes approximately 1.5 hours.
4. Ensure the PowerBolt II is fully charged before initial use for optimal battery performance.

4.3 Attaching the PowerBolt II to the Machine

1. Align the PowerBolt II with the machine body, ensuring the connection points are clean and free of debris.
2. Gently push and twist the PowerBolt II onto the machine body until it is securely seated. Do not force the connection.

4.4 Needle Cartridge Installation

1. ખાતરી કરો કે મશીન બંધ છે.
2. Select a sterile, compatible needle cartridge.
3. Insert the needle cartridge into the machine's cartridge receiver, twisting gently until it locks into place.
4. Adjust the needle depth by rotating the grip of the machine.

5. ઓપરેશન

5.1 પાવરિંગ ચાલુ/બંધ

• To power on, press and hold the power button on the PowerBolt II until the OLED display illuminates.
• પાવર ઑફ કરવા માટે, ડિસ્પ્લે બંધ ન થાય ત્યાં સુધી પાવર બટનને દબાવી રાખો.

5.2 Adjusting Voltage

• Once powered on, the OLED display will show the current voltage.
• ઉપરનો ઉપયોગ કરો (+) અને ડાઉન (-) buttons on the PowerBolt II to adjust the voltage 0.1V ઇન્ક્રીમેન્ટમાં.
• ભલામણ કરેલ ઓપરેટિંગ વોલ્યુમtage range is typically between 5V and 12V, but may vary based on needle configuration and artist preference.

5.3 Adjusting Give

The PowerBolt II allows for direct adjustment of needle give. Refer to the PowerBolt II specific instructions for detailed steps on accessing and modifying give settings via the OLED display menu.

૪.૩ બ્લૂટૂથ કનેક્ટિવિટી

The Flux Max features Bluetooth connectivity for advanced control and firmware updates via the Darklab app. Consult the Darklab app documentation for pairing instructions and available features.

5.5 Using the Killswitch (Optional)

The FK Irons Killswitch (sold separately) can be paired with the Flux Max for wireless foot pedal control. Follow the Killswitch's pairing instructions to connect it to your machine.

5.6 ઉત્પાદન વિડિઓ

6. જાળવણી

6.1 સફાઈ

• After each use, wipe down the exterior of the machine and PowerBolt II with a sterile wipe or a cloth dampened with an approved disinfectant solution.
• Do not spray cleaning solutions directly into the machine or PowerBolt II.
• Ensure no liquids enter the internal components or charging port.

6.2 સંગ્રહ

• Store the machine in a clean, dry environment, away from direct sunlight and extreme temperatures.
• When storing for extended periods, ensure the PowerBolt II is partially charged (around 50%) to preserve battery health.

6.3 બેટરી કેર

• વારંવાર બેટરી સંપૂર્ણપણે ડિસ્ચાર્જ કરવાનું ટાળો.
• બેટરીને ઊંચા તાપમાને ખુલ્લી પાડશો નહીં.
• If the battery shows signs of damage or swelling, discontinue use immediately and dispose of it properly.

7. મુશ્કેલીનિવારણ

If troubleshooting steps do not resolve the issue, please contact FK Irons customer support.

8. સ્પષ્ટીકરણો

9. વોરંટી અને સપોર્ટ

For warranty information, please refer to the official FK Irons webસાઇટ પર જાઓ અથવા તેમની ગ્રાહક સેવાનો સીધો સંપર્ક કરો. વોરંટીના નિયમો અને શરતો પ્રદેશ અને ઉત્પાદન પ્રમાણે બદલાઈ શકે છે.

For technical support, troubleshooting assistance beyond this manual, or inquiries regarding parts and service, please contact FK Irons customer support through their official channels:

• Webસાઇટ: www.fkirons.com
• સંપર્ક માહિતી: સત્તાવાર વેબસાઇટ પર "અમારો સંપર્ક કરો" વિભાગનો સંદર્ભ લો. webફોન નંબર અથવા ઇમેઇલ સપોર્ટ માટેની સાઇટ.
