ઇસુઝુ ફ્યુઅલ ફિલ્ટર યુઝર મેન્યુઅલ

1. પરિચય

This manual provides essential information for the installation, maintenance, and troubleshooting of the Isuzu Fuel Filter, Model 2-94561-104-1. This genuine Isuzu part is designed for specific Isuzu NQR and NRR models equipped with a 5.2L Diesel engine, ensuring optimal performance and longevity for your vehicle's fuel system.

Proper installation and regular maintenance are crucial for the efficient operation of your vehicle and to prevent potential damage to the fuel injection system. Please read this manual thoroughly before proceeding with any installation or maintenance procedures.

2. ઉત્પાદન ઓવરview

The Isuzu Fuel Filter 2-94561-104-1 is a critical component in your vehicle's fuel system, responsible for removing contaminants such as dirt, rust, and debris from the fuel before it reaches the engine. This ensures clean fuel delivery, protecting sensitive engine components and maintaining fuel efficiency.

મુખ્ય લક્ષણો:

• ચોક્કસ ફિટમેન્ટ: Designed to meet original part specifications for Isuzu NQR and NRR 5.2L Diesel engines.
• અત્યંત ટકાઉ: Constructed with robust materials for long-lasting performance.
• Optimal Filtration: Effectively removes impurities to protect the fuel injection system.
• Genuine Isuzu Part: Ensures compatibility and reliability as an original replacement.

Figure 2.1: Isuzu Fuel Filter (Model 2-94561-104-1) shown with accompanying O-rings.

3. ઘટકો સમાવાયેલ

પેકેજ ખોલતી વખતે, ખાતરી કરો કે બધા ઘટકો હાજર છે અને તેમને કોઈ નુકસાન થયું નથી:

• 1 x Isuzu Fuel Filter (Part Number: 2-94561-104-1)
• Associated O-rings/Gaskets (typically included for a complete seal)

આકૃતિ 3.1: ક્લોઝ-અપ view of the O-rings supplied with the fuel filter, essential for a proper seal.

Figure 3.2: Product packaging displaying the part number 2-94561-104-1.

4. સ્થાપન માર્ગદર્શિકા

સલામતી પ્રથમ:

• હંમેશા યોગ્ય વ્યક્તિગત રક્ષણાત્મક ઉપકરણો (PPE) પહેરો, જેમાં સલામતી ચશ્મા અને મોજાનો સમાવેશ થાય છે.
• કામ શરૂ કરતા પહેલા ખાતરી કરો કે એન્જિન બંધ છે અને ઠંડુ છે.
• Work in a well-ventilated area. Fuel is flammable.
• નજીકમાં અગ્નિશામક યંત્ર રાખો.
• Be prepared for fuel spills and have absorbent materials ready.
• આકસ્મિક રીતે શરૂ થવાથી અથવા ઇલેક્ટ્રિક શોર્ટકટથી બચવા માટે વાહનની બેટરી ડિસ્કનેક્ટ કરો.

જરૂરી સાધનો અને સામગ્રી:

• New Isuzu Fuel Filter (Model 2-94561-104-1)
• Wrench set (metric, typically)
• બળતણ માટે ડ્રેઇન પેન
• દુકાનમાં ચીંથરા અથવા શોષક ટુવાલ
• મોજા અને સલામતી ચશ્મા
• Torque wrench (if specific torque values are required by vehicle service manual)

સ્થાપન પગલાં:

1. ફ્યુઅલ ફિલ્ટર શોધો: Refer to your vehicle's service manual for the exact location of the fuel filter. It is typically found along the fuel line, often near the fuel tank or in the engine bay.
2. ઇંધણ પ્રણાલીના દબાણમાં રાહત: Before disconnecting any fuel lines, it is crucial to relieve pressure in the fuel system. Consult your vehicle's service manual for the correct procedure. This often involves removing the fuel pump fuse or relay and cranking the engine until it stalls.
3. Prepare for Fuel Spills: Place a drain pan directly underneath the fuel filter to catch any residual fuel that will spill when the lines are disconnected.
4. ઇંધણ લાઇનો ડિસ્કનેક્ટ કરો: Carefully disconnect the fuel lines from the old filter. Use appropriate wrenches to loosen fittings. Be mindful of fuel spraying out.
5. જૂનું ફિલ્ટર દૂર કરો: Once the lines are disconnected, unmount the old fuel filter from its bracket or housing. Dispose of the old filter and any spilled fuel according to local environmental regulations.
6. નવું ફિલ્ટર ઇન્સ્ટોલ કરો:
   • Ensure the new Isuzu Fuel Filter (2-94561-104-1) is oriented correctly. Many filters have an arrow indicating fuel flow direction.
   • Apply a thin layer of clean diesel fuel or appropriate lubricant to the new O-rings/gaskets before installation to ensure a proper seal.
   • Mount the new filter securely in its housing or bracket.
   • Reconnect the fuel lines, ensuring all connections are tight and secure. Do not overtighten.
7. પ્રાઇમ ધ ફ્યુઅલ સિસ્ટમ: After installation, the fuel system will need to be primed to remove air. This typically involves turning the ignition key to the "ON" position (without starting the engine) for a few seconds, then turning it off, and repeating this process several times. This allows the fuel pump to build pressure and push air out. Some vehicles may have a manual priming pump on the filter housing.
8. લીક્સ માટે તપાસો: Start the engine and carefully inspect all connections around the new fuel filter for any signs of fuel leaks. If leaks are detected, immediately shut off the engine and re-tighten connections.
9. ટેસ્ટ ડ્રાઈવ: Once you confirm there are no leaks, take the vehicle for a short test drive to ensure proper operation.

આકૃતિ 4.1: કોણીય view of the fuel filter and O-rings, showing the overall assembly.

5. જાળવણી

Regular replacement of your fuel filter is essential for maintaining the health and efficiency of your Isuzu diesel engine. A clogged fuel filter can lead to reduced engine performance, poor fuel economy, and potential damage to the fuel pump and injectors.

રિપ્લેસમેન્ટ અંતરાલ:

Consult your vehicle's owner's manual or service schedule for the recommended fuel filter replacement interval. As a general guideline, fuel filters on diesel engines are often recommended for replacement every 15,000 to 30,000 miles, or annually, whichever comes first. However, driving conditions (e.g., dusty environments, poor fuel quality) may necessitate more frequent changes.

Signs of a Clogged Fuel Filter:

• એન્જિન પાવર અથવા પ્રવેગકમાં ઘટાડો
• એન્જિનમાં થડકારા કે સ્ટોલ
• એન્જિન શરૂ કરવામાં મુશ્કેલી
• રફ આળસ
• એન્જિન લાઇટની રોશની તપાસો

આકૃતિ 5.1: બાજુ view of the fuel filter element, showing the pleated filtration media.

6. મુશ્કેલીનિવારણ

If you experience issues after replacing your fuel filter, consider the following common problems and solutions:

7. સ્પષ્ટીકરણો

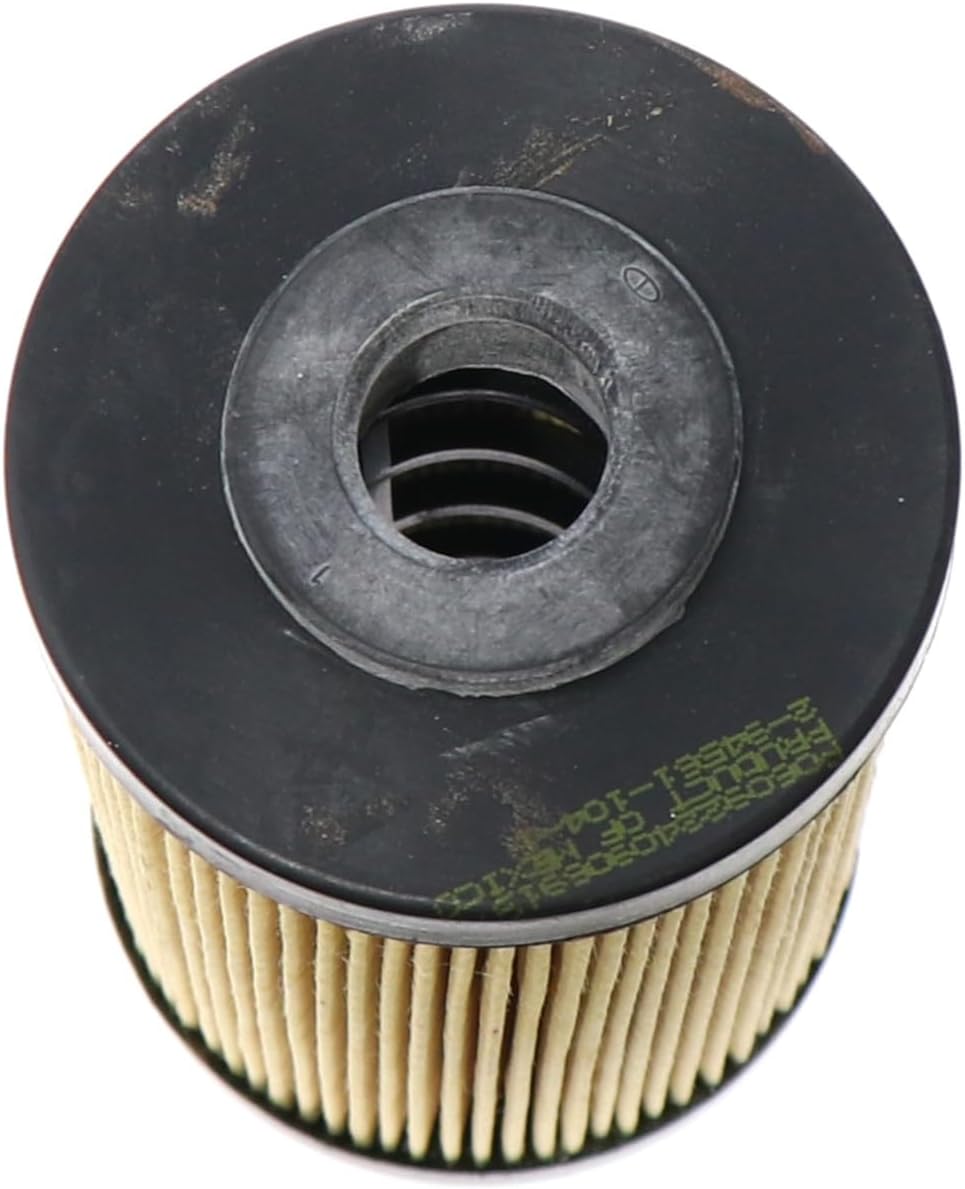

આકૃતિ 7.1: ટોચ view of the fuel filter, showing the inlet/outlet port.

8. વોરંટી અને સપોર્ટ

As a genuine Isuzu part, this fuel filter is covered by Isuzu's standard parts warranty. For specific warranty terms and conditions, please refer to the warranty information provided with your vehicle or contact an authorized Isuzu dealership.

For technical support, installation assistance, or to locate an authorized service center, please contact your local Isuzu dealership or visit the official Isuzu automotive parts website. Always use genuine Isuzu parts for optimal performance and to maintain your vehicle's warranty.

For more information on Isuzu Genuine Parts, you may visit the official Isuzu website or consult your vehicle's service manual.
