પરિચય
This manual provides detailed instructions for the installation, operation, and maintenance of your AUXBEAM 50-inch 288W Straight LED Light Bar. This light bar features 6 lighting modes, including amber, white, and strobe functions, with a memory reset capability. Please read this manual thoroughly before installation and use to ensure proper function and safety.
સલામતી માહિતી
- કોઈપણ વિદ્યુત કાર્ય કરતા પહેલા વાહનની બેટરી હંમેશા ડિસ્કનેક્ટ કરો.
- શોર્ટ સર્કિટ અટકાવવા માટે ખાતરી કરો કે બધા વાયરિંગ કનેક્શન સુરક્ષિત અને યોગ્ય રીતે ઇન્સ્યુલેટેડ છે.
- Mount the light bar securely to prevent it from dislodging during vehicle operation.
- જ્યારે લાઇટ બાર પ્રકાશિત હોય ત્યારે તેમાં સીધો ન જુઓ, કારણ કે તેનાથી આંખને નુકસાન થઈ શકે છે.
- Verify local regulations regarding auxiliary lighting before use on public roads.
- Keep children away from the product and installation area.
પેકેજ સામગ્રી
Image: Contents of the Auxbeam 50-inch LED Light Bar package, including the light bar, mounting brackets, wrenches & screws, DT wiring harness kit, user manual, and an Auxbeam sticker.
- 1x એલઇડી લાઇટ બાર
- 2x માઉન્ટ કરવાનું કૌંસ
- 2x Wrenches & Screws
- 1x DT Wiring Harness Kit
- 1x વપરાશકર્તા માર્ગદર્શિકા
- 1x Auxbeam Sticker
વિશિષ્ટતાઓ
| લક્ષણ | વિગત |
|---|---|
| મોડલ નંબર | ZD000807-CA |
| Dimensions (Light Bar) | Approx. 1270mm (50.0 inches) length |
| શક્તિ | 288W |
| લ્યુમેન આઉટપુટ | 28800 એલએમ |
| એલઇડી ચિપ્સ | 440pcs 3030 chips |
| રંગ તાપમાન | 6000K (સફેદ), 3500K (અંબર) |
| બીમ પેટર્ન | Spot and Flood Combo |
| ભાગtage | 12 વોલ્ટ |
| વોટરપ્રૂફ રેટિંગ | IP68 |
| હાઉસિંગ સામગ્રી | 6063 Die-casting Aluminum |
| લેન્સ સામગ્રી | પોલીકાર્બોનેટ (PC) |
| Mounting Bracket Material | સ્ટેનલેસ સ્ટીલ |
| આયુષ્ય | 50,000 કલાકથી વધુ |
| EMC | Built-in (No electromagnetic interference) |
સ્થાપન માર્ગદર્શિકા
1. લાઇટ બાર માઉન્ટ કરવાનું
Securely attach the provided mounting brackets to your vehicle. The adjustable stainless steel brackets allow for precise positioning of the light bar to direct the beam as needed. Ensure all screws are tightened to prevent vibration and movement.
Image: Close-up of the adjustable mounting bracket, demonstrating its 360-degree adjustment capability for precise light beam direction.
2. વાયરિંગ જોડાણો
Use the included DT wiring harness kit for a plug-and-play installation. Follow these steps for proper connection:
- કનેક્ટ કરો લાલ રેખા (Positive Pole) of the light bar to the positive terminal of your vehicle's battery.
- કનેક્ટ કરો કાળી રેખા (Negative Pole) of the light bar to the negative terminal or a suitable ground point on your vehicle.
- કનેક્ટ કરો પીળી રેખા (Special Line for Lighting Mode) to the corresponding mode positive pole on the wiring harness. This line controls the lighting modes.
- Ensure all connections are secure and waterproof.

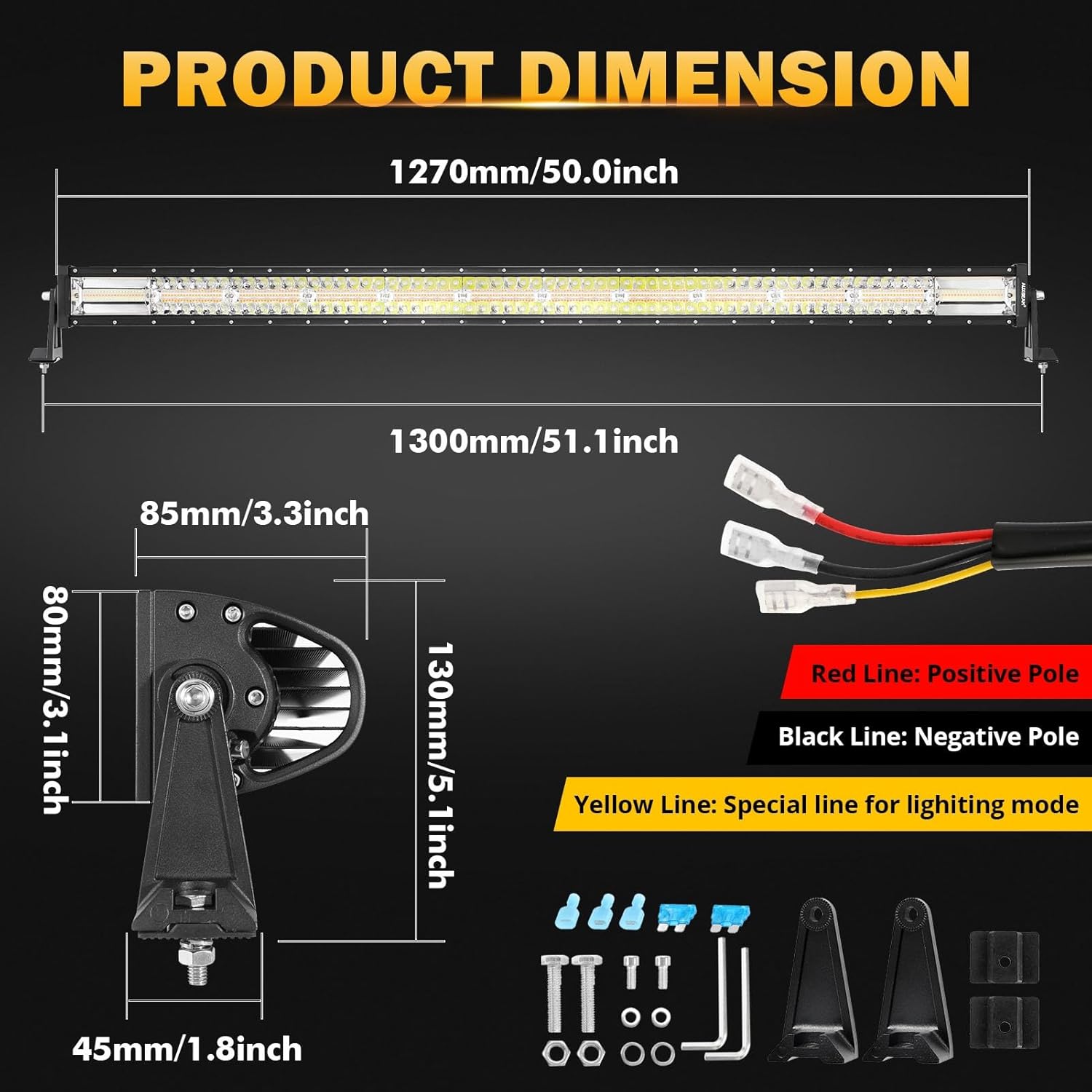

છબી: વિગતવાર view of the light bar's wiring, indicating the Red (Positive), Black (Negative), and Yellow (Mode Control) lines, along with dimensions of the light bar and mounting components.
Video: This video demonstrates the plug-and-play connection process for the light bar's wiring harness, showing how to connect the male and female DT plugs securely.
ઓપરેટિંગ સૂચનાઓ
લાઇટિંગ મોડ્સ
Your AUXBEAM LED Light Bar features 6 distinct lighting modes, easily switchable via the remote control on the wiring harness:
- સફેદ પ્રકાશ: Provides bright, clear illumination for general driving.
- એમ્બર લાઈટ: Offers strong penetration, ideal for fog or dusty conditions.
- Amber & White Light: A combination for enhanced visibility.
- સફેદ સ્ટ્રોબ: Flashing white light for warning or signaling.
- Amber Strobe: Flashing amber light for warning or signaling.
- White & Amber Strobe: Combined flashing for maximum visibility and warning.

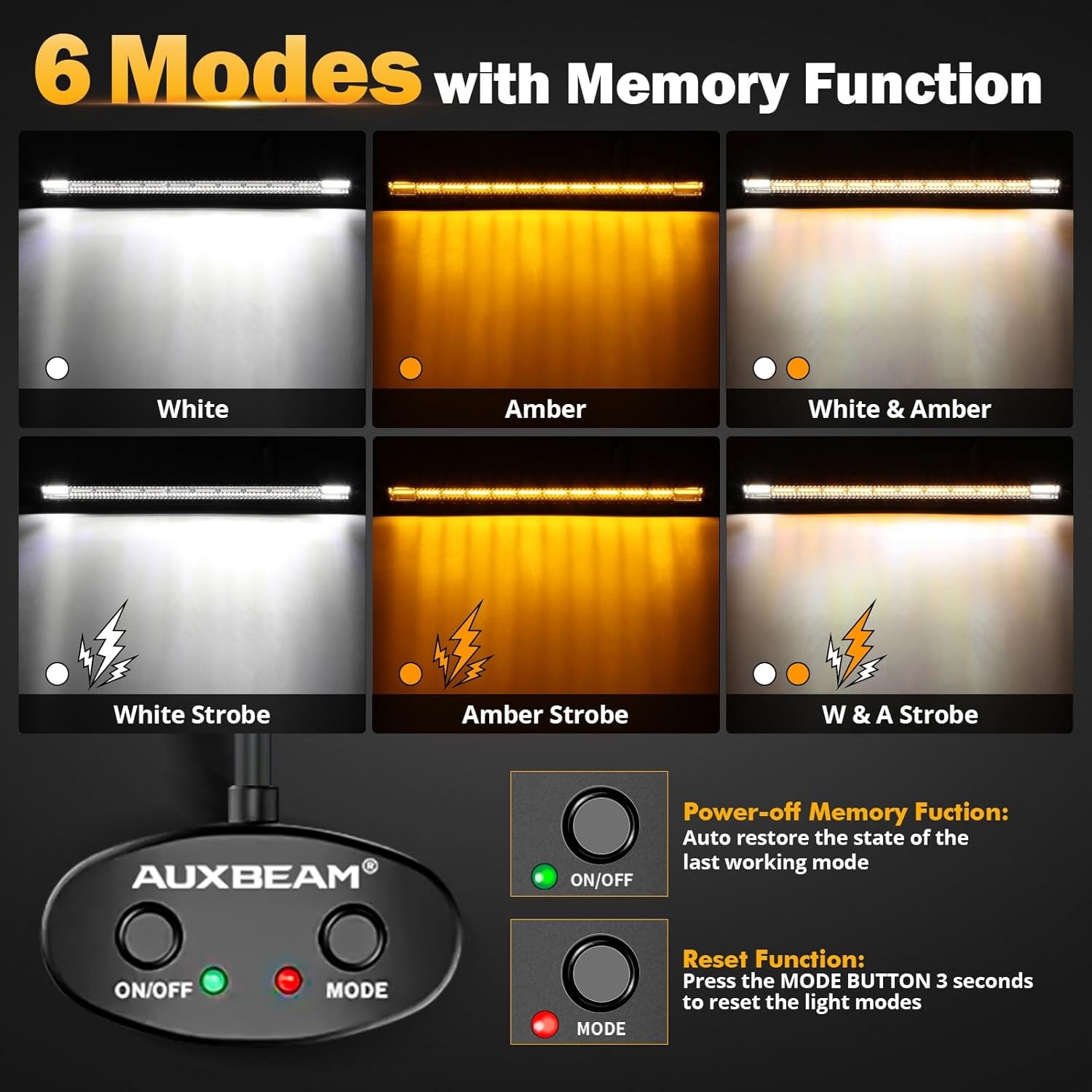

Image: Visual representation of the six distinct lighting modes available on the light bar, controlled by the included remote. Modes include solid white, solid amber, mixed white and amber, and strobe variations of each.
Memory and Reset Function
The light bar is equipped with a memory function that remembers your last used mode when the switch is turned OFF. To restore the light bar to its initial white light mode, press and hold the MODE button on the wiring harness for more than 3 seconds.
Video: This video demonstrates the various lighting modes (white, amber, mixed, and strobe functions) and the memory/reset feature of the light bar, showing how to cycle through modes and reset to white light.
જાળવણી
- Regularly inspect the light bar and mounting hardware for any signs of damage or looseness.
- Clean the lens with a soft cloth and mild soap solution to maintain optimal light output. Avoid abrasive cleaners.
- Check wiring connections periodically for corrosion or wear.
- Ensure the breathable valve (if applicable) is clear of debris to prevent condensation buildup.
મુશ્કેલીનિવારણ
Light Bar Not Illuminating
- Check all wiring connections for proper contact and ensure they are not loose.
- ખાતરી કરો કે વાહનની બેટરી પૂરતી ચાર્જ છે.
- Inspect the fuse in the wiring harness for a blown fuse. Replace if necessary.
- ખાતરી કરો કે સ્વીચ ચાલુ સ્થિતિમાં છે.
Incorrect Lighting Mode or Functionality Issues
- If modes are not switching correctly, ensure the yellow mode control wire is properly connected.
- Try resetting the light bar to white mode by holding the MODE button for 3 seconds.
- જો સમસ્યાઓ ચાલુ રહે, તો ગ્રાહક સપોર્ટનો સંપર્ક કરો.
Condensation Inside the Lens
- Ensure the breathable valve is not obstructed. Clear any debris.
- Condensation typically dissipates with normal use. If it persists, contact customer support.
વોરંટી અને આધાર
AUXBEAM provides a 24-મહિનાની વોરંટી for this product. For any installation questions, product inquiries, or warranty claims, please contact the AUXBEAM customer service team. They offer 24-hour online customer service to assist you.
For further assistance, visit the official AUXBEAM store: AUXBEAM Store
