1. પરિચય
Thank you for choosing the Firecore FIR411G Green Line Laser Level. This professional-grade self-leveling laser tool is designed for precise alignment and leveling tasks, featuring multiple green laser lines and a plumb point. This manual provides essential information for safe operation, setup, maintenance, and troubleshooting to ensure optimal performance and longevity of your device.
1.1 પેકેજ સામગ્રી
કૃપા કરીને ખાતરી કરો કે નીચે સૂચિબદ્ધ બધી વસ્તુઓ તમારા પેકેજમાં શામેલ છે:
- FIR411G Laser Level
- FD20 Laser Detector
- કિટ બોક્સ
- લેસર ચશ્મા
- ટ્રીપોડ કનેક્ટર
- એસી ચાર્જર
- સંચાલન સૂચનાઓ (આ માર્ગદર્શિકા)
Image 1.1: All components included in the Firecore FIR411G laser level kit.
2. સુરક્ષા માર્ગદર્શિકા
This device emits Class 2 laser radiation. Adhere to the following safety precautions to prevent injury:
- લેસર બીમમાં સીધા ન જુઓ. Direct exposure can cause eye damage.
- Avoid pointing the laser beam at people or animals.
- લેસર લેવલને ડિસએસેમ્બલ કરશો નહીં. સમારકામ ફક્ત અધિકૃત સેવા કર્મચારીઓ દ્વારા જ થવું જોઈએ.
- ઉપકરણને બાળકોની પહોંચથી દૂર રાખો.
- Use the provided laser glasses for enhanced visibility, but note they do not offer eye protection against direct beam exposure.
- Operate the device within the specified temperature range (0℃ to +45℃).
3. ઉત્પાદન ઓવરview
The Firecore FIR411G is a versatile laser level featuring four vertical lines, one horizontal line, and a plumb point, all in green for superior visibility. It includes a self-leveling mechanism and a pulse mode for use with the FD20 laser detector.
Image 3.1: The Firecore FIR411G laser level and its accompanying FD20 laser detector.
3.1 મુખ્ય લક્ષણો
- Multi-Line Projection: 4 vertical lines, 1 horizontal line, and 1 plumb point.
- સ્વ-સ્તરીકરણ: Automatic leveling within ±3°.
- પલ્સ મોડ: Extends working range up to 50 meters with the FD20 laser detector.
- 360° ફરતો આધાર: Fine-tuning pivot base for precise adjustments.
- રિચાર્જેબલ લિથિયમ બેટરી: 1750mAh capacity for extended operation.
- ટકાઉ ડિઝાઇન: IP54 waterproof and dustproof rating.
Image 3.2: The FIR411G laser level features a 360-degree rotating base for comprehensive coverage.
4. સેટઅપ
૫.૧ બેટરી ઇન્સ્ટોલેશન અને ચાર્જિંગ
The FIR411G laser level is powered by a rechargeable 1750mAh lithium battery. Ensure the battery is fully charged before first use.
- Locate the battery compartment on the back of the laser level.
- Insert the lithium battery pack, ensuring correct polarity.
- Connect the AC charger to the charging port on the battery pack or directly to the device.
- Allow the battery to charge completely. The charging indicator will show the status.
Note: To prolong battery life, avoid overcharging or completely discharging the battery.
છબી 4.1: પાછળ view of the FIR411G laser level, illustrating the battery compartment and charging port.
૫.૩ લેસર લેવલ માઉન્ટ કરવું
The FIR411G can be placed on a flat surface or mounted using its 5/8" thread.
- સપાટી પર: Place the laser level on a stable, level surface. Use the adjustable feet and built-in bubble level for initial coarse adjustment.
- ટ્રાઇપોડ પર: Attach the laser level to a standard tripod using the 5/8" thread on the bottom of the device. Secure it firmly.
- On a Mounting Rod: Use the tripod connector to attach the laser level to a compatible laser mounting rod.
5. ઓપરેટિંગ સૂચનાઓ
5.1 Powering On/Off and Self-Leveling
- To power on the device, slide the ON/OFF/LOCK switch to the "ON" position. The laser lines will activate.
- The device will automatically attempt to self-level. If the tilt exceeds ±3°, the laser lines will flash rapidly, indicating it is out of range. Adjust the device's position until it self-levels.
- To power off, slide the switch to the "LOCK" position. This also locks the pendulum for safe transport and manual mode operation.
Image 5.1: Detail of the ON/OFF/LOCK switch for controlling the laser level.
5.2 Switching Laser Lines
Press the dedicated buttons on the control panel to cycle through different laser line combinations (e.g., horizontal only, vertical only, all lines, plumb point).
5.3 Pulse Mode with FD20 Laser Detector
For outdoor use or when working over longer distances (up to 50 meters), activate the pulse mode and use the FD20 laser detector.
- With the laser level powered on, press the "Receiver" button (often indicated by a pulse icon) to enter pulse mode. The laser lines may appear dimmer but are optimized for detection.
- Turn on the FD20 laser detector.
- Move the detector along the path of the laser beam. The detector will emit an audible signal and display visual indicators when it locates the laser line.
૬.૪ મેન્યુઅલ મોડ (લોક્ડ લોલક)
When the ON/OFF/LOCK switch is in the "LOCK" position, the pendulum is locked, allowing the device to project tilted lines for applications like stair railings or angled installations. The laser lines will not self-level in this mode.

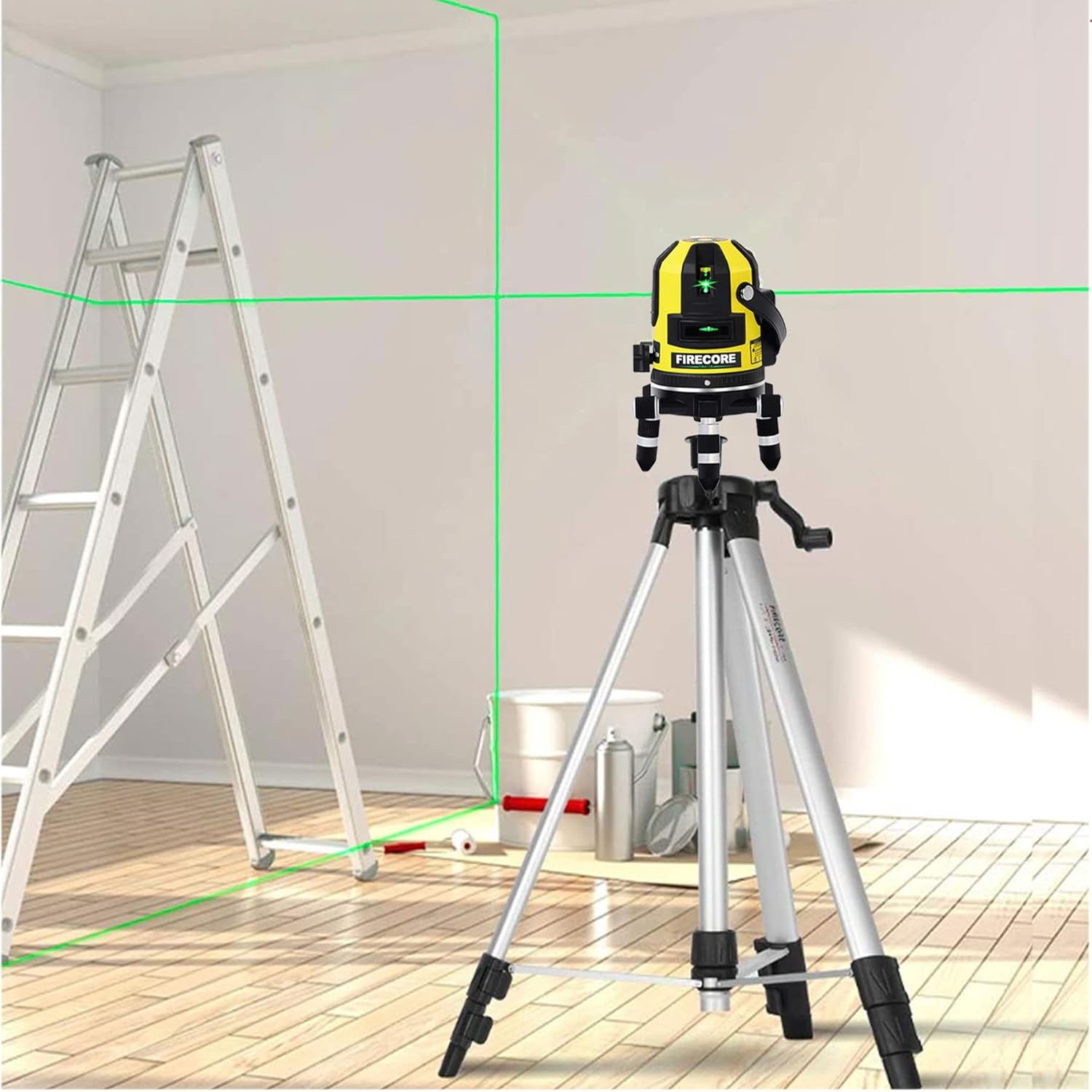

Image 5.2: The FIR411G laser level projecting horizontal and vertical lines in a room setting.
Image 5.3: A user adjusting the laser level mounted on a telescopic pole for precise vertical alignment.
6. જાળવણી
6.1 સફાઈ
Regularly clean the laser level to ensure accurate operation.
- ઉપકરણને સોફ્ટ સાથે સાફ કરો, ડીamp કાપડ કઠોર રસાયણો અથવા ઘર્ષક ક્લીનર્સનો ઉપયોગ કરશો નહીં.
- Keep the laser apertures clean and free from dust or debris. Use a soft brush or compressed air if necessary.
6.2 સંગ્રહ
When not in use, store the laser level in its kit box in a dry, cool place, away from direct sunlight and extreme temperatures.
- Ensure the ON/OFF/LOCK switch is in the "LOCK" position to protect the pendulum during transport and storage.
- If storing for an extended period, charge the battery partially (around 50%) and recharge every few months to maintain battery health.
7. મુશ્કેલીનિવારણ
If you encounter issues with your Firecore FIR411G laser level, refer to the following common problems and solutions:
| સમસ્યા | સંભવિત કારણ | ઉકેલ |
|---|---|---|
| લેસર લાઇનો ઝાંખી હોય છે અથવા દેખાતી નથી. | Low battery; bright ambient light; pulse mode not activated with detector. | Charge the battery; use in lower light conditions; activate pulse mode and use FD20 detector. |
| લેસર લાઇનો ઝડપથી ઝબકી રહી છે. | Device is out of self-leveling range (±3°). | Adjust the device's position to be within the self-leveling range. |
| Laser lines are not level in self-leveling mode. | Device is in manual (locked) mode; calibration issue. | Ensure the switch is in the "ON" position for self-leveling; if problem persists, contact customer support for calibration. |
| FD20 detector not detecting laser. | Pulse mode not activated on laser level; detector battery low; detector not aligned. | Activate pulse mode on the laser level; check/replace detector battery; ensure detector is positioned correctly. |
If the issue persists after attempting these solutions, please contact Firecore customer support for further assistance.
8. ટેકનિકલ વિશિષ્ટતાઓ
Detailed specifications for the Firecore FIR411G Laser Level:
| લક્ષણ | સ્પષ્ટીકરણ |
|---|---|
| લેસર વર્ગ | વર્ગ 2, <1mW |
| લેસર કિરણો | લીલા |
| લેસર પ્રકાર | 515nm (Lines), 650nm (Plumb Points) |
| ચોકસાઈ | H: ±2mm/10M, V: ±2mm/10M |
| સ્વ-સ્તરીકરણ શ્રેણી | ±3° |
| ઓપરેશન તાપમાન | 0℃ થી +45℃ |
| બેટરીનો પ્રકાર | 1750mAh રિચાર્જેબલ લિથિયમ બેટરી |
| સતત કામ કરવાનો સમય | Approx. 5 hours (all lasers on) |
| આઇપી રેટિંગ | IP54 (વોટરપ્રૂફ અને ડસ્ટપ્રૂફ) |
| માઉન્ટિંગ થ્રેડ | ૩/૮" |
| વસ્તુનું વજન | 2.71 કિગ્રા |
| ઉત્પાદન પરિમાણો | 23.3 x 18.3 x 24.3 સેમી |
| સામગ્રી | એક્રેલોનિટ્રિલ બુટાડીએન સ્ટાયરેન |
9. વોરંટી અને ગ્રાહક સપોર્ટ
Firecore products are manufactured to high-quality standards. For warranty information, service, or technical support, please refer to the warranty card included in your package or contact Firecore customer service through the official website or your point of purchase. Please have your model number (FIR411G) and purchase date available when contacting support.
