Bimar HP129 Electric Column Heater User Manual

1. પરિચય

Thank you for choosing the Bimar HP129 Electric Column Heater. This manual provides essential information for the safe and efficient operation of your appliance. Please read it thoroughly before first use and retain it for future reference. This product is designed for heating indoor domestic environments up to 20 m² and is suitable for properly insulated spaces as a supplementary energy-saving heater.

2. સલામતી સૂચનાઓ

To prevent injury or damage, always observe the following safety precautions:

• Ensure the heater is placed on a stable, level surface to prevent tipping. The appliance includes an anti-tip switch for safety.
• Do not cover the heater or obstruct its air inlets and outlets. Overheating can occur, activating the integrated safety device.
• Keep the heater away from water, moisture, and flammable materials such as curtains, furniture, or paper.
• Do not use the heater in dusty environments or where extremely volatile materials are present.
• Always unplug the heater before cleaning or moving it.
• Do not insert any objects into the heater's openings.
• આ ઉપકરણ શારીરિક, સંવેદનાત્મક અથવા માનસિક ક્ષમતાઓ અથવા અનુભવ અને જ્ઞાનની અછત ધરાવતી વ્યક્તિઓ (બાળકો સહિત) દ્વારા ઉપયોગ માટે બનાવાયેલ નથી, સિવાય કે તેઓને તેમની સુરક્ષા માટે જવાબદાર વ્યક્તિ દ્વારા ઉપકરણના ઉપયોગ અંગે દેખરેખ અથવા સૂચના આપવામાં આવી હોય. .
• બાળકો એ ઉપકરણ સાથે રમતા નથી તેની ખાતરી કરવા માટે તેમની દેખરેખ રાખવી જોઈએ.

3. ઉત્પાદન ઓવરview

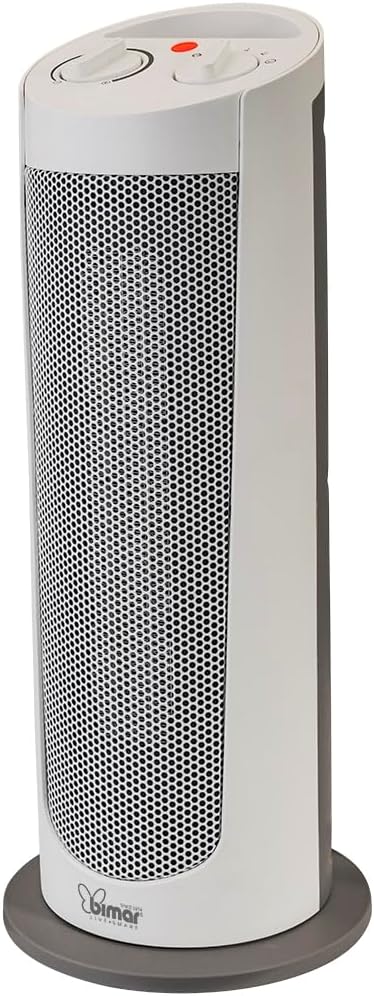

The Bimar HP129 is an electric column heater featuring PTC ceramic resistance for efficient heating. It includes an aluminum propeller for effective and quiet ventilation, and a plastic body with an integrated handle for easy transport.

નિયંત્રણો

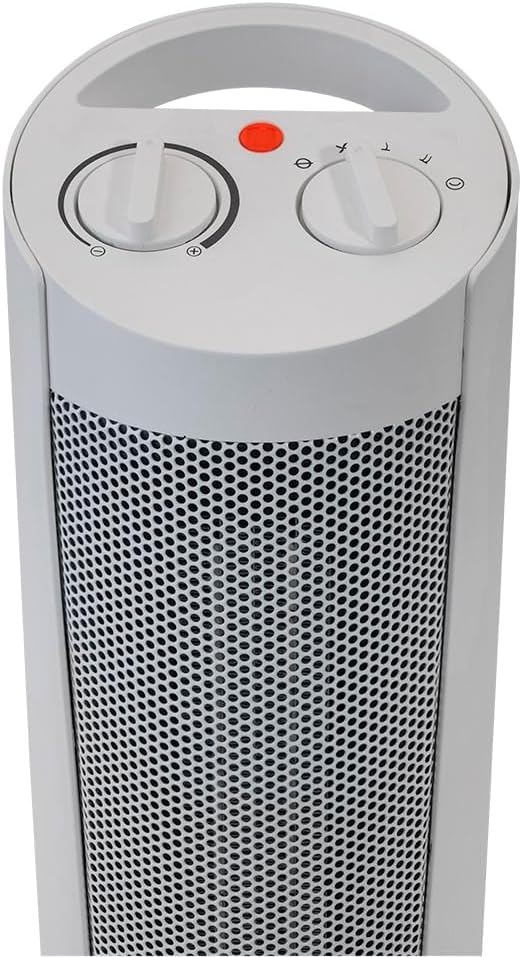

The heater features two main control dials located on the top panel:

• Power Selector Dial: Controls the operating mode (Off, Fan only, 1000W warm air, 2000W very hot air with oscillation).
• થર્મોસ્ટેટ ડાયલ: ઇચ્છિત ઓરડાના તાપમાનને સમાયોજિત કરે છે.

4. સેટઅપ

Before initial use, follow these steps:

1. Unpack the heater and place it on a firm, level, and heat-resistant surface.
2. Ensure there is adequate clearance around the heater (at least 50 cm from walls, furniture, and curtains).
3. Plug the heater into a suitable electrical outlet (220-240V ~ 50Hz).
4. પ્રથમ ઉપયોગ: Upon first use, operate the heater for at least 10-15 minutes to eliminate the 'new smell'. During this period, ensure the room is well-ventilated.

5. ઓપરેટિંગ સૂચનાઓ

પાવર સેટિંગ્સ

Use the Power Selector Dial to choose your desired operating mode:

• Off (0): Turns the heater off.
• Fan Only (Fan icon): Activates the fan without heating, providing air circulation.
• Warm Air (1000W): Provides 1000W of heating power.
• Very Hot Air (2000W) with Oscillation: Provides 2000W of heating power and activates the automatic right/left oscillation function for wider heat distribution.

થર્મોસ્ટેટ નિયંત્રણ

The thermostat dial allows you to set the desired room temperature. Turn the dial clockwise to increase the temperature setting and counter-clockwise to decrease it. The heater's PTC technology automatically adjusts power consumption based on the ambient temperature, providing maximum power at low temperatures and reducing it as the room warms up.

The room thermostat regulates the device's operation: it runs continuously until the set temperature is reached, then cycles on and off at intervals to maintain the temperature constant. An indicator light on the control panel illuminates when the heater is actively heating and turns off when the set temperature is reached.

6. જાળવણી

નિયમિત જાળવણી તમારા હીટરની શ્રેષ્ઠ કામગીરી અને આયુષ્ય સુનિશ્ચિત કરે છે.

સફાઈ

1. હીટરને હંમેશા પાવર આઉટલેટમાંથી અનપ્લગ કરો અને સાફ કરતા પહેલા તેને સંપૂર્ણપણે ઠંડુ થવા દો.
2. સોફ્ટ સાથે બાહ્ય સપાટીઓ સાફ કરો, ડીamp cloth. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the plastic housing.
3. હીટરને પાણીમાં કે અન્ય કોઈ પ્રવાહીમાં બોળશો નહીં.
4. Periodically clean the air intake and outlet grilles with a soft brush or vacuum cleaner to remove dust and debris.

સંગ્રહ

જ્યારે ઉપયોગમાં ન હોય, ત્યારે હીટરને ઠંડી, સૂકી જગ્યાએ, પ્રાધાન્યમાં તેના મૂળ પેકેજિંગમાં, સીધા સૂર્યપ્રકાશ અને ભેજથી દૂર રાખો.

7. મુશ્કેલીનિવારણ

If you encounter issues with your Bimar HP129 heater, refer to the following common problems and solutions:

• હીટર ચાલુ થતું નથી:
  • તપાસો કે પાવર કોર્ડ કાર્યરત ઇલેક્ટ્રિકલ આઉટલેટમાં સુરક્ષિત રીતે પ્લગ થયેલ છે કે નહીં.
  • Ensure the Power Selector Dial is not set to 'Off' (0).
  • Verify that the anti-tip switch on the base of the heater is engaged (heater is on a flat surface).
• Heater stops operating unexpectedly:
  • The integrated safety device may have activated due to overheating. Unplug the heater, allow it to cool down for at least 30 minutes, and check for any obstructions blocking the air inlets or outlets.
  • If the heater stops after reaching the set temperature and does not restart automatically, try turning it off, waiting approximately 5 minutes, and then turning it back on. If the issue persists, contact customer support.
• Insufficient heating:
  • Ensure the thermostat dial is set to a higher temperature than the current room temperature.
  • Check that the Power Selector Dial is set to 1000W or 2000W, not just 'Fan Only'.
  • Confirm the room size is within the recommended 20 m² for effective heating.

For problems not listed here, or if solutions do not resolve the issue, please contact Bimar customer support.

8. સ્પષ્ટીકરણો

9. વોરંટી અને સપોર્ટ

For warranty information, technical support, or spare parts availability, please refer to the documentation provided with your purchase or contact Bimar customer service directly. Contact details can typically be found on the manufacturer's official webસાઇટ પર અથવા ઉત્પાદન પેકેજિંગ પર.
