પરિચય
This manual provides detailed instructions for the safe and efficient operation, maintenance, and troubleshooting of the AUTOOL AST 603 Automatic Brake Bleeder Kit. Please read this manual thoroughly before using the device to ensure proper function and to prevent damage or injury.
The AUTOOL AST 603 is an automatic brake fluid exchanger designed for one-person operation, featuring a built-in air pump and adjustable pressure for efficient and air-free brake fluid replacement in gasoline and diesel vehicles.
Figure 1: AUTOOL AST 603 Automatic Brake Bleeder Kit and included accessories.
સલામતી સાવચેતીઓ
- Always wear safety goggles to minimize the risk of injury from splashing brake fluid.
- Wear suitable, protective gloves to minimize the risk of injury caused by skin contact with brake fluid.
- ખાતરી કરો કે કાર્યક્ષેત્ર સારી રીતે વેન્ટિલેટેડ છે.
- Keep the device away from open flames or heat sources.
- Do not attempt to modify the device. Use only original accessories and parts.
- Ensure the power supply matches the device's requirements (AC 110V).
- Before starting, ensure all connections are secure to prevent leaks.
ઉત્પાદન ઘટકો અને લક્ષણો
The AUTOOL AST 603 is designed with user-friendly components for efficient brake fluid exchange.
Figure 2: Key components of the AUTOOL AST 603.
- Power Aviation Plug: Easily remove and replace the power cable.
- Screw Column Quick Connector: For easy removal and replacement of the filling hose.
- પ્રેશર ગેજ: Provides real-time monitoring of the replacement status and pressure within the system.
- પ્રેશર એડજસ્ટમેન્ટ નોબ: Allows real-time control of pressure levels, adjustable from 0.7-2.5 bar.
- Indicator Lights (WORK/POWER): Intuitive display of operational status.
- Metal Hose Connector: Precision craftsmanship with excellent sealing performance.
- Built-in Air Pump: Eliminates the need for an external air compressor.
- 1.5L Waste Oil Bottle: Included for collecting old brake fluid.

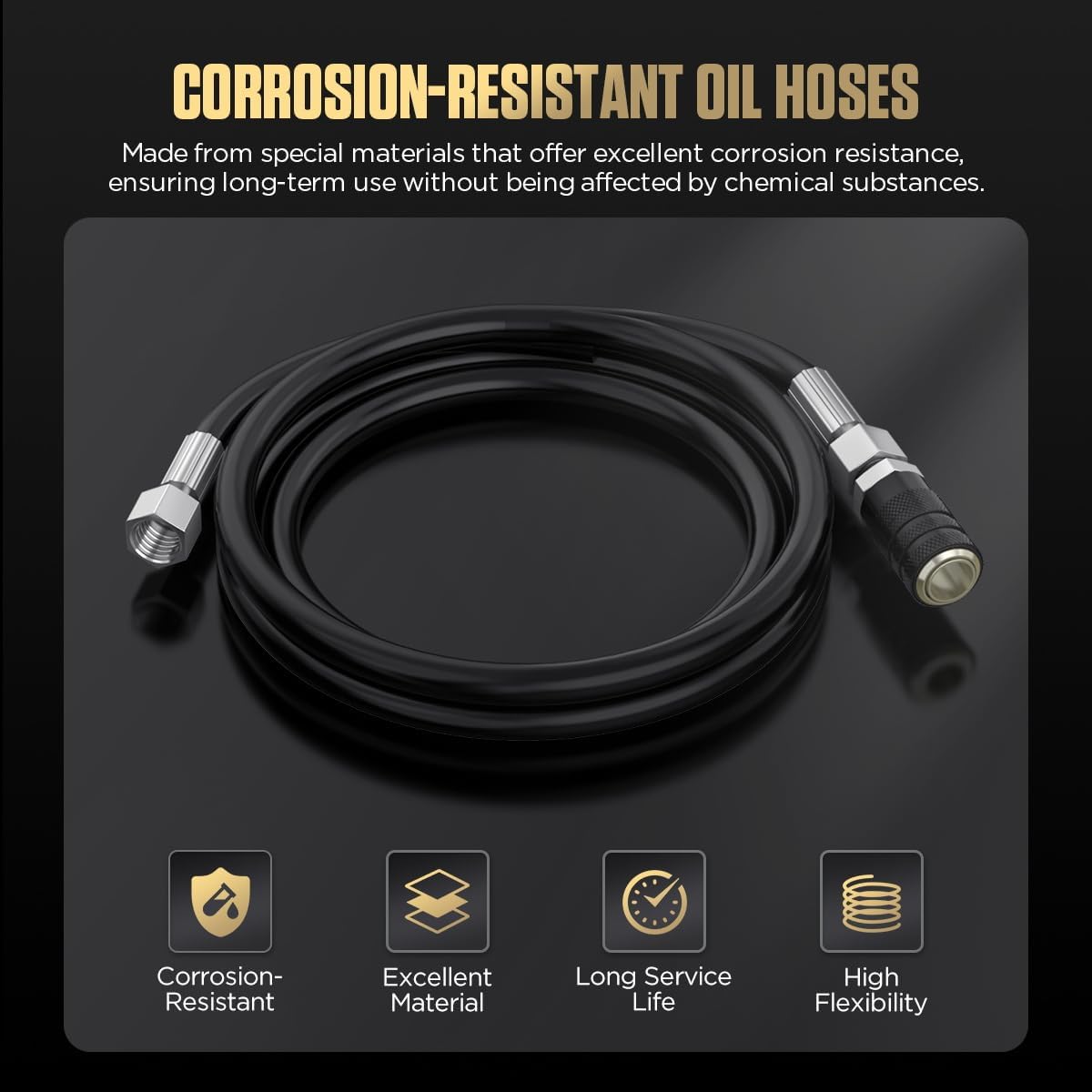

Figure 3: Corrosion-resistant oil hoses for durability and long service life.
સેટઅપ
- ઉપકરણને અનપેક કરો: Carefully remove the AUTOOL AST 603 and all accessories from the packaging.
- નુકસાન માટે તપાસ કરો: Check the device and all components for any signs of shipping damage. Do not use if damaged.
- કાર્યક્ષેત્ર તૈયાર કરો: Ensure a clean, well-lit, and well-ventilated area. Position the vehicle on a level surface and engage the parking brake.
- પાવર કનેક્ટ કરો: Connect the power cable to the device and then to a standard AC 110V power outlet.
- Initial Purging (First Startup): For the first use, it is essential to fill the equipment's tubing with new brake fluid to achieve an air-free bleeding process. This purges any air from the internal lines of the AST 603 itself.
- Select Appropriate Adapter: Choose the correct adapter for your vehicle's brake fluid reservoir. The kit includes adapters for various vehicle models, including Mercedes-Benz, BMW, Volkswagen, Skoda, Volvo, Land Rover, Jaguar, Ford, Audi, Tesla, and more.
Figure 4: Illustration of the air-free filling process for the equipment's tubing.
આકૃતિ 5: ઉદાamples of brake fluid reservoir adapters included with the kit.

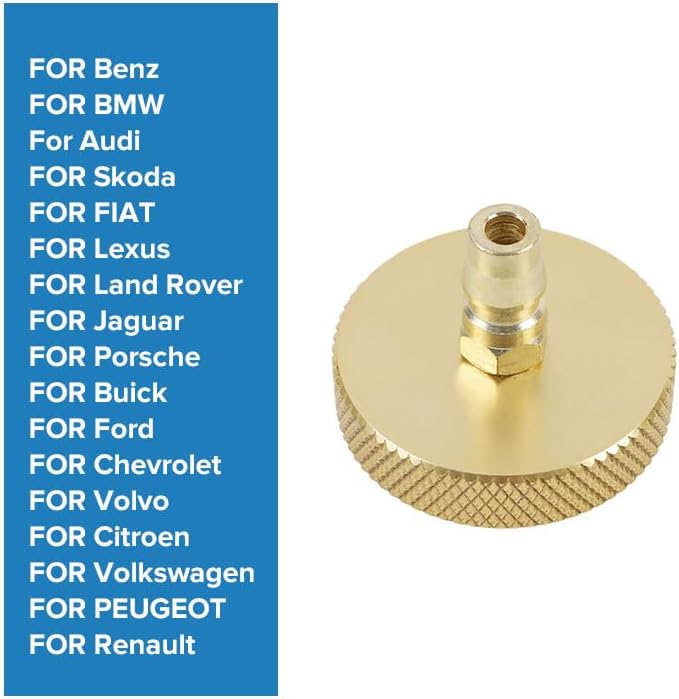

Figure 6: A list of compatible vehicle brands for the included adapters.
ઓપરેટિંગ સૂચનાઓ
The AUTOOL AST 603 allows for efficient, one-person brake fluid exchange without the need to press the brake pedal.
Figure 7: Visual guide for the brake fluid exchange process.
- Prepare New Brake Fluid: Place the pressure balance hose and the oil suction hose into the new brake fluid bottle. Ensure the bottle is stable.
- Connect to Reservoir: Connect the filling hose to the adapter fitting, then securely attach the adapter to the vehicle's brake fluid reservoir. Ensure the machine's internal lines are purged before connecting to the vehicle.
- Connect Recovery Bottle: Connect the recovery fluid bottle (waste oil bottle) to the brake wheel cylinder bleed screw.
- કામગીરી શરૂ કરો: Turn on the power switch on the AST 603. Press and hold the "START" button to begin the brake fluid exchange operation.
- મોનિટર દબાણ: Adjust the pressure using the pressure adjustment knob as needed (0.7-2.5 bar). Monitor the pressure gauge to ensure stable operation.
- Monitor Fluid Level: The device features smart liquid level monitoring. Filling automatically stops when the new fluid bottle is empty, preventing air from entering the brake system lines.
- જૂના પ્રવાહીને કાઢી નાખો: Open the bleed screw on the wheel cylinder to allow the old brake fluid to drain into the recovery bottle. Continue draining until new, clean brake fluid emerges.
- Repeat for All Wheels: Repeat the process for each wheel, typically starting with the wheel furthest from the master cylinder (e.g., rear passenger, rear driver, front passenger, front driver).
- કામગીરી સમાપ્ત કરો: Once all wheels are bled, close the bleed screws, turn off the AST 603, and disconnect all hoses.
- પ્રવાહી સ્તર તપાસો: Verify the brake fluid level in the vehicle's reservoir and top up if necessary.
Figure 8: The smart liquid level monitoring system ensures automatic stop when fluid is low.
The AST 603's pulsating brake fluid exchange technology effectively avoids the generation of air bubbles during the filling process, optimizing or eliminating the need for manual air bleeding.
Figure 9: Smart control technology allows for efficient, one-person operation without pressing the brake pedal.
જાળવણી
- ઉપયોગ કર્યા પછી સાફ કરો: After each use, clean the exterior of the device and all hoses with a damp cloth. Ensure no brake fluid residue remains on the components.
- Empty Waste Bottle: Always empty the waste oil bottle after use and dispose of the old brake fluid responsibly according to local regulations.
- યોગ્ય રીતે સ્ટોર કરો: Store the AUTOOL AST 603 in a dry, clean environment, away from direct sunlight and extreme temperatures.
- Check Hoses and Connectors: Regularly inspect hoses and connectors for any signs of wear, cracks, or damage. Replace if necessary to ensure proper sealing and prevent leaks.
- ફિલ્ટર જાળવણી: Refer to the specific product documentation for any internal filter cleaning or replacement schedules.
મુશ્કેલીનિવારણ
| સમસ્યા | સંભવિત કારણ | ઉકેલ |
|---|---|---|
| ઉપકરણ પાવર ચાલુ કરતું નથી. | No power supply; loose power cable; blown fuse. | Check power outlet; ensure power cable is securely connected; check and replace fuse if necessary. |
| No fluid flow or low pressure. | Insufficient brake fluid in supply bottle; clogged hose/filter; loose connection; pressure adjustment too low. | Refill brake fluid; check hoses for kinks or blockages; tighten all connections; increase pressure using the adjustment knob. |
| Air bubbles in new fluid. | Initial purging not performed; loose connection at reservoir or bleed screw. | Ensure initial purging of the machine's lines was done; re-check all connections for tightness. |
| Fluid leaks from connections. | Loose connections; damaged O-rings or hoses; incorrect adapter. | Tighten all connections; inspect and replace damaged components; ensure correct adapter is used and properly seated. |
If the problem persists after attempting these solutions, please contact AUTOOL customer support.
વિશિષ્ટતાઓ
| વિશેષતા | મૂલ્ય |
|---|---|
| મોડલ | AST 603 |
| બ્રાન્ડ | AUTOOL |
| ઉત્પાદક | AUTOOL |
| વસ્તુનું વજન | 13.47 પાઉન્ડ |
| પેકેજ પરિમાણો | 14.5 x 12 x 12 ઇંચ |
| પાવર સપ્લાય | AC 110V |
| એડજસ્ટેબલ પ્રેશર રેન્જ | 0.7-2.5 બાર |
| Waste Oil Bottle Capacity | 1.5L |
| આઉટપુટ ફ્લો | ≤1.5L/મિનિટ |
વોરંટી અને આધાર
વોરંટી: AUTOOL provides a three-year warranty for damages caused by non-human factors. During this period, AUTOOL promises to resend parts for free.
ગ્રાહક આધાર: For any inquiries, technical assistance, or warranty claims, please contact AUTOOL customer support. We aim to reply as soon as possible within 24 hours.
You can find contact information on the official AUTOOL webસાઇટ અથવા તમારા ખરીદી પ્લેટફોર્મ દ્વારા.
Visit the AUTOOL Store: AUTOOL Official Store
