1. પરિચય
Thank you for choosing the SZELAM Projection Alarm Clock. This device combines a digital alarm clock with a rotatable time projector, an RGB night light, and convenient USB charging ports. This manual provides detailed instructions for setup, operation, and maintenance to ensure optimal performance and longevity of your product.
Image 1.1: The SZELAM Projection Alarm Clock displaying time on its mirror surface and projecting it onto a wall, with its RGB base light illuminated.
2. પેકેજ સામગ્રી
- SZELAM Projection Alarm Clock
- યુએસબી પાવર કેબલ
- વપરાશકર્તા માર્ગદર્શિકા
3. ઉત્પાદન ઓવરview
Familiarize yourself with the various components and features of your alarm clock.

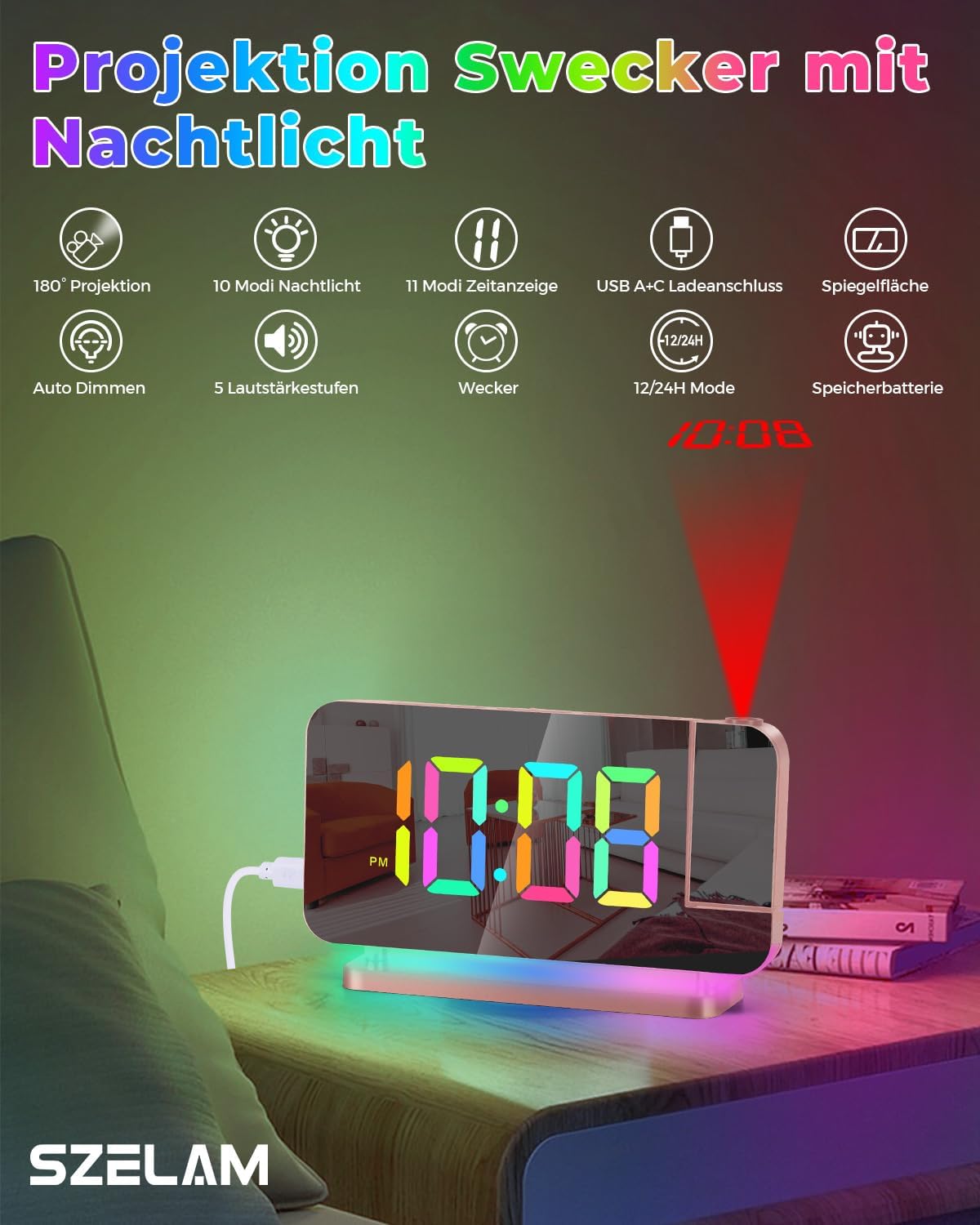

છબી ૨.૧: એક ઓવરview of the alarm clock's features, including 180° projection, 10 night light modes, 11 time display modes, USB A+C charging ports, mirror surface, auto dimming, 5 volume levels, alarm function, 12/24H mode, and backup battery capability.
4. સેટઅપ
4.1 પાવર કનેક્શન
- Connect the provided USB power cable to the USB-C input port on the back of the alarm clock.
- Plug the other end of the USB cable into a standard USB power adapter (not included) and then into a wall outlet.
- The clock display will illuminate, indicating it has power.
૨.૩ પ્રારંભિક સમય સેટિંગ
Upon initial power-up, the clock may display a default time. Refer to the 'Operating Instructions' section for detailed steps on setting the correct time and date.
5. ઓપરેટિંગ સૂચનાઓ
5.1 Time Display Settings
The clock features an 11-color RGB digital display with adjustable brightness.
Image 5.1: The clock display showcasing 11 different color modes for the time digits, along with options for auto dimming and 6 brightness levels.
- સેટિંગ સમય: Press the 'SET' button to enter time setting mode. Use the '+' and '-' buttons to adjust hours and minutes. Press 'SET' again to confirm each step.
- 12/24 કલાકનું ફોર્મેટ: In time setting mode, press the '12/24H' button to switch between 12-hour (with AM/PM indicator) and 24-hour formats.
- ડિસ્પ્લે બ્રાઇટનેસ: Press the 'DIMMER' button repeatedly to cycle through 6 brightness levels or activate auto-dimming mode.
- Display Color Modes: Press the 'COLOR' button to cycle through 4 dynamic RGB colors and 7 fixed color modes for the digital display.
5.2 એલાર્મ સેટિંગ્સ
- એલાર્મ સેટ કરી રહ્યું છે: Press the 'ALARM' button to enter alarm setting mode. Use '+' and '-' to set the desired alarm time. Press 'ALARM' again to confirm.
- એલાર્મ સક્રિય/નિષ્ક્રિય કરી રહ્યા છીએ: Press the 'ALARM' button briefly outside of setting mode to toggle the alarm on or off. An alarm icon will appear/disappear on the display.
- સ્નૂઝ ફંક્શન: When the alarm sounds, press the 'SNOOZE' button (usually a large button on top) to temporarily silence it for a set duration (e.g., 9 minutes). The alarm will sound again after the snooze period.
- બંધ થવાનું એલાર્મ: To stop the alarm completely, press any other button (except 'SNOOZE') when it is sounding.
5.3 Projection Function
The clock features a 180° rotatable projector to display time on your wall or ceiling.
Image 5.2: The 180° rotatable projector lens and examples of the four adjustable brightness levels for the projected time (Off, Dimmed, Medium, Bright).
- Activating Projection: Locate the projector lens on the side of the clock. Press the 'PROJECTOR' button to turn the projection on/off.
- પ્રક્ષેપણ કોણ ગોઠવવું: Manually rotate the projector lens up to 180° to direct the time display to your desired surface (wall or ceiling).
- Adjusting Projection Brightness: Press the 'PROJECTOR' button repeatedly to cycle through 4 brightness levels for the projected time.
- Flipping Projected Time: If the projected time appears upside down, press the 'FLIP' button (often combined with the projector button) to rotate the display 180°.
૫.૫ નાઇટ લાઇટ ઓપરેશન
The alarm clock includes a built-in LED night light with multiple color modes.
Image 5.3: The clock's base illuminated with various dynamic RGB night light modes, demonstrating the 10 available color options and 5 adjustable brightness levels.
- ચાલુ/બંધ કરવું: Press the 'LIGHT' button to turn the night light on or off.
- બદલાતા રંગો: Press the 'LIGHT' button repeatedly to cycle through 3 dynamic RGB colors and 7 fixed color modes.
- તેજને સમાયોજિત કરવી: Use the '+' and '-' buttons when the night light is active to adjust its brightness through 5 levels.
5.5 યુએસબી ચાર્જિંગ પોર્ટ
The clock is equipped with two USB output ports for charging external devices.

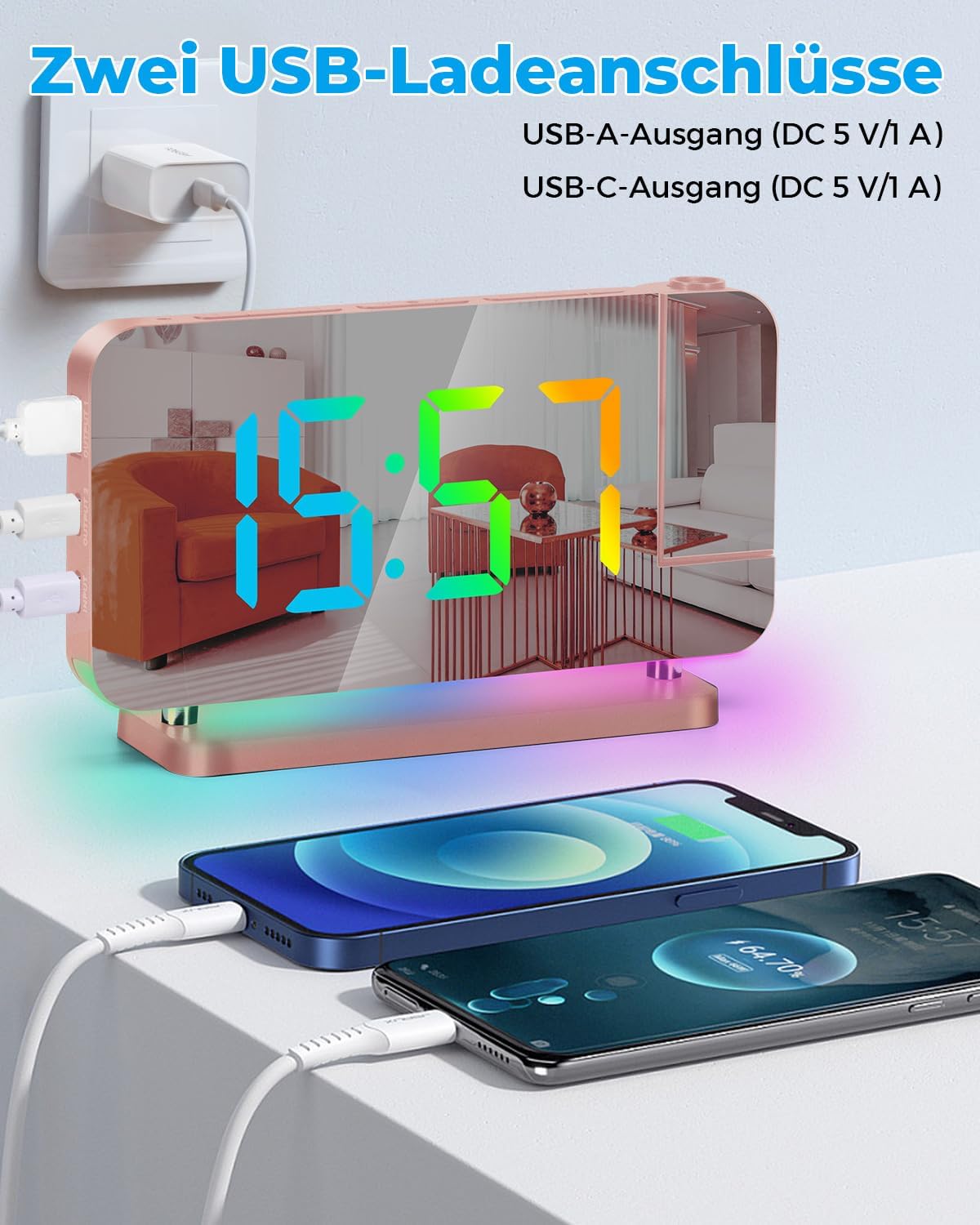

Image 5.4: The alarm clock featuring two USB charging ports, one USB-A and one USB-C, both providing 5V/1A output, shown charging two smartphones simultaneously.
- The clock includes one USB Type-C output port and one USB Type-A output port.
- Connect your electronic devices (e.g., smartphone, tablet) to these ports using their respective charging cables.
- Each port provides a 5V/1A output, allowing you to charge two devices simultaneously.
5.6 Mirror Display Function
The 7.4-inch LED display surface also functions as a mirror.
Image 5.5: The 7.4-inch LED mirror display of the alarm clock being used as a convenient makeup mirror.
- The acrylic mirror design allows the clock to double as a makeup mirror when not actively displaying time or when the display is dimmed.
6. જાળવણી
- સફાઈ: Use a soft, dry cloth to clean the surface of the clock. For stubborn marks on the mirror display, lightly dampen the cloth with water and wipe gently. Avoid abrasive cleaners or solvents.
- પ્લેસમેન્ટ: ઘડિયાળને સીધા સૂર્યપ્રકાશ, વધુ પડતી ગરમી અથવા ભેજથી દૂર સ્થિર, સપાટ સપાટી પર મૂકો.
- શક્તિ: Always use the provided USB cable and a compatible power adapter. Disconnect power during thunderstorms or when not in use for extended periods.
7. મુશ્કેલીનિવારણ
| સમસ્યા | સંભવિત કારણ | ઉકેલ |
|---|---|---|
| Clock display is off or flickering. | પાવર નથી કે કનેક્શન ઢીલું છે. | Ensure the USB cable is securely connected and the power adapter is plugged into a working outlet. |
| Projection is blurry or too dim. | Incorrect distance or brightness setting. | Adjust the distance of the clock from the projection surface (effective distance 1.64-11.4 feet / 0.5-3m). Press the 'PROJECTOR' button to increase brightness. |
| એલાર્મ વાગતો નથી. | એલાર્મ સક્રિય થયેલ નથી અથવા ખોટી રીતે સેટ થયેલ નથી. | Verify the alarm time is set correctly and the alarm icon is visible on the display. |
| USB charging ports are not working. | ઉપકરણ સુસંગત નથી અથવા કેબલ સમસ્યા છે. | Ensure your device is compatible with 5V/1A charging. Try a different USB cable. Confirm the clock is powered on. |
| Time display colors are not changing. | ખોટો મોડ પસંદ કરેલ છે. | Press the 'COLOR' button repeatedly to cycle through the available color modes. |
8. સ્પષ્ટીકરણો
| લક્ષણ | વિગત |
|---|---|
| બ્રાન્ડ | SZELAM |
| ડિસ્પ્લે પ્રકાર | Digital LED (7.4-inch) |
| પ્રોજેક્શન | 180° Rotatable, 4 Brightness Levels, 0.5-3m Effective Distance |
| Time Display Colors | 11 modes (4 dynamic RGB + 7 fixed), 6 Brightness Levels + Auto Dimming |
| નાઇટ લાઇટ કલર્સ | 10 modes (3 dynamic RGB + 7 fixed), 5 Brightness Levels |
| ચાર્જિંગ પોર્ટ | 1x USB-C Output (5V/1A), 1x USB-A Output (5V/1A) |
| પાવર સ્ત્રોત | કોર્ડેડ ઇલેક્ટ્રિક |
| સામગ્રી | એક્રેલિક |
| પરિમાણો (અંદાજે) | ચોક્કસ પરિમાણો માટે ઉત્પાદન પેકેજિંગનો સંદર્ભ લો. |
| વજન | 1 Ounce (approximate) |
| રૂમનો પ્રકાર | બેડરૂમ |
9. વોરંટી અને સપોર્ટ
This product is covered by a standard manufacturer's warranty. For specific warranty details, please refer to the warranty card included with your purchase or contact SZELAM customer support. If you encounter any issues or have questions regarding your SZELAM Projection Alarm Clock, please reach out to our customer service team for assistance.
Contact information for support can typically be found on the product packaging or the official SZELAM webસાઇટ
