AUTOOL Two-Way Articulating Borescope

1. પરિચય

The AUTOOL SVB302 Two-Way Articulating Borescope is a professional inspection camera designed for detailed visual inspection in hard-to-reach areas. It features a highly flexible probe with a two-way articulating lens, adjustable LED lighting, and compatibility with both Android and iOS devices for real-time viewing and recording. This manual provides essential information for the safe and effective use of your borescope.

The AUTOOL SVB302 borescope is widely used for auto inspection, mechanical maintenance, construction industry, power facilities, chemical pipelines, and security monitoring.

2. મુખ્ય લક્ષણો

• Two-Way Articulating Lens: The camera probe offers 210° two-way articulation, allowing for comprehensive inspection of complex internal structures.
• હાઇ-ડેફિનેશન ઇમેજિંગ: Captures clear images and videos with 1280*720 resolution and a 70° angle of view.
• Adjustable LED Illumination: Equipped with 6 super bright LEDs with 3 adjustable brightness levels to ensure clear visibility in dark environments.
• IP67 Waterproof Probe: The 1-meter flexible metal cable and camera are IP67 rated, making them suitable for use in wet or submerged conditions.
• વ્યાપક સુસંગતતા: Supports both Android and iOS systems, connecting via USB 2.0 to your smartphone for real-time display.
• તાપમાન સંરક્ષણ: Features smart protection that cuts video signals in extreme heat to prevent damage to the device.
• લાંબી બેટરી જીવન: Integrated 2000mAh rechargeable Lithium-ion battery provides 2-3 hours of continuous operating time.
• બહુ-ભાષા સપોર્ટ: User interface supports English, French, German, Italian, Spanish, Chinese, and Japanese.

વિગતવાર view of the 210° articulating camera, showing its 0.25-inch diameter, 1.18-3.94 inch depth of field, 70° angle of view, and 1.38-inch bending radius.

Illustration of the 6 high-intensity illumination lights and their three adjustable brightness levels (Level 1, Level 2, Level 3).

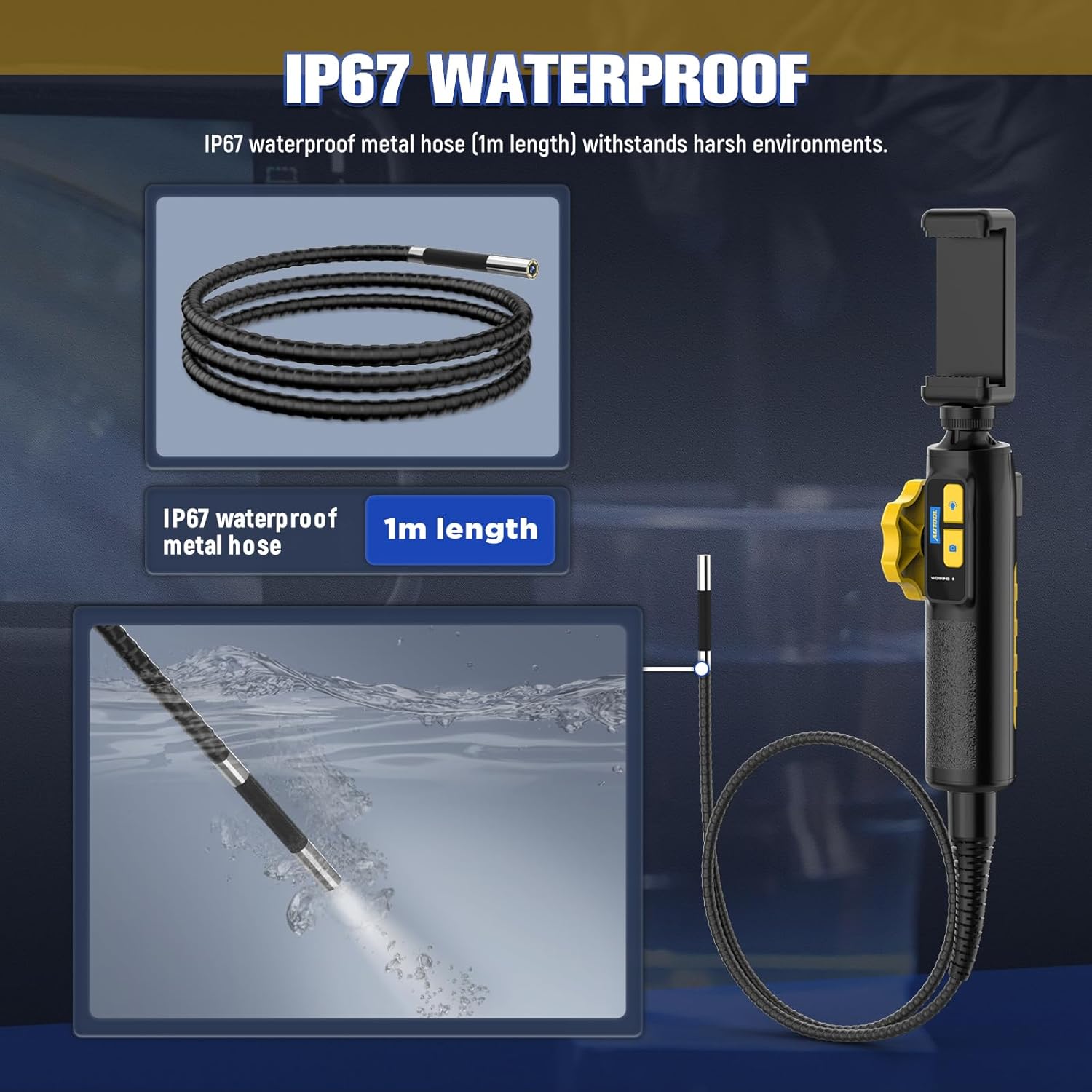

The IP67 waterproof metal hose (1m length) is designed to withstand harsh environments, as demonstrated by its submersion capability.

The borescope features a high-temperature alert system that protects the device by cutting video signals. It is powered by a 2000mAh rechargeable battery.

The device supports multilingual settings, including English, French, German, Italian, Spanish, Chinese, and Japanese.

3. બોક્સમાં શું છે

પેકેજ ખોલતી વખતે, કૃપા કરીને ખાતરી કરો કે નીચેના બધા ઘટકો હાજર છે:

• AUTOOL SVB302 Borescope Unit (Handle with integrated camera cable)
• રક્ષણાત્મક વહન કેસ
• યુએસબી ચાર્જિંગ કેબલ
• વપરાશકર્તા માર્ગદર્શિકા (આ દસ્તાવેજ)

The AUTOOL SVB302 borescope, its protective carrying case, and included cables.

4. સેટઅપ માર્ગદર્શિકા

1. એપ ડાઉનલોડ કરો: Scan the QR code on the device or search for "JCAM Pro" or "JCAM" in your device's app store (iOS App Store for Apple, Google Play Store for Android) and install the application.


Instructions for downloading the JCAM app from the respective app stores for iOS and Android devices.

2. તમારો ફોન ઇન્સ્ટોલ કરો: Securely place your smartphone into the adjustable phone holder on the borescope handle. The holder is designed to fit screens from 3.5 to 6.3 inches (5.5-10.5 cm / 2.1-4.1 inches).

The phone holder's adjustable range, accommodating phones from 5.5cm (2.1 inches) to 10.5cm (4.1 inches).
3. ફોનથી કનેક્ટ કરો: Connect the borescope to your smartphone using the appropriate USB cable (Lightning for iOS, USB-C for Android).
4. પાવર ચાલુ: Long press the power button on the borescope handle to turn on the device.
5. એપ્લિકેશન ખોલો: Launch the JCAM app on your smartphone. The live video feed from the borescope camera should appear automatically.

5. ઓપરેટિંગ સૂચનાઓ

5.1 Articulating the Camera

Use the rotation wheel on the handle to control the two-way articulation of the camera lens. This allows you to navigate bends and view the narrowed interior in all directions without needing to reposition the entire probe.

૬.૨ LED લાઇટ્સનું સમાયોજન

Press the light control button on the handle to cycle through the three brightness levels of the LED lights. Select the appropriate brightness for optimal visibility in different inspection areas.

૬.૪ ફોટા અને વિડિઓઝ કેપ્ચર કરવા

Press the photo/video button on the handle to capture still images or start/stop video recording directly through the app. Captured media will be saved to your connected smartphone.

5.4 Viewing Captured Media

Access the gallery or playback section within the JCAM app to review your captured photos and videos.

6. જાળવણી

• સફાઈ: After each use, especially in dirty or wet environments, gently wipe the camera probe and cable with a soft, damp cloth. For stubborn dirt, a mild, non-abrasive cleaner can be used. Ensure the probe is dry before storage.
• સંગ્રહ: Store the borescope and its accessories in the provided protective carrying case in a cool, dry place, away from direct sunlight and extreme temperatures.
• બેટરી સંભાળ: બેટરી લાઇફ વધારવા માટે, ઉપકરણને નિયમિતપણે ચાર્જ કરો, ભલે વારંવાર ઉપયોગમાં ન હોય. લાંબા સમય સુધી બેટરીને સંપૂર્ણપણે ડિસ્ચાર્જ કરવાનું ટાળો.
• તાપમાન સંરક્ષણ: The device is equipped with a high-temperature alert system. If the operating temperature exceeds 80°C (176°F), the video signal may be cut to prevent damage. Allow the device to cool down before resuming operation.

7. મુશ્કેલીનિવારણ

• સ્ક્રીન પર કોઈ છબી નથી:
  - Ensure the borescope is properly connected to your smartphone.
  - Verify the borescope is powered on (long press the power button).
  - Check if the JCAM app is open and has necessary permissions.
  - Try restarting both the borescope and the app.
• નબળી છબી ગુણવત્તા:
  - Adjust the LED brightness using the light control button.
  - Clean the camera lens if it appears smudged or dirty.
  - Ensure the camera is within the optimal depth of field (1.18-3.94 inches).
• ઉપકરણ ઓવરહિટીંગ:
  - If the high-temperature alert activates, immediately cease operation and allow the device to cool down in a well-ventilated area. Do not use until it has returned to a safe operating temperature.
• બેટરી ચાર્જ થતી નથી:
  - Ensure the USB charging cable is securely connected to both the borescope and a power source.
  - Try a different USB port or power adapter.

8. ઉત્પાદન સ્પષ્ટીકરણો

9. વોરંટી અને સપોર્ટ

9.1 વોરંટી માહિતી

The AUTOOL SVB302 Borescope comes with a 3 વર્ષની વોરંટી ખરીદીની તારીખથી, સામાન્ય ઉપયોગ હેઠળ ઉત્પાદન ખામીઓ અને ખામીઓને આવરી લે છે. વોરંટી દાવાઓ માટે કૃપા કરીને ખરીદીનો પુરાવો રાખો.

9.2 ગ્રાહક સપોર્ટ

For technical assistance, troubleshooting, or warranty inquiries, please contact AUTOOL customer support through their official website or the contact information provided with your product packaging. You can also visit the AUTOOL Store on Amazon વધુ માહિતી માટે.
