EZVALO Motion Activated RV Step Lights Instruction Manual

ઉત્પાદન ઓવરview

The EZVALO Motion Activated RV Step Lights are designed to provide convenient and energy-efficient illumination for your recreational vehicle. Featuring a 4000mAh rechargeable battery, motion sensor activation, adjustable color temperatures, and stepless dimming, these lights enhance safety and comfort in various indoor and outdoor settings.

This product is ideal for campers, RVs, travel trailers, and other areas requiring temporary or motion-activated lighting.

બૉક્સમાં શું છે

• 2 x 11.81 inch Motion Sensor Lights
• 2 x 3m Adhesive Magnetic Strip
• 1 x USB C ચાર્જિંગ કેબલ
• સૂચના માર્ગદર્શિકા

લક્ષણો

• ગતિ સક્રિય: Detects human movement within 13 feet/120 degrees, automatically turning on and off after 20 seconds of no movement (in night mode).
• રિચાર્જેબલ બેટરી: Built-in 4000mAh rechargeable battery provides 15-45 days of use in Auto Mode or 8 hours on MAX brightness in Always-On Mode.
• એડજસ્ટેબલ લાઇટિંગ: Features 24 premium LED beads with three adjustable color temperatures (warm white 3000K, natural light 4500K, cool white 6500K) and 10% to 100% stepless dimming with memory function.
• બહુમુખી ડિઝાઇન: 120° wide-angle sensor and 90° adjustable design for precise light direction.
• સરળ સ્થાપન: Two installation methods: built-in strong magnet for metal surfaces or 3M adhesive tape for flat surfaces. Lights are easily removable for charging.

સેટઅપ અને ઇન્સ્ટોલેશન

Follow these steps to install your EZVALO Motion Activated RV Step Lights:

1. સપાટી તૈયાર કરો: ખાતરી કરો કે ઇન્સ્ટોલેશન સપાટી સ્વચ્છ, સૂકી અને સુંવાળી હોય.
2. Attach Magnetic Strip:

   Peel off the protective film from one side of the 3M adhesive magnetic strip. Firmly press the adhesive side onto the desired installation location. For optimal adhesion, allow 24 hours before attaching the light unit.



   Image: A three-panel image illustrating the magnetic installation process: peeling the protective film, sticking the magnetic strip, and mounting the light.

3. લાઇટ માઉન્ટ કરો:

   Align the light unit with the installed magnetic strip. The built-in magnets will securely attach the light to the strip. Ensure the motion sensor is facing the desired detection area.

4. મોશન સેન્સર એડજસ્ટ કરો: The motion sensor can be rotated 90 degrees to optimize the detection angle.
5. પ્રારંભિક ચાર્જ: Before first use, fully charge the light using the provided USB C charging cable. The power indicator light will change when fully charged.

ઓપરેટિંગ સૂચનાઓ

The EZVALO RV Step Lights offer multiple operating modes and adjustable settings:

મોડ પસંદગી

Use the slide switch on the light unit to select the desired mode:

• ON (Always-On Mode): The light remains continuously on until manually turned off or battery is depleted.
• Day Mode (Motion Detection): The light activates with motion detection regardless of ambient light conditions. It turns off after 20 seconds of inactivity.
• Night Mode (Motion Detection in Dark Environments): The light activates only when motion is detected in dark environments. It turns off after 20 seconds of inactivity. This mode conserves battery life.
• OFF (Power Off): The light is completely off.

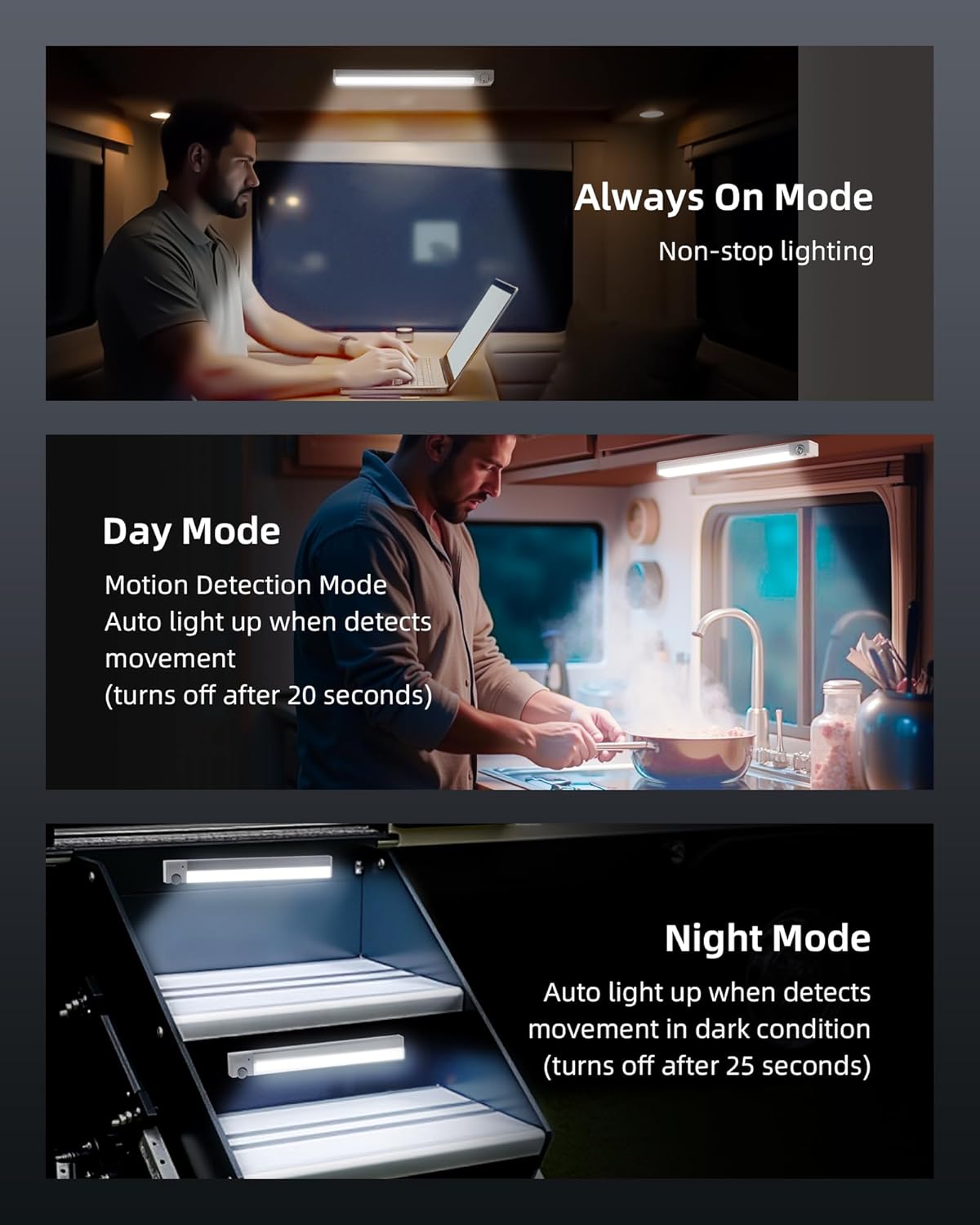

Image: Visual representation of the three operating modes (Always On, Day Mode, Night Mode) and their respective icons on the light unit's switch.

રંગ તાપમાન અને તેજ ગોઠવણ

The light features a touch control for adjusting color temperature and brightness:

• રંગ તાપમાન બદલો: Single press the touch button to cycle through warm white (3000K), natural light (4500K), and cool white (6500K).
• બ્રાઇટનેસ એડજસ્ટ કરો: Long press the touch button to adjust brightness from 10% to 100%. The light will remember your last brightness setting.

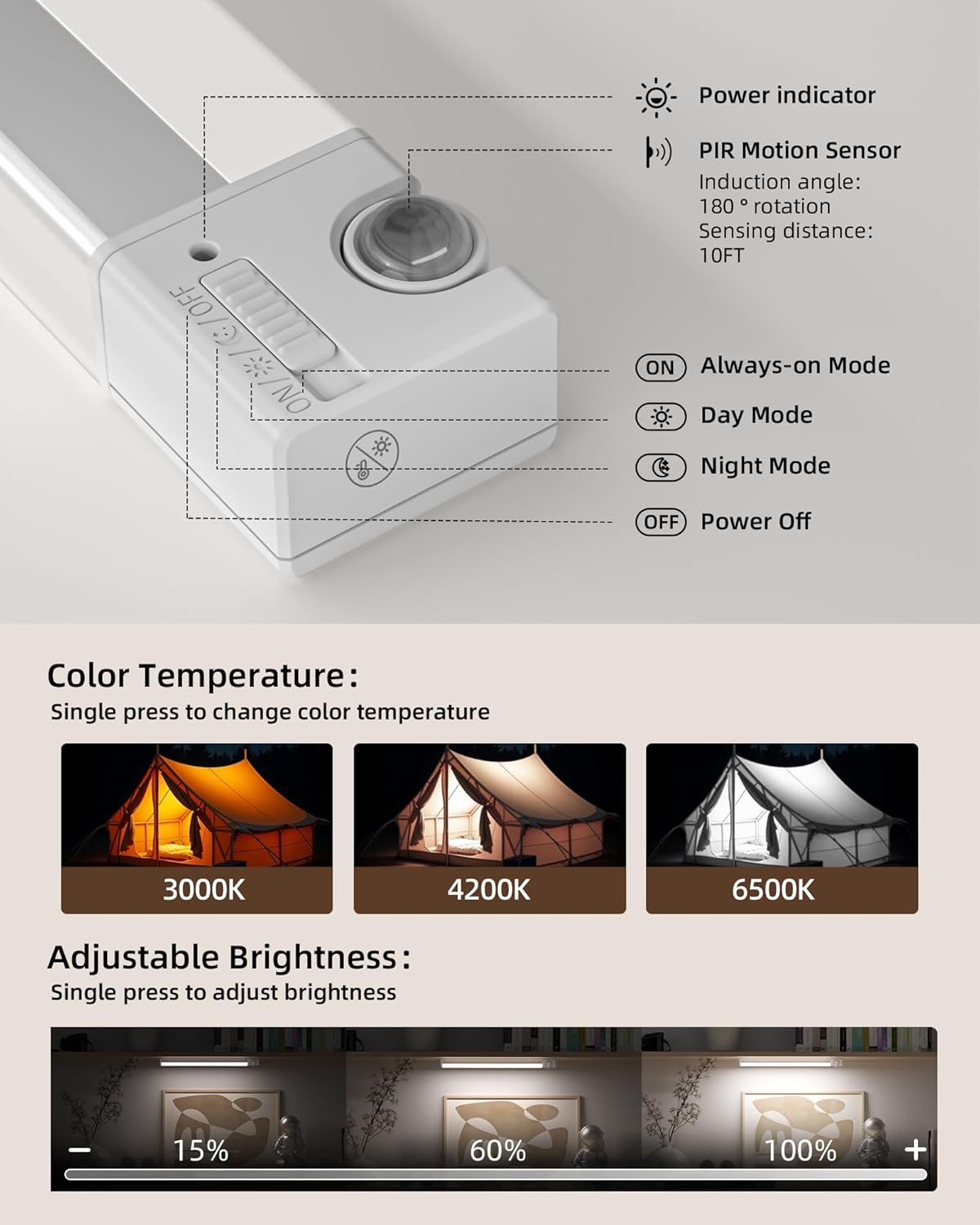

Image: A diagram illustrating how to change color temperature with a single press and adjust brightness with a long press on the control button.

બેટરી ચાર્જ કરી રહી છે

When the battery is low, the light output may decrease or the light may not turn on. To charge:

1. Gently detach the light unit from the magnetic strip.
2. Connect the provided USB C charging cable to the charging port on the light unit and to a compatible USB power source (e.g., USB wall adapter, power bank, computer USB port).
3. The power indicator light will show charging status. A full charge typically takes approximately 4 hours.
4. Once fully charged, reattach the light unit to the magnetic strip.

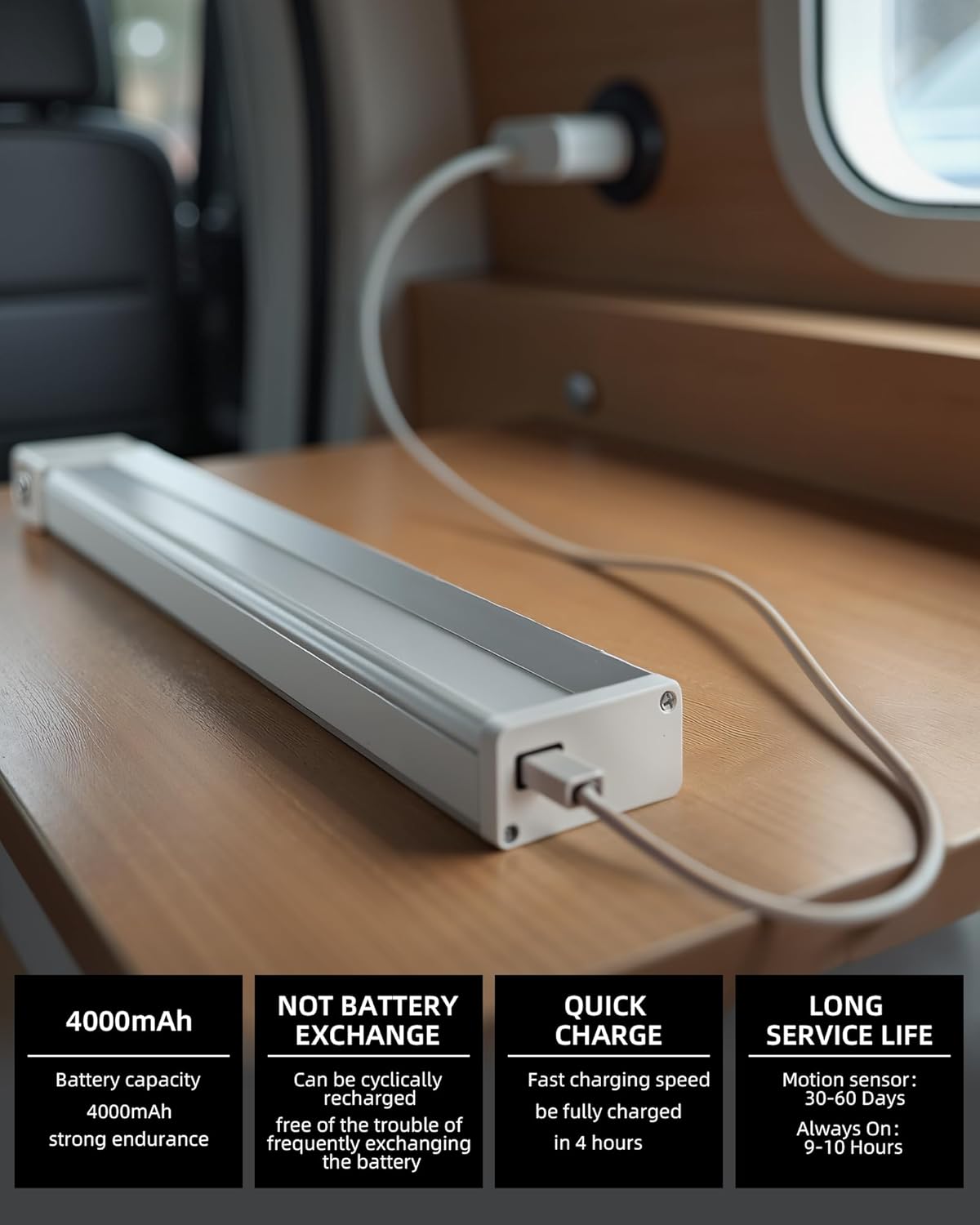

Image: The EZVALO light unit being charged via a USB-C cable, highlighting its 4000mAh battery capacity and quick charging feature.

જાળવણી

• સફાઈ: Wipe the light unit with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• બેટરી સંભાળ: To prolong battery life, avoid fully discharging the battery frequently. Recharge when the light output noticeably diminishes.
• સંગ્રહ: If storing the lights for an extended period, charge them to about 50% and store in a cool, dry place. Recharge every 3-6 months to prevent deep discharge.
• પાણી પ્રતિકાર: આ ઉત્પાદન છે પાણી પ્રતિરોધક નથી. Avoid exposure to rain, splashes, or high humidity.

મુશ્કેલીનિવારણ

વિશિષ્ટતાઓ

વોરંટી અને આધાર

EZVALO ઓફર કરે છે a આજીવન વોરંટી for this product. If you have any questions or concerns regarding your wireless RV step lights, please do not hesitate to contact EZVALO customer service. We are committed to providing excellent customer service and ensuring your satisfaction.

For support, please refer to the contact information provided in your product packaging or visit the official EZVALO webસાઇટ
