1. પરિચય
This manual provides detailed instructions for the setup, operation, and maintenance of your Beelink EQR6 Mini PC. Designed for efficiency and performance, this mini PC is equipped with an AMD Ryzen 7 6800U processor, 32GB LPDDR5 RAM, and a 500GB PCIe 4.0 SSD, running Windows 11 Pro. It supports dual 4K displays, WiFi 6, and Bluetooth 5.2, making it suitable for various applications from office tasks to demanding creative software and home entertainment.

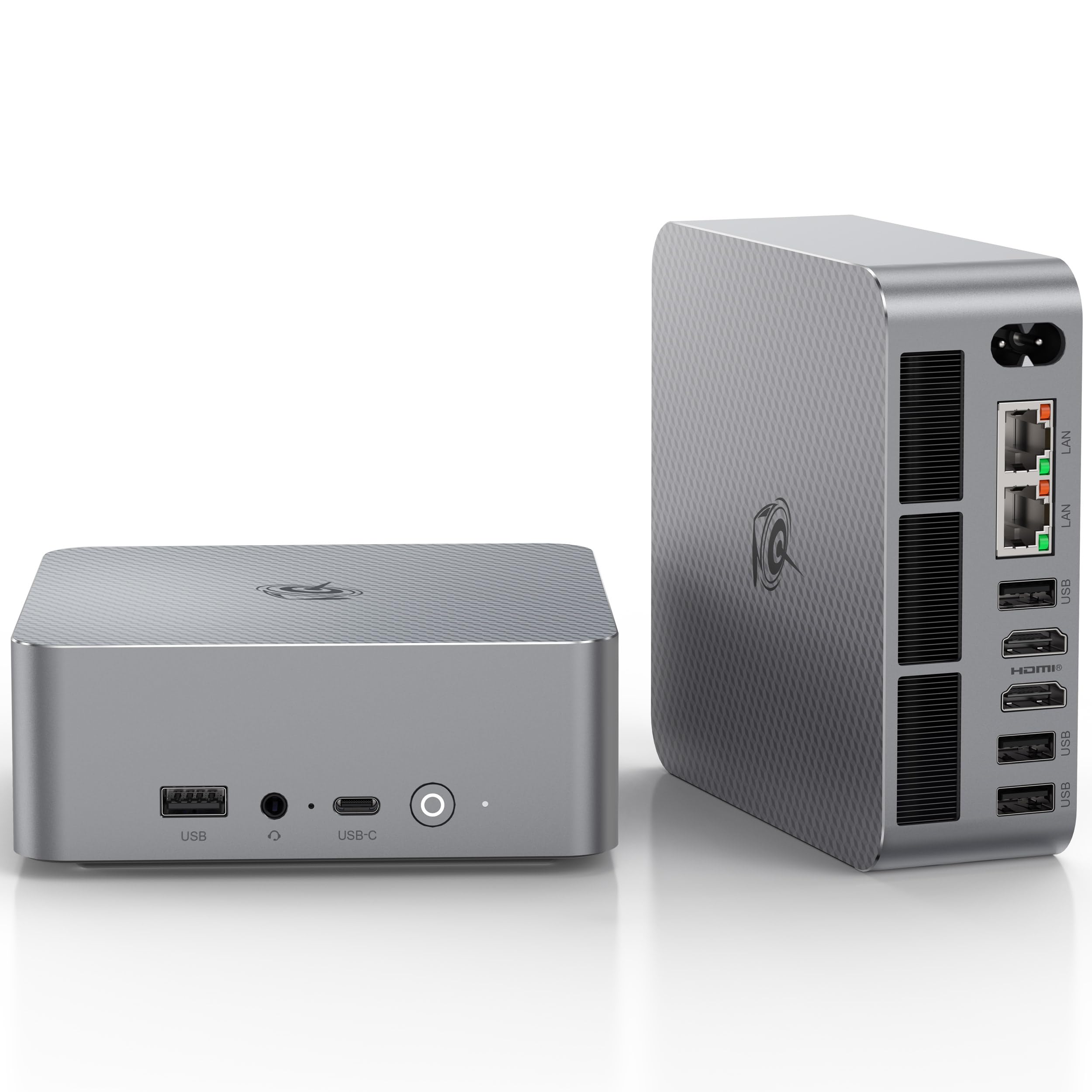

Figure 1: Beelink EQR6 Mini PC, front view. This image shows the compact design and accessible front ports including the power button, 3.5mm audio jack, USB-C, and USB-A port.
2. પેકેજ સામગ્રી
ખાતરી કરો કે બધી વસ્તુઓ પેકેજમાં હાજર છે:
- 1 x Beelink EQR6 6800U 32+500GB Mini PC
- 1 x HDMI કેબલ
- ૧ x પાવર એડેપ્ટર (યુએસ સ્ટાન્ડર્ડ)
- 1 x વપરાશકર્તા માર્ગદર્શિકા
3. સેટઅપ માર્ગદર્શિકા
3.1 કનેક્ટિંગ પેરિફેરલ્સ
- કનેક્ટ ડિસ્પ્લે: Use an HDMI cable to connect your monitor or TV to one of the HDMI ports on the back of the Mini PC. The device supports dual 4K@60Hz displays.
- કીબોર્ડ અને માઉસ કનેક્ટ કરો: Plug your USB keyboard and mouse into the available USB ports.
- નેટવર્ક કનેક્ટ કરો (વૈકલ્પિક): For a wired connection, connect an Ethernet cable from your router to one of the dual 1000M LAN ports. For wireless, the device supports Wi-Fi 6.
- ઓડિયો કનેક્ટ કરો (વૈકલ્પિક): If using external speakers or headphones, connect them to the 3.5mm audio jack.
Figure 2: Port Layout. This diagram illustrates the various front and back ports, including USB 3.2, USB-C, HDMI, LAN, and audio jack, along with their specifications.
3.2 પાવરિંગ ચાલુ
- પાવર કનેક્ટ કરો: Plug the power adapter into the DC IN port on the back of the Mini PC, then plug the adapter into a power outlet.
- પાવર ચાલુ: Press the power button located on the front of the Mini PC. The power indicator light will illuminate.
Figure 3: Power Connection. This image shows the Mini PC connected to a power outlet, highlighting the built-in power supply design.
4. ઓપરેટિંગ સૂચનાઓ
૨.૩ પ્રારંભિક બુટ અને વિન્ડોઝ સેટઅપ
Upon first power-on, the system will guide you through the Windows 11 Pro setup process. Follow the on-screen instructions to configure your language, region, network, and user account.
૪.૨ નેટવર્ક કનેક્ટિવિટી
- વાયર્ડ કનેક્શન: જો ઇથરનેટ કેબલ જોડાયેલ હોય, તો સિસ્ટમ આપમેળે નેટવર્ક શોધી કાઢશે અને કનેક્ટ થશે.
- વાયરલેસ કનેક્શન: To connect to Wi-Fi, click the network icon in the taskbar, select your Wi-Fi network, enter the password, and click Connect. The device supports Wi-Fi 6 for faster speeds.
4.3 ડિસ્પ્લે કન્ફિગરેશન
The Beelink EQR6 supports dual 4K@60Hz displays via its HDMI ports. To configure multiple displays in Windows 11:
- Right-click on the desktop and select ડિસ્પ્લે સેટિંગ્સ.
- હેઠળ બહુવિધ ડિસ્પ્લે, you can detect, identify, and arrange your monitors.
- Choose how your desktop is displayed (e.g., Extend these displays, Duplicate these displays).
Figure 4: Dual 4K Display Setup. This image demonstrates the Mini PC connected to two 4K monitors, showcasing its multi-display capability.
5. જાળવણી
5.1 કૂલિંગ સિસ્ટમ
The EQR6 Mini PC features an MSC2.0 cooling system with dual fans and a VC vapor chamber for efficient heat dissipation. To ensure optimal performance and longevity:
- Ensure the air vents on the device are not obstructed.
- Regularly clean dust from the vents using compressed air.
Figure 5: MSC2.0 Cooling System. This diagram illustrates the internal airflow and components of the advanced cooling system, including heat pipes, silent fan, and SSD heatsink.
૪.૨ સ્ટોરેજ વિસ્તરણ
The mini PC supports storage expansion up to 8TB total via dual M.2 slots (4TB each). For detailed instructions on installing additional M.2 SSDs, refer to the official Beelink support resources or consult a qualified technician.
Figure 6: Memory and Storage. This image highlights the 32GB LPDDR5 RAM and the dual M.2 PCIe 4.0 SSD slots for storage expansion.
6. મુશ્કેલીનિવારણ
| સમસ્યા | સંભવિત કારણ | ઉકેલ |
|---|---|---|
| No power/Does not boot | Power cable not connected properly; Faulty power adapter; CMOS battery issue. | Check power connections. Ensure the power adapter is functional. Try clearing CMOS (refer to port diagram for CLR CMOS button). |
| કોઈ ડિસ્પ્લે આઉટપુટ નથી | Incorrect display input selected on monitor; Faulty HDMI cable; Graphics driver issue. | Ensure monitor input is set correctly. Try a different HDMI cable or port. If possible, boot into safe mode to update graphics drivers. |
| વાઇ-ફાઇ/બ્લુટુથ કનેક્ટિવિટી સમસ્યાઓ | Drivers not installed; Interference; Router issues. | Ensure Wi-Fi/Bluetooth drivers are up to date. Move closer to the router or reduce interference. Restart your router. |
| System instability/crashes | Overheating; Software conflicts; Corrupted Windows installation. | Ensure proper ventilation. Update all drivers and Windows. Consider a clean Windows installation if issues persist (as noted in some user reviews). |
7. સ્પષ્ટીકરણો
| લક્ષણ | વિગત |
|---|---|
| પરિમાણ | 126x126x44.2mm (Without Rubber Feet) |
| CPU | AMD Ryzen™ 7 6800U Processor (8C/16T, 2.7-4.7GHz, 16MB Cache) |
| ગ્રાફિક્સ | AMD Radeon™ 680M 12 Cores 2200MHz |
| સિસ્ટમ ડિસ્ક | M.2 2280 PCIe4.0x4 4TB MAX |
| Internal Slot | 32GB (16GB*2) LPDDR5, M.2 2280 PCIe4.0x4 4TB MAX |
| ઈન્ટરફેસ | USB-C 10Gbps*1, USB3.2 10Gbps*3, USB2.0 480Mbps*1, HDMI (Max 4K 60Hz)*2, LAN (1000M)*2, 3.5mm Audio Jack*1 |
| વાયરલેસ નેટવર્ક | WiFi 6 (Intel AX200), Bluetooth 5.2 |
| ઓપરેટિંગ સિસ્ટમ | વિન્ડોઝ 11 પ્રો |
| સંચાલન પર્યાવરણ | 0°C-40°C, Humidity 30%-90% |
| સંગ્રહ પર્યાવરણ | -20°C-60°C, Humidity 10%-90% |
| વધારાના કાર્યો | Auto Power On, WOL (Wake On LAN) |
૫.૩. પ્રોડક્ટ વિડિઓઝ
8.1 SER8 Mini PC Cooling System Overview
Video 1: This video demonstrates the new cooling system of the Beelink SER8 Mini PC, showcasing its internal design and airflow for efficient heat dissipation.
8.2 SER8 FurMark GPU and AIDA64 FPU Stress Test
Video 2: This video shows the Beelink SER8 undergoing a 24-hour stress test using FurMark for GPU and AIDA64 for FPU, demonstrating its stability and thermal management under heavy load.
8.3 SER8 Mini Computers Product Overview
વિડિઓ ૫.૧: સંક્ષિપ્ત માહિતીview વિડિઓ શોasing the Beelink SER8 Mini Computer, highlighting its design and key features.
9. વોરંટી અને સપોર્ટ
Beelink provides comprehensive support for its products:
- વોરંટી: 12-month warranty period.
- ગ્રાહક સેવા: 7D + 24H customer service.
- ટેકનિકલ સપોર્ટ: આજીવન તકનીકી સપોર્ટ.
- બદલીઓ: New replacement provided during the warranty period.
For assistance, please log in to your Amazon account, navigate to 'Your Orders', and select 'Ask Product Question' for the Beelink EQR6 Mini PC.
Figure 7: Beelink Support Details. This image outlines the warranty and support services offered by Beelink.
