પરિચય
Thank you for choosing the ToughTested Dual 10,000 mAh Solar Power Portable Charger. This device is designed to provide reliable power on the go, featuring a high-capacity power bank, an integrated LED flashlight, and solar recharging capabilities. Its rugged, waterproof design makes it ideal for outdoor activities and emergency situations.
This manual provides essential information on setting up, operating, maintaining, and troubleshooting your power bank. Please read it thoroughly before use to ensure optimal performance and longevity of your device.
બૉક્સમાં શું છે
- ToughTested Dual 10,000 mAh Solar Power Bank (Model: TT-PBW-LED10)
- Heavy Duty USB-A to USB-C Fast Charge Cable
- વપરાશકર્તા માર્ગદર્શિકા (આ દસ્તાવેજ)
The ToughTested power bank and its included heavy-duty USB-A to USB-C fast charge cable.
ઉત્પાદન ઓવરview
આગળ અને પાછળ view of the ToughTested Dual 10,000 mAh Solar Power Bank, highlighting the solar panel on one side and the 18-LED flashlight panel on the other.
- 1. પાવર બટન: Activates the power bank and controls the flashlight modes.
- 2. એલઇડી સૂચકો: Displays battery charge level.
- 3. Solar Panel: For emergency solar recharging.
- 4. USB-C Port (PD 18W): For fast charging the power bank and compatible devices.
- 5. USB-A Port (Quick Charge 3.0): For charging other devices.
- 6. 18-LED Flashlight Panel: Provides bright illumination with multiple modes.
- 7. Integrated Carabiner Loop: For easy attachment and portability.
સેટઅપ અને પ્રારંભિક ઉપયોગ
પાવર બેંક ચાર્જ કરી રહી છે
Before first use, fully charge your ToughTested power bank using the included USB-C cable and a wall adapter (not included). A full charge ensures optimal performance and battery longevity.
- Connect the USB-C end of the included cable to the USB-C port on the power bank.
- Connect the USB-A end of the cable to a compatible USB wall adapter or computer USB port.
- ચાર્જિંગ પ્રગતિ દર્શાવવા માટે LED સૂચકાંકો પ્રકાશિત થશે. સંપૂર્ણ ચાર્જ થયા પછી ચારેય LED ઘન રહેશે.
નોંધ: While the solar panel provides emergency charging, it is significantly slower than wall charging and is intended for maintaining charge or emergency power in direct sunlight, not as a primary charging method.
The solar panel on the ToughTested power bank, designed for emergency recharging when conventional power sources are unavailable.
ઓપરેટિંગ સૂચનાઓ
તમારા ઉપકરણો ચાર્જ કરી રહ્યા છીએ
The power bank features both USB-C (Power Delivery) and USB-A (Quick Charge 3.0) ports for versatile device charging.
- Connect your device's charging cable to the appropriate port (USB-C or USB-A) on the power bank.
- કેબલનો બીજો છેડો તમારા ડિવાઇસથી કનેક્ટ કરો.
- Press the power button once to begin charging. The LED indicators will show the remaining battery level.
- Disconnect your device once charging is complete. The power bank will automatically turn off after a period of inactivity.
The two charging ports on the ToughTested power bank: a USB-C 18W Power Delivery port and a USB Quick Charge 3.0 port, offering versatile charging options.
એલઇડી ફ્લેશલાઇટનો ઉપયોગ
The integrated 18-LED flashlight offers multiple lighting modes for various situations.
- ફ્લેશલાઇટ ચાલુ કરવા માટે: પાવર બટન બે વાર દબાવો.
- To cycle through modes: Once the flashlight is on, single-press the power button to switch between:
- Steady (Full Brightness)
- SOS (Morse Code for distress)
- Strobe (Flashing light)
- To turn off the flashlight: Double-press the power button again.
The 18-LED light panel of the ToughTested power bank, providing 550 lumens of high-output illumination.
જાળવણી
- સફાઈ: Wipe the power bank with a soft, dry cloth. Do not use harsh chemicals or abrasive materials.
- સંગ્રહ: Store the power bank in a cool, dry place away from direct sunlight and extreme temperatures. For long-term storage, ensure the battery is charged to at least 50% to preserve battery health.
- પાણી પ્રતિકાર: The device has an IP44 waterproof rating, meaning it is protected against solid objects larger than 1mm and splashing water from any direction. Do not submerge the device in water. Ensure all ports are dry before charging.

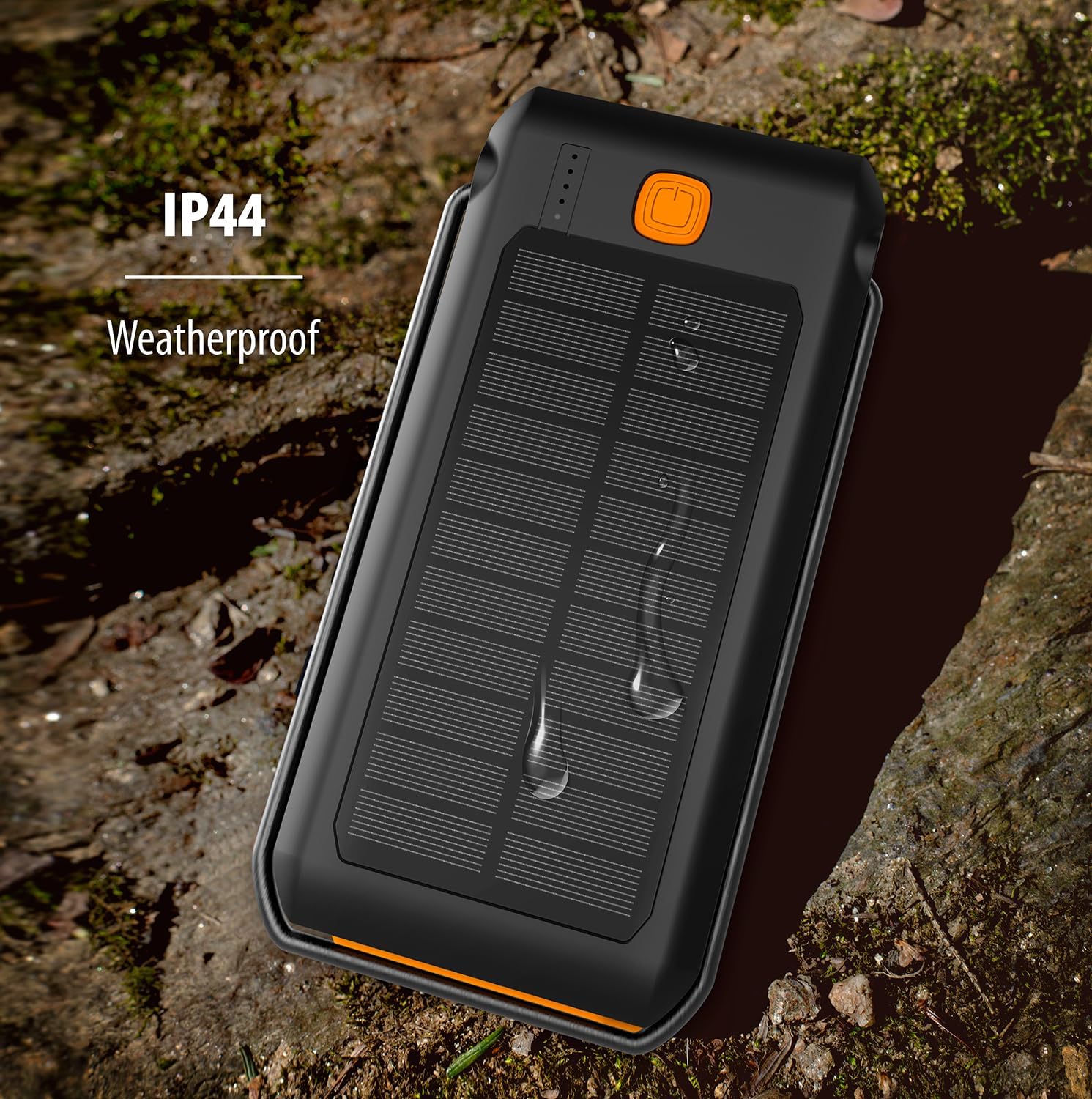

The ToughTested power bank demonstrating its IP44 weatherproof rating, indicating protection against splashing water.
મુશ્કેલીનિવારણ
| સમસ્યા | સંભવિત કારણ | ઉકેલ |
|---|---|---|
| પાવર બેંક ચાર્જ થતી નથી | Cable not connected properly; faulty cable/adapter; power bank fully discharged. | Ensure cable is securely connected. Try a different cable or wall adapter. Allow a few minutes for the power bank to respond if fully discharged. |
| પાવર બેંકમાંથી ઉપકરણ ચાર્જ થતું નથી | Power bank low on charge; cable not connected properly; device not compatible; power bank in standby. | Recharge the power bank. Ensure cables are securely connected. Press the power button once to activate charging. Verify device compatibility. |
| ફ્લેશલાઇટ કામ કરતી નથી | Power bank low on charge; incorrect button press. | Recharge the power bank. Double-press the power button to turn on/off the flashlight. |
| Solar charging is slow | Solar charging is supplementary; insufficient direct sunlight. | Solar charging is designed for emergency use and is slower than wall charging. Ensure the solar panel is exposed to direct, strong sunlight. |
વિશિષ્ટતાઓ
| લક્ષણ | વિગત |
|---|---|
| મોડલ નંબર | TT-PBW-LED10 |
| બેટરી ક્ષમતા | ૯૦૦ mAh (લિથિયમ પોલિમર) |
| ઇનપુટ પોર્ટ્સ | USB-C (પાવર બેંક ચાર્જ કરવા માટે) |
| આઉટપુટ પોર્ટ્સ | USB-C (18W Power Delivery), USB-A (Quick Charge 3.0) |
| સોલર પેનલ આઉટપુટ | 275mA (for emergency/supplementary charging) |
| ફ્લેશલાઇટ | 18 LED, 550 Lumen, 3 Modes (Steady, SOS, Strobe) |
| વોટરપ્રૂફ રેટિંગ | IP44 (પાણીના છાંટા સામે રક્ષણ) |
| પરિમાણો | 6.5 x 3.5 x 1 ઇંચ |
| વજન | 10.4 ઔંસ |
| રંગ | કાળો / નારંગી |
વોરંટી અને આધાર
The ToughTested Dual 10,000 mAh Solar Power Bank is backed by ToughTested's exclusive 5 વર્ષની વોરંટી. આ વોરંટી સામાન્ય ઉપયોગ હેઠળ સામગ્રી અને કારીગરીમાં ખામીઓને આવરી લે છે.
For warranty claims, technical support, or any inquiries regarding your product, please refer to the official ToughTested webસૌથી અદ્યતન સંપર્ક માહિતી માટે સાઇટ અથવા ઉત્પાદન પેકેજિંગ.
