VEVOR Airless Paint Sprayer 1800W 3000 PSI User Manual

1. પરિચય

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your VEVOR Airless Paint Sprayer, Model 450. Please read this manual thoroughly before initial use and retain it for future reference.

Image: The VEVOR Airless Paint Sprayer being used for various applications, including painting a deck, a fence, and an interior wall.

2. સલામતી સૂચનાઓ

Failure to follow these safety instructions may result in serious injury or property damage. Always prioritize safety when operating the paint sprayer.

• Always wear appropriate safety equipment, including eye and face protection, gloves, and a respirator, when using this product.
• Keep the sprayer away from heat sources, open flames, and sparks.
• લોકો અથવા પ્રાણીઓ પર ક્યારેય સ્પ્રે બંદૂકનો નિર્દેશ કરશો નહીં.
• જોખમી ધુમાડાના સંચયને રોકવા માટે કાર્યક્ષેત્રમાં પર્યાપ્ત વેન્ટિલેશનની ખાતરી કરો.
• Always comply with local regulations for the disposal of paint, solvents, and other materials.
• Always unplug the sprayer and release pressure before cleaning, servicing, or storing the unit.
• Never use the sprayer if the hose, spray gun, or any other component is damaged. Inspect all parts before each use.
• Do not operate the sprayer in the presence of flammable liquids or gases.
• બાળકો અને અનધિકૃત વ્યક્તિઓને કાર્યક્ષેત્રથી દૂર રાખો.

3. પેકેજ સામગ્રી

Verify that all items are present and undamaged upon unpacking. If any parts are missing or damaged, contact VEVOR customer service.

• 1 x Airless Paint Sprayer Unit
• 1 x Suction Tube with Filter Head
• 1 x Suction Tube Clamp
• 1 x Return Hose
• 1 x 9-meter High-Pressure Hose
• 1 x સ્પ્રે ગન
• 1 x 0.5-meter Extension Rod
• 1 x 517 Nozzle
• ૧ x વપરાશકર્તા માર્ગદર્શિકા (આ દસ્તાવેજ)
• 1 x Large Filter
• 2 x Spare O-rings for Suction Tube

છબી: એક વિસ્ફોટ view showing the main sprayer unit and its various detachable components and accessories, highlighting ease of disassembly.

4. ઉત્પાદન ઓવરview અને મુખ્ય લક્ષણો

The VEVOR Airless Paint Sprayer Model 450 is designed for efficient and uniform paint application. It features a powerful motor and user-friendly controls.

4.1 મુખ્ય ઘટકો

છબી: વિગતવાર view of the sprayer unit with numbered callouts indicating the dust-proof switch, pressure adjustment, exhaust pressure valve, and fluid filter.

1. Dust-proof Switch: Protects internal components from paint and dust.
2. દબાણ ગોઠવણ: Knob to control the spraying pressure.
3. Exhaust Pressure Valve: રીલે માટેasing pressure safely.
4. Fluid Filter: Ensures smooth paint flow by filtering out particles.
5. Wear-Resistant Pump Body: Designed for durability and extended lifespan.
6. High-Quality Metal Needle: Ensures consistent and fine atomization.

4.2 પ્રદર્શન સુવિધાઓ

• High Efficiency Airless Technology: Provides a smooth, uniform finish without brush marks, reducing overspray.
• શક્તિશાળી મોટર: Equipped with an 1800W brushless motor for consistent performance.
• એડજસ્ટેબલ ફ્લો રેટ: Max flow rate of 1.8 L/min with adjustable control for various materials.
• Fan-Shaped Spray Pattern: Achieves optimal atomization for even coverage.
• Long-Distance Capability: Includes a 9-meter high-pressure hose and a 0.5-meter extension rod for reaching difficult areas.
• Automatic Start & Stop: Enhances convenience and reduces wear.

Image: Illustration of the powerful 1800W motor and its benefits, alongside the paint flow control knob and the 1.8 L/Min maximum flow rate.

5. સેટઅપ

Proper setup is crucial for safe and effective operation. Follow these steps carefully before starting any painting project.

1. કાર્યક્ષેત્ર તૈયાર કરો: Ensure the area is well-ventilated, clean, and free of obstructions. Cover surfaces not to be painted with drop cloths or plastic sheeting.
2. સ્પ્રેયર એસેમ્બલ કરો:
   • Attach the high-pressure hose to the sprayer unit and the spray gun, ensuring all connections are tight.
   • Connect the suction tube with the filter head to the inlet port of the sprayer. Secure it with the suction tube clamp.
   • Attach the return hose to the appropriate port on the sprayer.
   • Install the desired nozzle (e.g., 517 nozzle) onto the spray gun. If using, attach the 0.5-meter extension rod between the gun and the nozzle guard.
3. પેઇન્ટ તૈયાર કરો: Stir the paint thoroughly. For optimal results, ensure the paint consistency is suitable for airless spraying. Refer to the paint manufacturer's recommendations for thinning, if necessary. The VEVOR sprayer can handle unthinned paint directly from containers.
4. Place Suction Tube: Submerge the suction tube's filter head completely into the paint container. Place the return hose into a waste bucket or back into the paint container for priming.
5. પાવર કનેક્ટ કરો: સ્પ્રેયરને ગ્રાઉન્ડેડ ઇલેક્ટ્રિકલ આઉટલેટમાં પ્લગ કરો.

6. ઓપરેટિંગ સૂચનાઓ

Follow these steps for safe and effective operation of your airless paint sprayer.

૨.૧ સ્પ્રેયરનું પ્રાઇમિંગ

1. Turn the pressure control knob to the lowest setting.
2. Set the prime/spray valve to the "Prime" position.
3. Turn on the power switch. The pump will start to draw paint.
4. Allow the paint to circulate through the return hose until a steady stream of paint flows without air bubbles. This indicates the system is primed.
5. પાવર સ્વીચ બંધ કરો.

6.2 છંટકાવ

1. After priming, turn the prime/spray valve to the "Spray" position.
2. Turn the pressure control knob to the desired pressure setting. Start with a lower pressure and gradually increase until you achieve a consistent spray pattern.
3. Hold the spray gun approximately 30 cm (12 inches) from the surface, keeping it perpendicular to the surface.
4. Begin spraying by moving your arm, then pull the trigger. Release the trigger before stopping your arm movement. This technique prevents paint buildup at the start and end of each pass.
5. Overlap each pass by about 50% to ensure even coverage.
6. For best results, maintain a consistent speed and distance from the surface.

Image: An individual operating the VEVOR Airless Paint Sprayer with an extension rod to paint a ceiling, demonstrating the sprayer's reach.

Image: A visual representation of the fan-shaped spray pattern for even application and the long 9-meter high-pressure hose, emphasizing the sprayer's capability to handle various materials.

7. જાળવણી અને સફાઈ

Regular cleaning and maintenance are essential to ensure the longevity and optimal performance of your sprayer. Always unplug the unit and release pressure before cleaning.

૪.૩ રીલેasing દબાણ

1. પાવર સ્વીચ બંધ કરો.
2. સ્પ્રે બંદૂક પર ટ્રિગર લોકને જોડો.
3. Point the spray gun into a waste bucket.
4. Disengage the trigger lock and squeeze the trigger to release any remaining pressure.
5. Turn the prime/spray valve to the "Prime" position to fully relieve pressure from the system.

7.2..XNUMX.૨ સફાઇ પ્રક્રિયા

1. Remove the suction tube from the paint and place it into a bucket of appropriate cleaning solution (water for latex paints, mineral spirits for oil-based paints).
2. Place the return hose into the same cleaning solution bucket.
3. Turn the prime/spray valve to "Prime" and turn on the power. Allow the cleaning solution to circulate until it runs clear through the return hose.
4. Turn the prime/spray valve to "Spray". Remove the nozzle and nozzle guard from the spray gun.
5. Point the spray gun into the waste bucket and pull the trigger, allowing the cleaning solution to flush through the high-pressure hose and gun until it runs clear.
6. Turn off the power and release pressure as described in Section 7.1.
7. Disassemble the spray gun, nozzle, filter, and suction tube. Clean all components thoroughly with the appropriate cleaning solution and brushes.
8. Rinse all parts with clean water and allow them to dry completely before reassembly or storage.

Image: The sprayer unit and its components shown disassembled and being cleaned, emphasizing the detachable design for easy maintenance.

8. મુશ્કેલીનિવારણ

This section addresses common issues you might encounter with your VEVOR Airless Paint Sprayer. For problems not listed here, contact customer support.

9. સ્પષ્ટીકરણો

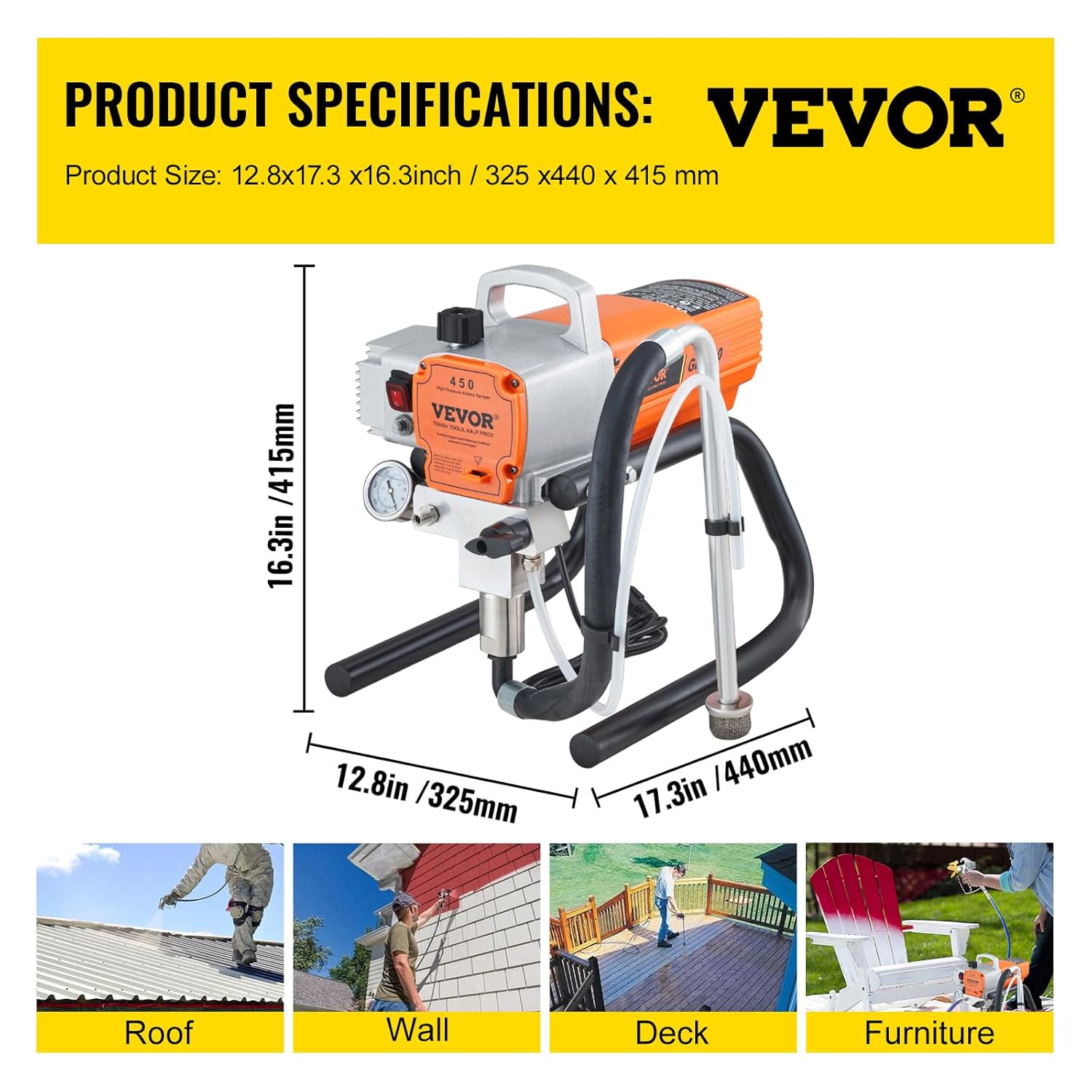

Image: Technical drawing showing the dimensions of the VEVOR Airless Paint Sprayer.

10. વોરંટી અને સપોર્ટ

For warranty information, technical support, or to order replacement parts, please contact VEVOR customer service through their official website or the retailer where the product was purchased. Please have your model number (450) and UPC (840349954547) available when contacting support.
