એપ કંટ્રોલ યુઝર મેન્યુઅલ સાથે SALA DJ લેસર લાઇટ

1. પરિચય

The SALA DJ Laser Light with App Control is a versatile and powerful laser projector designed for various events, including parties, stage performances, discos, KTVs, and bars. It features full RGB laser effects, app-controlled customization for 3D animations, text, and patterns, and multiple operation modes including Sound Control and DMX512. This manual provides essential information for the safe and effective use of your device.

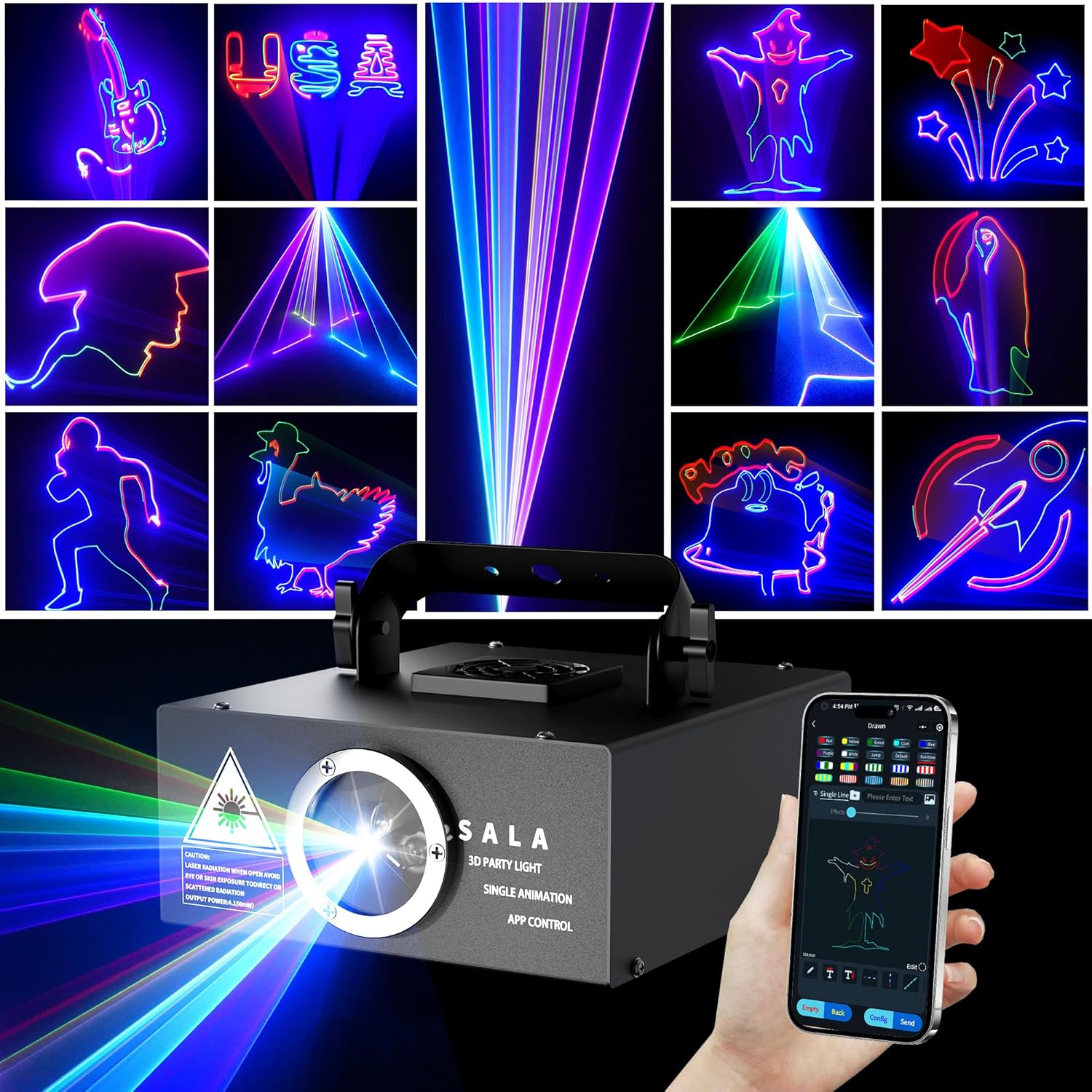

Image 1.1: The SALA DJ Laser Light showcasing its diverse projection capabilities, including various shapes and animations.

2. પેકેજ સામગ્રી

પેકેજ ખોલતી વખતે કૃપા કરીને ખાતરી કરો કે બધી વસ્તુઓ હાજર છે અને સારી સ્થિતિમાં છે:

• SALA DJ Laser Light Unit
• પાવર કોર્ડ
• Bulb (included as part of the unit)
• વપરાશકર્તા માર્ગદર્શિકા (આ દસ્તાવેજ)

3. લક્ષણો

The SALA DJ Laser Light offers a range of advanced features for dynamic lighting effects:

• Creative Control with Mobile App: Wirelessly connect to the mobile app (LightELF) to design custom 3D animations, draw patterns, enter text, and select from over 200 built-in effects within a 10-meter range.
• Mesmerizing Full RGB Laser Effects: Enjoy powerful, high-speed FULL RGB laser beams that create captivating 3D graphics, including visuals that dance, rotate, and zoom.
• Personalized Light Show: Create custom animations (note: custom patterns cannot be saved on the device for a long time) and add specific text (up to 4 groups for cyclic playback). Personalize built-in patterns and design up to 20 unique scenes, each lasting 25.5 seconds.
• Event-Ready Customization: Tailor lighting for various celebrations such as birthday parties, wedding receptions, Halloween, and Christmas parties. Sync visuals to music or add personalized text.
• બહુમુખી ઓપરેશન મોડ્સ: Six flexible operation modes are available: APP control, Sound Control, DMX512, Master/Slave, and manual control.
• સાઉન્ડ એક્ટિવેટેડ મોડ: Synchronize laser effects with music beats to create engaging patterns, vibrant colors, and dynamic beam effects. This mode requires an environment with high volume and rhythm.
• Fog Machine Recommendation: For optimal visual effects, especially to enhance beam visibility and create immersive light shows, the use of a fog machine in a small, enclosed indoor space is highly recommended.

Image 3.1: The laser light adapting to different event themes, showcasing its versatility for various celebrations.

4. સેટઅપ

૩.૧ ભૌતિક સેટઅપ

Place the laser light on a stable surface or mount it using appropriate hardware (not included) in a location where the laser beams can project freely without obstruction. Ensure proper ventilation around the unit.

૪.૫ એપ ઇન્સ્ટોલેશન અને કનેક્શન

The SALA DJ Laser Light is controlled via the LightELF mobile application.

1. એપ્લિકેશન ઇન્સ્ટોલ કરો: Download the "LightELF" app from your device's app store (available for Android and iOS).
2. એપ્લિકેશન ખોલો: Launch the LightELF app on your smartphone or tablet.
3. ઉપકરણ સાથે કનેક્ટ કરો: Ensure your laser light is powered on. In the app, tap "Click Me to Connect" or similar option to initiate Bluetooth pairing. Grant necessary location permissions if prompted.

Image 4.1: Steps for installing and connecting the LightELF app to the laser light.

4.3 DMX Setup (Optional)

For professional control, the unit supports DMX512. Connect your DMX controller to the DMX IN port on the laser light. Use the DMX OUT port to daisy-chain multiple units. Refer to your DMX controller's manual for specific channel assignments and programming.

Image 4.2: The laser light's control panel with DMX input/output, suitable for integration into a professional DJ setup.

5. ઓપરેશન

5.1 એપ્લિકેશન નિયંત્રણ

The LightELF app provides comprehensive control over the laser light's functions:

• Graffiti/Drawing: Use the drawing interface to create custom patterns and animations.
• Text Playback: Input custom text messages for projection. You can configure up to 4 groups for cyclic playback.
• બિલ્ટ-ઇન ઇફેક્ટ્સ: Access over 200 pre-programmed effects and animations.
• દ્રશ્ય વ્યવસ્થાપન: Design and save up to 20 unique scenes, each with a duration of 25.5 seconds.

Image 5.1: The LightELF app interface, demonstrating options for graffiti drawing, text input, and scene programming.

Image 5.2: The app's scene management feature, allowing users to create and edit multiple custom lighting sequences.

5.2 Sound Activated Mode

In Sound Activated mode, the laser light responds to ambient sound, synchronizing its patterns and effects with the music's beat. For best results, use this mode in an environment with clear, high-volume music and a strong rhythm.

૫.૨ DMX512 મોડ

When connected to a DMX controller, the laser light can be integrated into a larger lighting setup, allowing for precise control over its various parameters. Consult the DMX channel chart (if provided separately or within the app) for detailed control options.

5.4 માસ્ટર/સ્લેવ મોડ

Connect multiple SALA DJ Laser Light units using DMX cables. Set one unit as the Master and the others as Slaves. The Slave units will then mimic the Master unit's patterns and effects, creating a synchronized light show.

Image 5.3: Visual representation of Sound Activation mode and DMX control in action.

6. જાળવણી

To ensure the longevity and optimal performance of your SALA DJ Laser Light, follow these maintenance guidelines:

• સફાઈ: Regularly wipe the exterior of the unit with a soft, dry cloth. Ensure the laser aperture is free from dust and debris. Do not use abrasive cleaners or solvents.
• વેન્ટિલેશન: Ensure the ventilation openings are clear and unobstructed to prevent overheating.
• સંગ્રહ: When not in use, store the laser light in a cool, dry place, away from direct sunlight and extreme temperatures.
• Fog Machine Use: As mentioned in features, a fog machine significantly enhances the visual output. Regular cleaning of your fog machine is also recommended to maintain its performance.

7. મુશ્કેલીનિવારણ

If you encounter issues with your SALA DJ Laser Light, refer to the following common problems and solutions:

8. સ્પષ્ટીકરણો

Detailed technical specifications for the SALA DJ Laser Light (Model LM-004):

Image 8.1: Physical dimensions and control panel layout of the laser light.

9. વોરંટી અને સપોર્ટ

For warranty information, please refer to the documentation provided with your purchase or contact SALA customer support directly. A digital version of the user manual is available for download at: વપરાશકર્તા માર્ગદર્શિકા (PDF).
