1. પરિચય
This manual provides essential information for the safe and effective use of your Ortur LU2-10A 10000mW Laser Module. Please read these instructions carefully before installation and operation. This laser module is designed for high-precision engraving and cutting with Ortur Laser Engravers.
2. પેકેજ સામગ્રી
ખાતરી કરો કે નીચે સૂચિબદ્ધ બધા ઘટકો તમારા પેકેજમાં હાજર છે:
છબી: વિગતવાર view of all components included in the Ortur LU2-10A Laser Module package, such as the laser module, laser shield, air assist, various screws, cables, and tools.
- LU2-10A Laser Module
- Laser Shield
- એર આસિસ્ટ
- સપોર્ટ બ્લોક
- સ્લાઇડર
- OUC2.0 નો પરિચય
- Small Coupling
- 24V 2A પાવર એડેપ્ટર
- Dedicated LaserWire
- એર પાઇપ
- પાઇપ કનેક્ટર
- Normal Adapter Cable
- Laser Backboard
- M3x5mm Screws*6 (Used for Slider)
- Thumb Screws*2
- M3x8mm Screws*4 (Used for OLM2S2)
- M3x12mm Screws*4 (Used for OLM2)
- કેબલ ટાઈ*10
- M3 Gasket*1
- રેંચ
- લેન્સ
- એર ફ્લો રેગ્યુલેટર
- OLM2/S2 OUC Exclusive Adapter Cable
3. સેટઅપ અને ઇન્સ્ટોલેશન
This section guides you through the assembly and installation of the LU2-10A Laser Module onto your Ortur Laser Engraver. Ensure the engraver is powered off and disconnected from the power source before beginning installation.
3.1. Installation Tutorial Video
Video: A detailed installation tutorial for the Ortur Laser Master 2 Pro S2 LU2-10A, demonstrating step-by-step assembly and connection procedures.
3.2. Laser Module Installation Steps
- Attach the laser module to the engraver's carriage.
- Secure the laser module using the provided thumbscrews.
- Insert the 5-pin terminal of the dedicated laser line into the laser module's port.
- Connect the other end of the laser line to the appropriate port on the engraver's control board.
- Install the laser shield onto the laser module to ensure eye protection during operation.
- Connect the air assist hose to the air intake port on the laser module and to an external air pump (not included).
Image: The Ortur LU2-10A Laser Module actively cutting a piece of wood, demonstrating its operational capability.
4. ઓપરેટિંગ સૂચનાઓ
The Ortur LU2-10A Laser Module offers powerful and precise capabilities for various materials.
4.1. મુખ્ય લક્ષણો
- વ્યાપક સુસંગતતા: Compatible with Ortur Laser Master 2, Ortur Laser Master 2 S2, Ortur Laser Master 2Pro S2, and Ortur Laser Master 3 Laser Engravers.
- Material Versatility: Engrave and cut acrylic, metal, wood, stainless steel, glass, ceramics, leather, food, paper, fabric, and more.
- શક્તિશાળી આઉટપુટ: True 10000mW laser output for effective cutting and engraving.
- ઉચ્ચ ચોકસાઇ: Compressed spot size of 0.05mm x 0.1mm for detailed work.
- ઉચ્ચ કાર્યક્ષમતા: Lightweight design (235g) allows for engraving speeds up to 15000mm/min.
- ડ્યુઅલ ફેન કૂલિંગ: Optimized cooling system ensures stable long-term operation without overheating.
- સ્થિર કામગીરી: 24V electrical system and high-quality cables support 24 hours of uninterrupted, consistent engraving.
4.2. Engraving and Cutting Capabilities
The LU2-10A module is capable of cutting various materials with significant thickness:
- Up to 30mm acrylic.
- Up to 20mm wood.
Image: An internal diagram illustrating how two 5.5W laser beams are combined using light combing lenses to achieve a true 10W output with a precise 0.05 x 0.1mm compressed spot.
Image: The Ortur LU2-10A Laser Module highlighting its air intake for cooling and its lightweight design (only 235g), contributing to high engraving speeds.
છબી: એક પારદર્શક view of the Ortur LU2-10A Laser Module, showing the internal arrangement of two 5.5W lasers combining to form a single 10W output beam.
Image: The Ortur LU2-10A Laser Module featuring its built-in air assist system, with an example showing a cleaner cut (labeled "Ours") compared to a cut without air assist (labeled "Other").

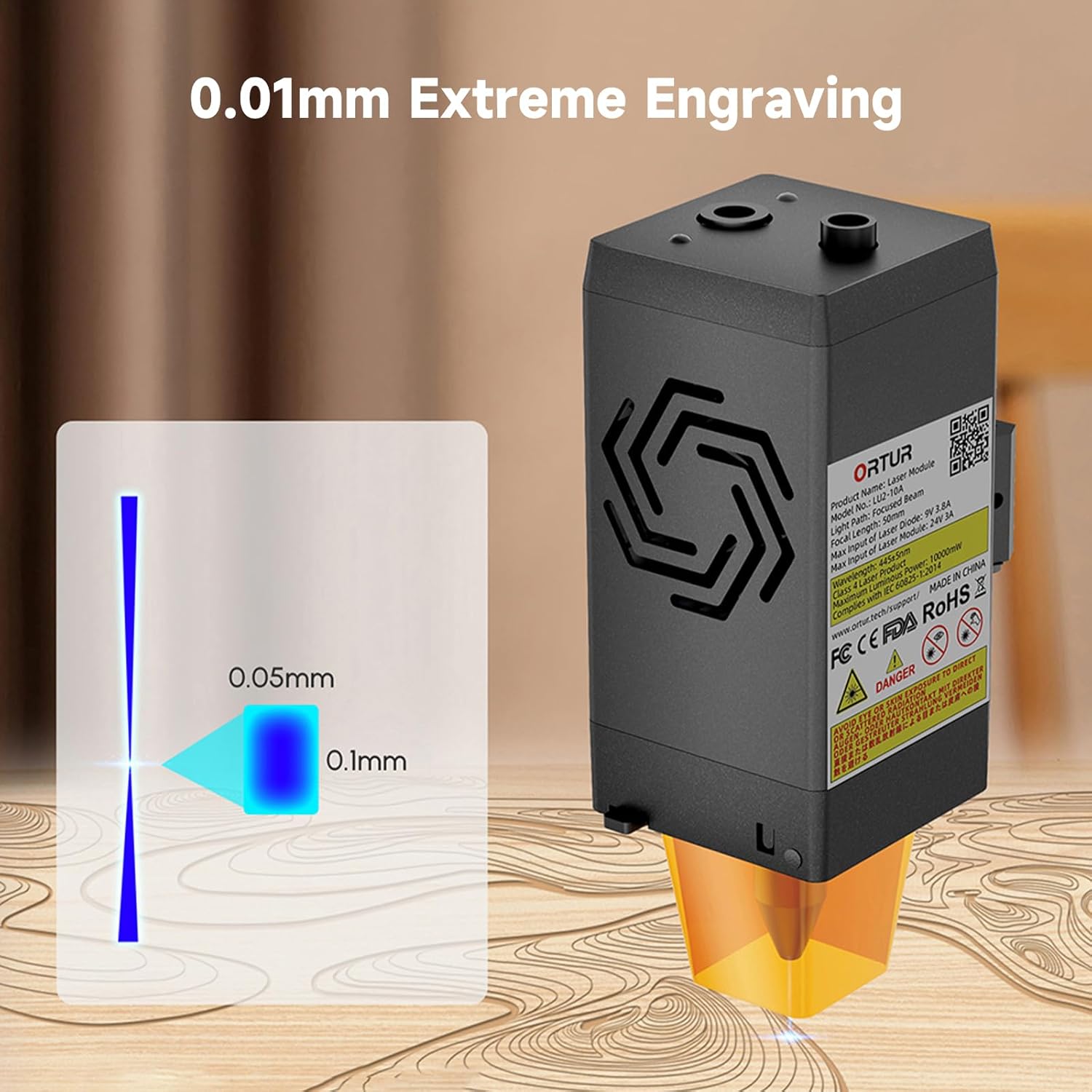

Image: A visual representation of the laser's compressed spot, showing its dimensions of 0.05mm x 0.1mm, which enables extreme precision in engraving.
5. જાળવણી
Regular maintenance ensures optimal performance and extends the lifespan of your laser module.
- લેન્સ સફાઈ: Periodically clean the laser lens with a soft, lint-free cloth and appropriate lens cleaning solution to prevent residue buildup that can affect laser performance.
- Air Assist Nozzle: Ensure the air assist nozzle is clear of debris to maintain effective airflow during cutting and engraving.
- ઠંડક ચાહકો: Check the dual cooling fans for dust accumulation and clean them gently to ensure proper heat dissipation.
- કેબલ નિરીક્ષણ: Regularly inspect all cables for any signs of wear, damage, or loose connections.
6. મુશ્કેલીનિવારણ
This section addresses common issues you might encounter with your Ortur LU2-10A Laser Module.
| સમસ્યા | સંભવિત કારણ | ઉકેલ |
|---|---|---|
| લેસર ફાયરિંગ નથી કરતું અથવા નબળું આઉટપુટ. |
|
|
| Inconsistent engraving/cutting results. |
|
|
| Air assist not functioning. |
|
|
7. સ્પષ્ટીકરણો
| લક્ષણ | વિગત |
|---|---|
| ઉત્પાદન પરિમાણો | 4.72 x 1.97 x 1.73 ઇંચ |
| આઇટમ મોડલ નંબર | Ortur-LaserMaster2-ProS2 (LU2-10A variant) |
| વસ્તુનું વજન | 1.54 પાઉન્ડ |
| લેસર આઉટપુટ પાવર | ૧૦,૦૦૦ મેગાવોટ (૧૦ વોટ) |
| Compressed Spot Size | 0.05mm x 0.1mm |
| કોતરણી ઝડપ | ૧૦૦૦૦ મીમી/મિનિટ સુધી |
| કૂલિંગ સિસ્ટમ | Dual Fan Cooling |
| ઇલેક્ટ્રિકલ સિસ્ટમ | 24 વી |
| સુસંગતતા | Ortur Laser Master 2, 2 S2, 2Pro S2, 3 |
8. વોરંટી અને સપોર્ટ
For warranty information, technical support, or further assistance, please refer to the official Ortur webસાઇટ પર જાઓ અથવા તેમની ગ્રાહક સેવાનો સીધો સંપર્ક કરો. ખરીદીના પુરાવા તરીકે તમારી ખરીદી રસીદ રાખો.
Official Ortur Webસાઇટ: www.ortur.net
