1. ઉત્પાદન ઓવરview
This manual provides instructions for the Fanttik F2 Master Mini Cordless Rotary Tool Kit and the Fanttik D2 PLUS Laser Level. These tools are designed for precision tasks and accurate leveling applications.
Image 1.1: The Fanttik F2 Master Mini Cordless Rotary Tool (left) and D2 PLUS Laser Level (right).
1.1 F2 Master Mini Cordless Rotary Tool
The F2 Master is a compact, cordless rotary tool featuring a brushless hollow cup motor for reduced noise and enhanced performance. It offers 5 adjustable speed settings for various precision tasks such as grinding, polishing, drilling, and engraving. The tool includes a Revostor Hub for organized accessory storage and a durable aluminum case with a pop-up mechanism for easy access.
1.2 D2 PLUS Laser Level
The D2 PLUS is a high-precision laser level utilizing advanced high-brightness green laser technology. It provides a projection range of up to 100 ft with an accuracy of 3/32 inches at 30 ft. It features independent or combined vertical and horizontal line projection, a wide-angle expansion for vertical lines, and a pulse mode for extended working range with an optional receiver.
2. સલામતી માહિતી
ઉત્પાદનને ઈજા અને નુકસાન અટકાવવા માટે હંમેશા નીચેની સલામતી સાવચેતીઓનું પાલન કરો.
- ઉપયોગ કરતા પહેલા બધી સૂચનાઓ વાંચો.
- Wear appropriate personal protective equipment, such as safety glasses, when operating the rotary tool.
- કાર્યક્ષેત્રને સ્વચ્છ અને સારી રીતે પ્રકાશિત રાખો.
- વિસ્ફોટક વાતાવરણમાં, જેમ કે જ્વલનશીલ પ્રવાહી, વાયુઓ અથવા ધૂળની હાજરીમાં પાવર ટૂલ્સનું સંચાલન કરશો નહીં.
- પાવર ટૂલ ચલાવતી વખતે બાળકો અને નજીકના લોકોને દૂર રાખો.
- બાળકોની પહોંચની બહાર સાધનોનો સંગ્રહ કરો.
2.1 લેસર સલામતી
The D2 PLUS Laser Level is a Class II laser product. Observe the following precautions:
- સાવધાન: લેસર બીમમાં સીધા ન જુઓ.
- ઇરાદાપૂર્વક લોકો કે પ્રાણીઓ પર લેસર બીમ ન ચલાવો.
- Avoid exposing the eyes to direct or reflected laser beams.
- Do not modify the laser device.
- આ માર્ગદર્શિકામાં વર્ણવ્યા મુજબ જ ઉપયોગ કરો.
3. પેકેજ સામગ્રી
ખાતરી કરો કે નીચે સૂચિબદ્ધ બધી વસ્તુઓ તમારા પેકેજમાં શામેલ છે:
Image 3.1: Contents of the D2 PLUS Laser Level package.
- D2 PLUS લેસર લેવલ
- યુએસબી-સી કેબલ
- ચુંબકીય કૌંસ
- Target Plate
- ડ્રોસ્ટ્રિંગ બેગ
- વપરાશકર્તા માર્ગદર્શિકા
- F2 Master Mini Cordless Rotary Tool
- F2 Master Revostor Hub with 35 accessories (3/32" / 2.3mm)
- F2-M2 Magnetic Wrench
4. F2 Master Rotary Tool - Setup & Operation
૨.૧ ઘટકો ઓવરview
- Rotary Tool Body: Main unit with motor and battery.
- કોલેટ: Holds the accessory bits.
- Speed Indicator Lights: Display current speed setting.
- Power/Speed Button: Controls power and speed.
- રિવોસ્ટર હબ: Magnetic stand for organizing accessories.
- Aluminum Case: Protective case with pop-up mechanism.
4.2 Charging the Rotary Tool
The F2 Master is battery-powered. Ensure it is fully charged before first use.
- Connect the USB-C charging cable to the charging port on the rotary tool.
- કેબલના બીજા છેડાને યોગ્ય USB પાવર એડેપ્ટર સાથે જોડો (શામેલ નથી).
- The indicator lights will show charging status. Once fully charged, disconnect the cable.
4.3 એસેસરીઝ જોડવી
The Revostor Hub provides organized storage and easy access to various accessories.
Image 4.1: The Revostor Hub for organized accessory storage.
- Ensure the rotary tool is turned off.
- Unscrew the collet nut.
- Insert the desired accessory bit (3/32" / 2.3mm shank) into the collet.
- Tighten the collet nut securely using the F2-M2 Magnetic Wrench to hold the bit in place. Do not overtighten.
૪.૧ પાવર ચાલુ/બંધ અને ગતિ ગોઠવણ
The F2 Master features a brushless motor for efficient and quiet operation.
Image 4.2: The F2 Master operates quietly at 32 dB when idle.

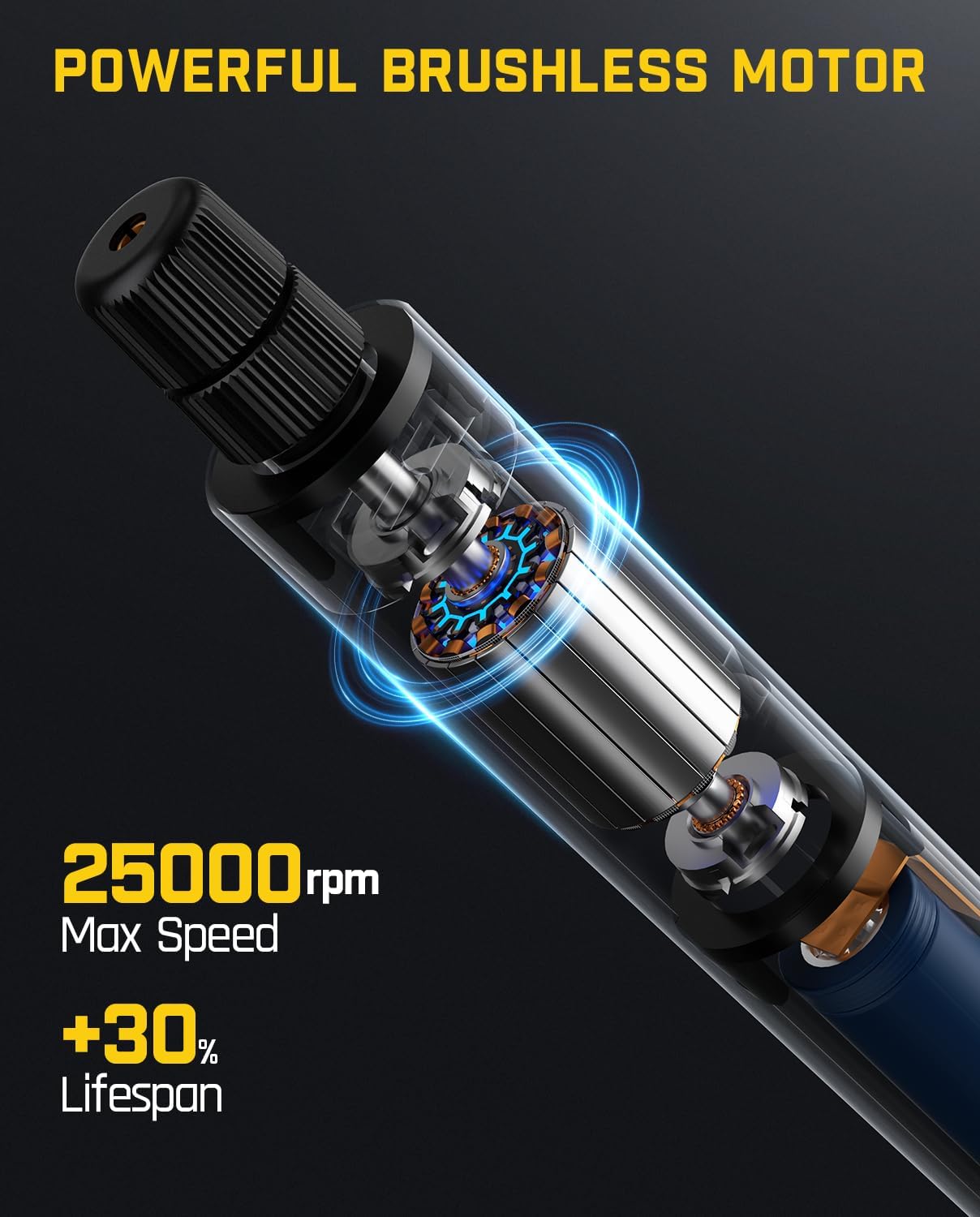

Image 4.3: The F2 Master's powerful brushless motor provides up to 25,000 RPM.
- પાવર ચાલુ કરવા માટે: Press and hold the Power/Speed button until the indicator lights illuminate. The tool will start at the lowest speed setting.
- ઝડપ સમાયોજિત કરવા માટે: Briefly press the Power/Speed button to cycle through the 5 available speed settings. The indicator lights will show the selected speed.
- પાવર ઓફ કરવા માટે: Press and hold the Power/Speed button until the indicator lights turn off.
5. D2 PLUS Laser Level - Setup & Operation
૨.૧ ઘટકો ઓવરview
- Laser Emitters: Project horizontal and vertical green laser lines.
- નિયંત્રણ પેનલ: Buttons for power, mode selection, and pulse mode.
- Pendulum Lock: Secures the pendulum for manual mode or transport.
- બેટરી સૂચક: બાકીની બેટરી જીવન દર્શાવે છે.
- યુએસબી-સી ચાર્જિંગ પોર્ટ: આંતરિક બેટરી રિચાર્જ કરવા માટે.
5.2 Charging the Laser Level
The D2 PLUS has a 2600 mAh rechargeable battery, providing 7-14 hours of continuous use.
Image 5.1: The D2 PLUS Laser Level features a USB-C charging port.
- Connect the provided USB-C charging cable to the charging port on the side of the laser level.
- કેબલના બીજા છેડાને યોગ્ય USB પાવર એડેપ્ટર સાથે જોડો (શામેલ નથી).
- The battery indicator lights will show charging status. Disconnect once fully charged.
૪.૧ પાવર ચાલુ/બંધ અને મોડ પસંદગી
The D2 PLUS uses an OSRAM green laser, which is four times brighter than traditional red lasers.
Image 5.2: The D2 PLUS utilizes a bright OSRAM green laser.
Image 5.3: The D2 PLUS offers three distinct line modes.
Image 5.4: Manual Mode (left) and Self-Leveling Mode (right) applications.
- સ્વ-સ્તરીકરણ મોડ: Unlock the pendulum by sliding the pendulum lock switch to the 'unlocked' position. Press the power button to turn on the laser. The laser will self-level within 4 degrees. If the tilt exceeds 4 degrees, the laser will flash rapidly to indicate it is out of level. Press the power button to cycle through horizontal line, vertical line, or both.
- મેન્યુઅલ મોડ: Lock the pendulum by sliding the pendulum lock switch to the 'locked' position. Press and hold the power button for 3 seconds to turn on the laser. The laser lines can now be projected at any angle without self-leveling. Press the power button to cycle through horizontal line, vertical line, or both.
- પલ્સ મોડ: In self-leveling mode, briefly press the pulse mode button (often indicated by a 'P' or wave icon) to activate pulse mode. This mode extends the working range up to 200 ft when used with a compatible laser receiver (not included), especially useful in bright environments.
Image 5.5: Pulse Mode extends the working range of the D2 PLUS Laser Level.
૫.૩ લેસર લેવલ માઉન્ટ કરવું
The D2 PLUS can be mounted using its integrated magnetic bracket or a tripod.
Image 5.6: The D2 PLUS offers high precision, up to ±3/32 in at 30 ft.
- ચુંબકીય કૌંસ: Attach the magnetic bracket to metallic surfaces for stable positioning.
- ટ્રાઇપોડ માઉન્ટિંગ: The laser level has a standard tripod thread (1/4"-20) on its base for mounting to a tripod (not included).
6. જાળવણી
Proper maintenance ensures the longevity and optimal performance of your tools.
Image 6.1: The D2 PLUS Laser Level is designed for durability against dust, water, and minor impacts.
- સફાઈ: સોફ્ટનો ઉપયોગ કરો, ડીamp cloth to clean the tool surfaces. Do not use abrasive cleaners or solvents. For the laser level, gently wipe the laser windows with a clean, lint-free cloth.
- સંગ્રહ: Store both tools in their original packaging or a protective case in a dry, cool place, away from direct sunlight and extreme temperatures. Ensure the pendulum lock on the laser level is engaged during storage and transport.
- બેટરી સંભાળ: For optimal battery life, charge the tools regularly, even if not in frequent use. Avoid fully discharging the batteries for extended periods.
- નિરીક્ષણ: Periodically inspect the tools for any signs of damage, loose parts, or wear. Do not operate damaged tools.
7. મુશ્કેલીનિવારણ
સામાન્ય સમસ્યાઓ અને તેમના ઉકેલો માટે નીચે આપેલ કોષ્ટકનો સંદર્ભ લો.
| સમસ્યા | સંભવિત કારણ | ઉકેલ |
|---|---|---|
| F2 Master does not turn on. | ઓછી બેટરી. | Charge the rotary tool using the USB-C cable. |
| F2 Master accessory bit is loose. | Collet nut not tightened sufficiently. | Ensure the collet nut is securely tightened with the magnetic wrench. |
| D2 PLUS laser lines are flashing rapidly. | Laser level is out of its self-leveling range (>4 degrees). | Place the laser level on a flatter surface or adjust its position until the flashing stops. |
| D2 PLUS laser lines are dim or not visible outdoors. | તેજસ્વી આસપાસનો પ્રકાશ. | Activate Pulse Mode and use a compatible laser receiver (not included). |
| D2 PLUS laser lines are not self-leveling. | Pendulum lock is engaged (Manual Mode). | Slide the pendulum lock switch to the 'unlocked' position for Self-Leveling Mode. |
If you encounter issues not covered here, please contact Fanttik customer support.
8. સ્પષ્ટીકરણો
8.1 Fanttik F2 Master Mini Cordless Rotary Tool
| લક્ષણ | સ્પષ્ટીકરણ |
|---|---|
| મોટરનો પ્રકાર | Brushless Hollow Cup Motor |
| મહત્તમ રોટેશનલ સ્પીડ | 25,000 RPM |
| ઝડપ સેટિંગ્સ | 5 એડજસ્ટેબલ સેટિંગ્સ |
| Noise Level (Idle) | 32 ડીબી |
| વજન | 0.22 પાઉન્ડ |
| Accessory Shank Size | 3/32" / 2.3mm |
| પાવર સ્ત્રોત | બેટરી સંચાલિત |
| ખાસ લક્ષણો | Portable, Cordless, Revostor Hub, Aluminum Case |
8.2 Fanttik D2 PLUS Laser Level
| લક્ષણ | સ્પષ્ટીકરણ |
|---|---|
| લેસર પ્રકાર | Green Laser (OSRAM) |
| લેસર વર્ગીકરણ | Class II, <1 mW |
| પ્રોજેક્શન રેન્જ | 100 ફૂટ સુધી |
| ચોકસાઈ | ±3/32 in at 30 ft |
| સ્વ-સ્તરીકરણ શ્રેણી | ±4 ડિગ્રી |
| Vertical Line Angle | 130° |
| બેટરી ક્ષમતા | 2600 એમએએચ |
| સતત ઉપયોગ સમય | 7-14 કલાક |
| ચાર્જિંગ પોર્ટ | યુએસબી-સી |
| ટકાઉપણું | Dust Resistance, Water Resistance, Resistant to fall from 1m |
9. વોરંટી અને સપોર્ટ
Fanttik products are manufactured to high-quality standards. For warranty information or technical support, please refer to the warranty card included in your package or visit the official Fanttik website. Please have your model number and purchase date available when contacting support.
For further assistance, you may contact Fanttik customer service through their official channels.
