અલ્કાટેલ XL685 વોઇસ DECT કોર્ડલેસ ફોન યુઝર મેન્યુઅલ

1. પરિચય

The Alcatel XL685 Voice is a DECT cordless phone designed for ease of use, particularly for seniors. It features a large, backlit display, big buttons, audio amplification, and a hands-free function. This manual provides detailed instructions for setting up, operating, and maintaining your phone, ensuring you can utilize all its features effectively.

Please read this manual carefully before using your phone and keep it for future reference.

2. બોક્સમાં શું છે

ખાતરી કરો કે બધી વસ્તુઓ પેકેજમાં હાજર છે:

• Alcatel XL685 Handset
• Base Unit with integrated answering machine
• પાવર એડેપ્ટર
• ટેલિફોન લાઇન કોર્ડ
• 2 AAA NiMH Rechargeable Batteries
• વપરાશકર્તા માર્ગદર્શિકા

3. ઉત્પાદન ઓવરview

Familiarize yourself with the main components and controls of your Alcatel XL685 Voice phone.

છબી 3.1: The Alcatel XL685 Voice cordless phone, showing the handset docked in its base unit. The handset features a large display, clearly visible numeric keypad, and function buttons. The base unit includes controls for the answering machine.

૩.૧ હેન્ડસેટ સુવિધાઓ

• XL Graphic Display: White backlit screen with large characters for optimal readability.
• Large, Contrasted Buttons: Easy to see and press for dialing and navigation.
• Audio Boost Button: Instantly doubles the earpiece volume by +10dB, up to a maximum of 25dB.
• હેન્ડ્સ-ફ્રી ફંક્શન: Allows conversations without holding the handset, with adjustable volume.
• સૂચક પ્રકાશ: Flashes for incoming calls.
• Direct Memory Keys (M1, M2): For quick dialing of favorite contacts.

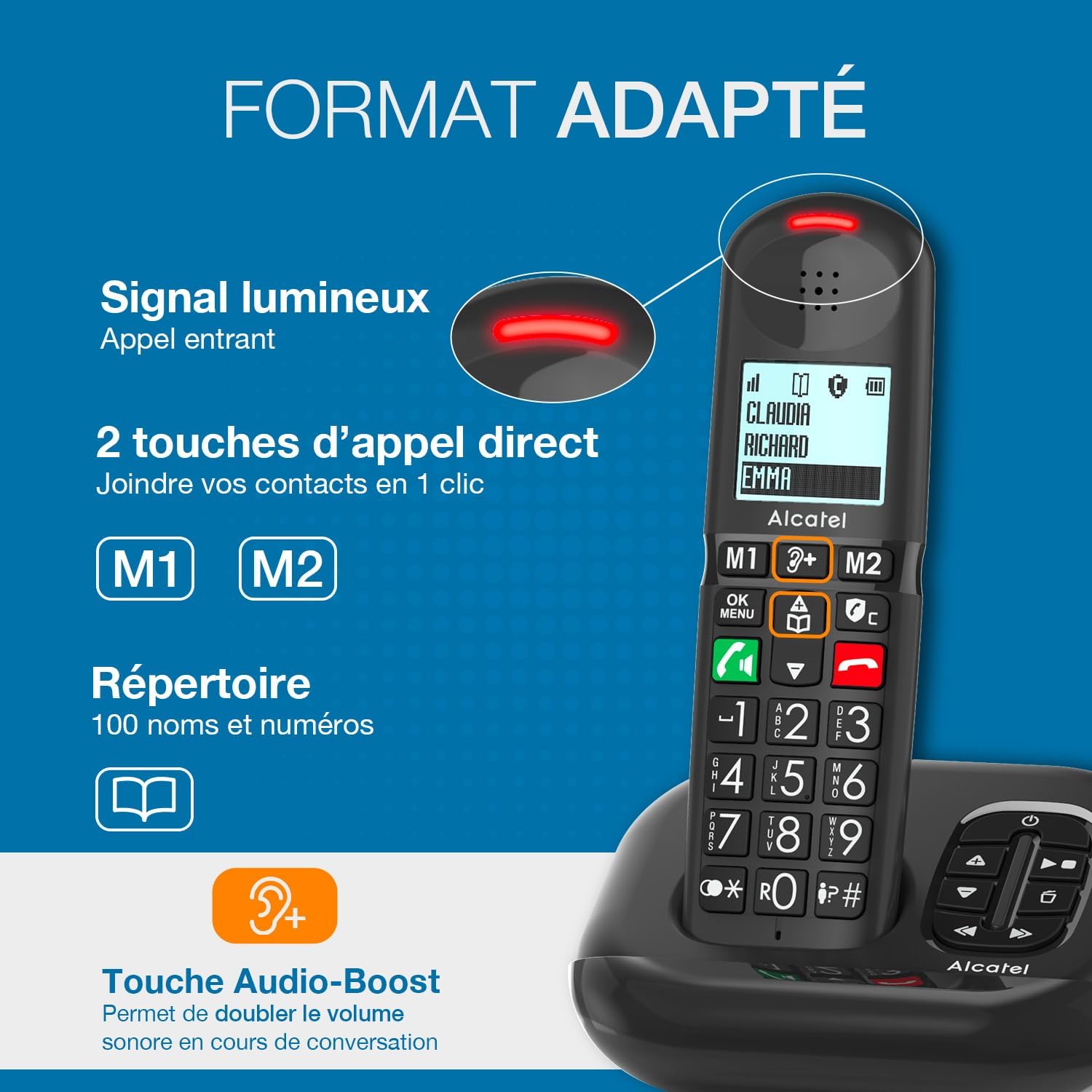

છબી 3.2: A close-up of the Alcatel XL685 Voice handset, highlighting the large display, direct call keys (M1, M2), and the Audio Boost button. The image also shows the luminous signal for incoming calls and the phonebook icon, indicating its capacity for 100 contacts.

૩.૨ બેઝ યુનિટની વિશેષતાઓ

• સંકલિત જવાબ મશીન: Up to 50 minutes of recording time.
• મેસેજ કાઉન્ટર: Digital display on the base unit shows the number of new messages.
• Answering Machine Controls: Play, stop, skip, and delete messages directly from the base.

4. સેટઅપ

Follow these steps for the initial setup of your Alcatel XL685 Voice phone.

૪.૧ બેઝ યુનિટને જોડવું

1. Connect the telephone line cord to the socket on the base unit and to your telephone wall socket.
2. Connect the power adapter to the base unit and plug it into a mains power outlet.
3. Ensure the base unit is placed on a flat, stable surface, away from other electrical appliances to avoid interference.

૨.૧ બેટરીઓ ઇન્સ્ટોલ કરવી અને ચાર્જ કરવી

1. હેન્ડસેટના પાછળના ભાગમાં બેટરી કમ્પાર્ટમેન્ટ કવર ખોલો.
2. Insert the 2 AAA NiMH rechargeable batteries, observing the correct polarity (+ and -).
3. બેટરી કમ્પાર્ટમેન્ટ કવર બંધ કરો.
4. Place the handset on the base unit. The display will show a charging indicator. Allow the handset to charge for at least 15 hours before its first use to ensure optimal battery performance.

4.3 Initial Settings (Date and Time)

After the initial charge, the phone may prompt you to set the date and time. Follow the on-screen instructions or refer to the "Settings" section in this manual for detailed steps.

5. ઓપરેટિંગ સૂચનાઓ

૪.૧ કોલ કરવા

• ડાયરેક્ટ ડાયલિંગ: Enter the phone number using the keypad, then press the Green Call button.
• ફોનબુકમાંથી: દબાવો ફોનબુક બટન, navigate to the desired contact, then press the Green Call button.
• Using Direct Memory Keys (M1/M2): દબાવો અને પકડી રાખો M1 or M2 button for a few seconds to dial the stored number.

૪.૨ કોલ્સ પ્રાપ્ત કરવા

જ્યારે ફોન વાગે, ત્યારે દબાવો Green Call button to answer. The indicator light on the handset will flash during an incoming call.

૪.૨ હેન્ડ્સ-ફ્રી ફંક્શન

ક aલ દરમિયાન, દબાવો Hands-Free button (speaker icon) to activate or deactivate the speakerphone. Adjust the volume using the navigation keys.

5.4 Audio Boost

For increased listening volume during a call, press the dedicated Audio Boost button (ear icon with '+'). This will amplify the sound by an additional 10dB, up to 25dB total. Press it again to deactivate.

5.5 Phonebook Management

Your phone can store up to 100 contacts. Each contact can have a name and number.

• સંપર્ક ઉમેરવો: Access the menu, select "Phonebook", then "Add New". Enter the name and number, then save.
• Editing a Contact: Navigate to the contact in the phonebook, select "Edit", make changes, and save.
• Deleting a Contact: Navigate to the contact, select "Delete", and confirm.
• Assigning Direct Memory Keys (M1/M2): Access the menu, select "Settings", then "Direct Memory". Choose M1 or M2 and assign a contact from your phonebook.

૨.૨ જવાબ આપતી મશીન

The integrated answering machine can record up to 50 minutes of messages.

• સક્રિય/નિષ્ક્રિય: દબાવો ચાલુ/બંધ બટન બેઝ યુનિટ પર અથવા હેન્ડસેટ મેનૂ દ્વારા.
• સંદેશાઓ વગાડી રહ્યા છે: દબાવો પ્લે બટન on the base unit. Use the skip buttons to move between messages.
• સંદેશાઓ કાઢી નાખવું: During message playback, press the ડિલીટ બટન આધાર એકમ પર.
• જાહેરાત રેકોર્ડ કરવી: Access the answering machine settings via the handset menu to record your personalized greeting.

6. Call Blocking Features

The Alcatel XL685 Voice offers advanced call blocking to protect you from unwanted calls.

છબી 6.1: This image illustrates the call blocking features of the Alcatel XL685 Voice. It shows the dedicated call blocking button on the handset, explaining both manual blocking (up to 100 numbers) and automatic blocking modes, which only allow registered contacts to ring through.

6.1 Manual Call Blocking

You can block up to 100 unwanted numbers manually.

• During an Incoming Call: સમર્પિત દબાવો Call Block button (shield icon) to immediately block the number.
• From Call Log: Access the call log, select the unwanted number, then press the Call Block button to add it to the block list.

6.2 Automatic Call Blocking

Activate the automatic mode to only receive calls from numbers stored in your phonebook or VIP list.

• Access the phone's menu, navigate to "Call Blocking" settings, and select "Automatic Mode".
• In this mode, all anonymous calls will be blocked automatically.

7. જાળવણી

Proper care ensures the longevity of your phone.

• સફાઈ: સોફ્ટનો ઉપયોગ કરો, ડીamp cloth to clean the handset and base unit. Do not use abrasive cleaners or solvents.
• બેટરી સંભાળ: Only use the supplied rechargeable NiMH batteries. If the phone will not be used for an extended period, remove the batteries.
• પર્યાવરણીય પરિસ્થિતિઓ: ફોનને સીધો સૂર્યપ્રકાશ, અતિશય તાપમાન અથવા ઉચ્ચ ભેજના સંપર્કમાં આવવાનું ટાળો.

8. મુશ્કેલીનિવારણ

તમને આવી શકે તેવી સામાન્ય સમસ્યાઓના ઉકેલો અહીં આપેલા છે:

9. સ્પષ્ટીકરણો

10. વોરંટી અને સપોર્ટ

Your Alcatel XL685 Voice phone comes with a manufacturer's warranty.

• ઉત્પાદકની વોરંટી: 2 વર્ષ.
• For technical support or warranty claims, please refer to the contact information provided with your purchase or visit the official Alcatel support webસાઇટ
