FTOYIN Electric Nail Drill Professional User Manual

1. પરિચય

Thank you for choosing the FTOYIN Electric Nail Drill Professional. This rechargeable nail file is designed for efficient and precise nail care, suitable for both home users and salon professionals. It is ideal for various tasks including filing, shaping, polishing, and removing acrylic or gel nails. Please read this manual thoroughly before first use to ensure safe and optimal operation.

Figure 1: FTOYIN Electric Nail Drill Professional and included accessories.

2. સલામતી માહિતી

To prevent injury or damage to the device, always adhere to the following safety precautions:

• ઉપકરણને પાણી અથવા ભીના વાતાવરણથી દૂર રાખો.
• ઉપકરણને ડિસએસેમ્બલ કરશો નહીં અથવા તેને જાતે રિપેર કરવાનો પ્રયાસ કરશો નહીં. સેવા માટે લાયક કર્મચારીઓનો સંપર્ક કરો.
• Always unplug the device before cleaning or when not in use for extended periods.
• ઉપયોગ કરતા પહેલા ખાતરી કરો કે પાવર એડેપ્ટર અને કેબલને નુકસાન થયું નથી.
• બાળકોની પહોંચથી દૂર રાખો.
• Wear appropriate eye protection during operation to prevent eye injury from flying debris.
• Avoid touching the rotating drill bit during operation.
• Do not apply excessive pressure, which can cause overheating or damage to the nail or device.

3. પેકેજ સામગ્રી

ખાતરી કરો કે બધી વસ્તુઓ તમારા પેકેજમાં હાજર છે:

• FTOYIN Electric Nail Drill Main Unit
• હેન્ડપીસ
• 7 Professional Grinding Heads (Drill Bits)
• સેન્ડિંગ બેન્ડ્સ
• યુએસબી ટાઇપ-સી ચાર્જિંગ કેબલ
• વપરાશકર્તા માર્ગદર્શિકા

4. લક્ષણો

• હાઇ સ્પીડ પર્ફોર્મન્સ: Equipped with high-quality bearings, offering adjustable speeds up to 45,000 RPM for efficient nail work.
• લાંબી બેટરી જીવન: High-capacity battery provides 8-10 hours of working time on a 2-hour charge.
• એચડી એલસીડી ડિસ્પ્લે: Clearly shows speed, rotation direction (forward/reverse), and remaining battery level.
• ઓછો અવાજ અને કંપન: Designed for quiet and smooth operation, ensuring a comfortable user experience.
• ઉત્તમ ગરમીનું શોષણ: High-quality aluminum alloy housing and unique ventilation holes prevent overheating.
• Multi-Purpose Drill Bits: Includes 7 professional grinding heads suitable for various nail types and tasks (carving, milling, sanding, polishing, etc.).
• પોર્ટેબલ ડિઝાઇન: Compact and lightweight with a belt clip for easy carrying and use anywhere.

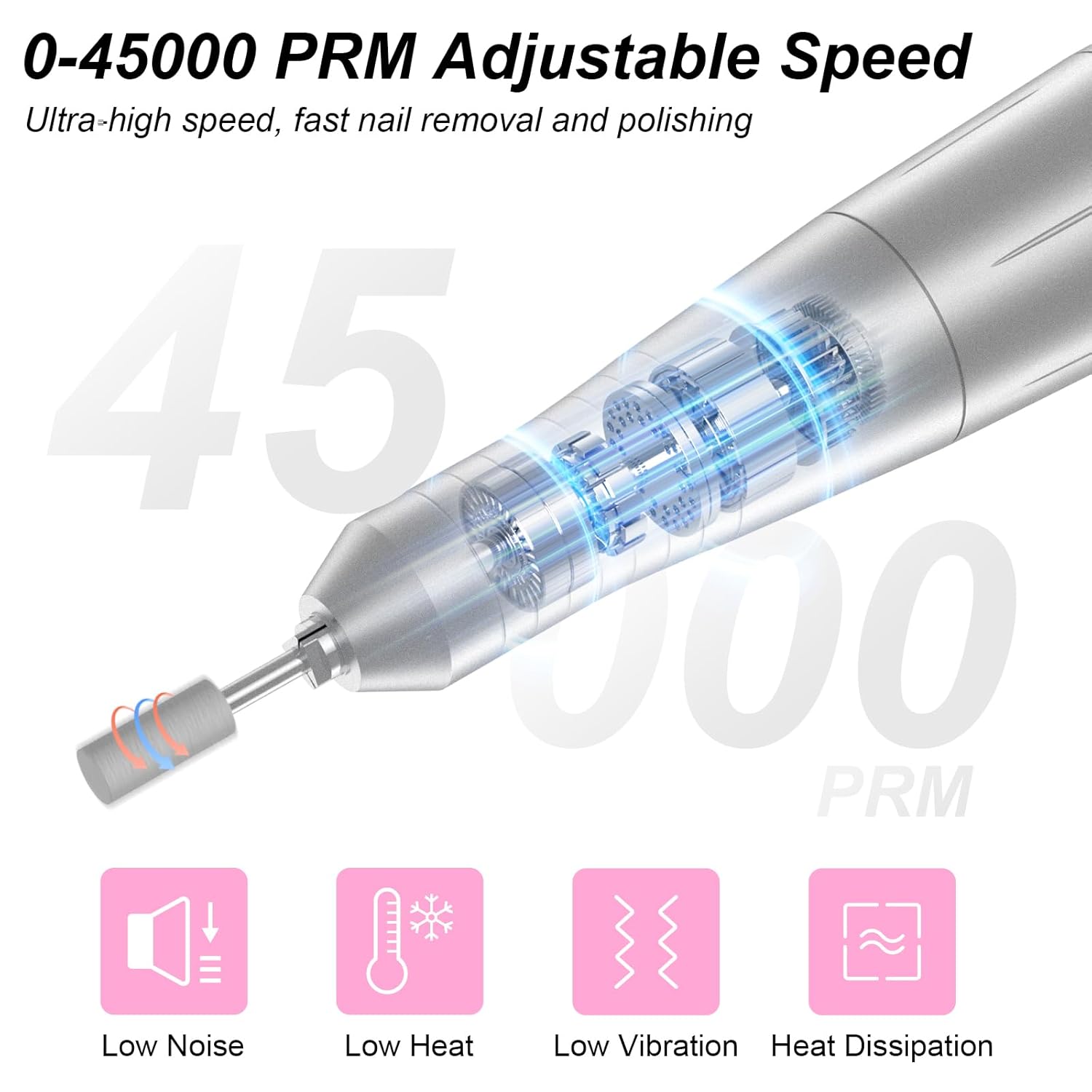

Figure 2: High-speed motor and low vibration design.

Figure 3: Smart Digital Display for easy monitoring.

Figure 4: Benefits of the advanced motor and design.

5. સ્પષ્ટીકરણો

6. સેટઅપ

6.1 ઉપકરણને ચાર્જ કરવું

Before first use, fully charge the nail drill. The LCD display will indicate the battery level.

1. Connect the USB Type-C charging cable to the charging port on the main unit.
2. Connect the other end of the cable to a compatible USB power adapter (DC5V 2.0A recommended) or a computer USB port.
3. The battery icon on the LCD will show charging progress. A full charge typically takes about 2 hours.

આકૃતિ 5: બેટરી અને ચાર્જિંગ માહિતી.

Figure 6: Fast charging capability.

6.2 Attaching and Changing Drill Bits

The handpiece features a twist-lock mechanism for secure bit changes.

1. Ensure the device is turned off before changing bits.
2. Twist the handpiece in the unlocking direction (usually counter-clockwise) until you hear a click.
3. Remove the current bit or insert the desired bit firmly into the chuck.
4. Twist the handpiece in the locking direction (usually clockwise) until it clicks into place, securing the bit.

Figure 7: Step-by-step guide for replacing drill bits.

આકૃતિ 8: ઓવરview of the included multifunctional drill bits.

7. ઓપરેટિંગ સૂચનાઓ

૪.૧ પાવર ચાલુ/બંધ અને ગતિ ગોઠવણ

1. Connect the handpiece to the main unit.
2. Turn the speed adjustable knob (located on top of the main unit) clockwise to power on the device and increase speed. The LCD will display the current RPM.
3. Turn the knob counter-clockwise to decrease speed and turn off the device.

Figure 9: Speed adjustable knob for power and RPM control.

7.2 Changing Rotation Direction (F/R)

The device supports both forward (F) and reverse (R) rotation, suitable for left-handed and right-handed users.

• Press the F/R button (located on the side of the main unit) to switch between forward and reverse rotation.
• The LCD display will indicate the current rotation direction (F or R).

Figure 10: Forward/Reverse switch for directional control.

7.3 Recommended Speed Settings

• ૦-૧૫૦૦૦ આરપીએમ: Ideal for natural nails and cuticle work.
• ૦-૧૫૦૦૦ આરપીએમ: Suitable for gel and acrylic nail removal or shaping.
• ૦-૧૫૦૦૦ આરપીએમ: For professional nail art work and heavy-duty tasks.

Figure 11: Recommended RPM settings for various applications.

૬.૩ સામાન્ય ઉપયોગ ટિપ્સ

• Always start with a low speed and gradually increase as needed.
• Use light pressure and keep the drill bit moving to avoid heat buildup and damage to the nail.
• Practice on artificial nails before working on natural nails.
• Clean the drill bits after each use to maintain hygiene and performance.

Figure 12: The nail drill is suitable for various users and applications.

8. જાળવણી

8.1 સફાઈ

• Disconnect the handpiece from the main unit and ensure the device is off before cleaning.
• Use a soft, dry cloth to wipe down the main unit and handpiece.
• Clean drill bits with a brush and disinfectant solution after each use. Ensure they are completely dry before storage.
• ઘર્ષક ક્લીનર્સનો ઉપયોગ કરશો નહીં અથવા ઉપકરણને પાણીમાં બોળશો નહીં.

8.2 સંગ્રહ

• Store the device and accessories in a cool, dry place, away from direct sunlight and moisture.
• Keep the drill bits in their designated case to prevent damage and loss.

9. મુશ્કેલીનિવારણ

10. વોરંટી અને સપોર્ટ

FTOYIN products are manufactured to high-quality standards. For any issues or questions regarding your Electric Nail Drill Professional, please contact the seller or manufacturer directly through the platform where you purchased the product. Please retain your proof of purchase for warranty claims.
