NEXTIME Twitter Cuckoo Wall Clock with Pendulum User Manual

1. પરિચય

This manual provides instructions for the setup, operation, and maintenance of your NEXTIME Twitter Cuckoo Wall Clock with Pendulum. This clock combines a classic cuckoo clock design with modern features, offering a unique timekeeping experience.

Key features include an hourly chirping bird, a gently swinging pendulum, and silent clock movement (no ticking sound). The clock also offers options to disable the chirping sound during nighttime hours or permanently.

છબી 1: આગળ view of the NEXTIME Twitter Cuckoo Wall Clock in White, showing the clock face, birdhouse, and pendulum.

2. બોક્સમાં શું છે

• NEXTIME Twitter Cuckoo Wall Clock unit
• લોલક
• સૂચના માર્ગદર્શિકા (આ દસ્તાવેજ)

નોંધ: 3 AA batteries are required for operation and are not included.

3. સેટઅપ સૂચનાઓ

1. બેટરીઓ ઇન્સ્ટોલ કરો:

   Locate the battery compartment on the back of the clock. Insert 3 AA batteries, ensuring correct polarity (+/-). Close the battery compartment cover securely.



   છબી 2: પાછળ view of the clock, highlighting the battery compartment and control switches.

2. લોલક જોડો:

   Carefully attach the pendulum to the hook located at the bottom of the clock unit. Ensure it swings freely.

3. સમય સેટ કરો:

   Use the time-setting knob or wheel (usually located on the back or side of the clock mechanism) to set the correct time. Rotate the hands clockwise until the desired time is displayed. The cuckoo mechanism will synchronize automatically after the first full hour cycle.
4. ઘડિયાળ લગાવવી:

   The clock is designed for wall mounting. Use a suitable wall anchor and screw (not included) to securely hang the clock from the keyhole slot on its back. Ensure the clock is level for optimal pendulum operation.

4. ઓપરેટિંગ સૂચનાઓ

4.1 હોurly Chime (Cuckoo Sound)

The NEXTIME Twitter Cuckoo Wall Clock features an hourly chirping sound, where a bird emerges from its house to announce the hour. This mechanism is designed to operate silently between 10:00 PM and 7:00 AM to prevent disturbance during sleep.

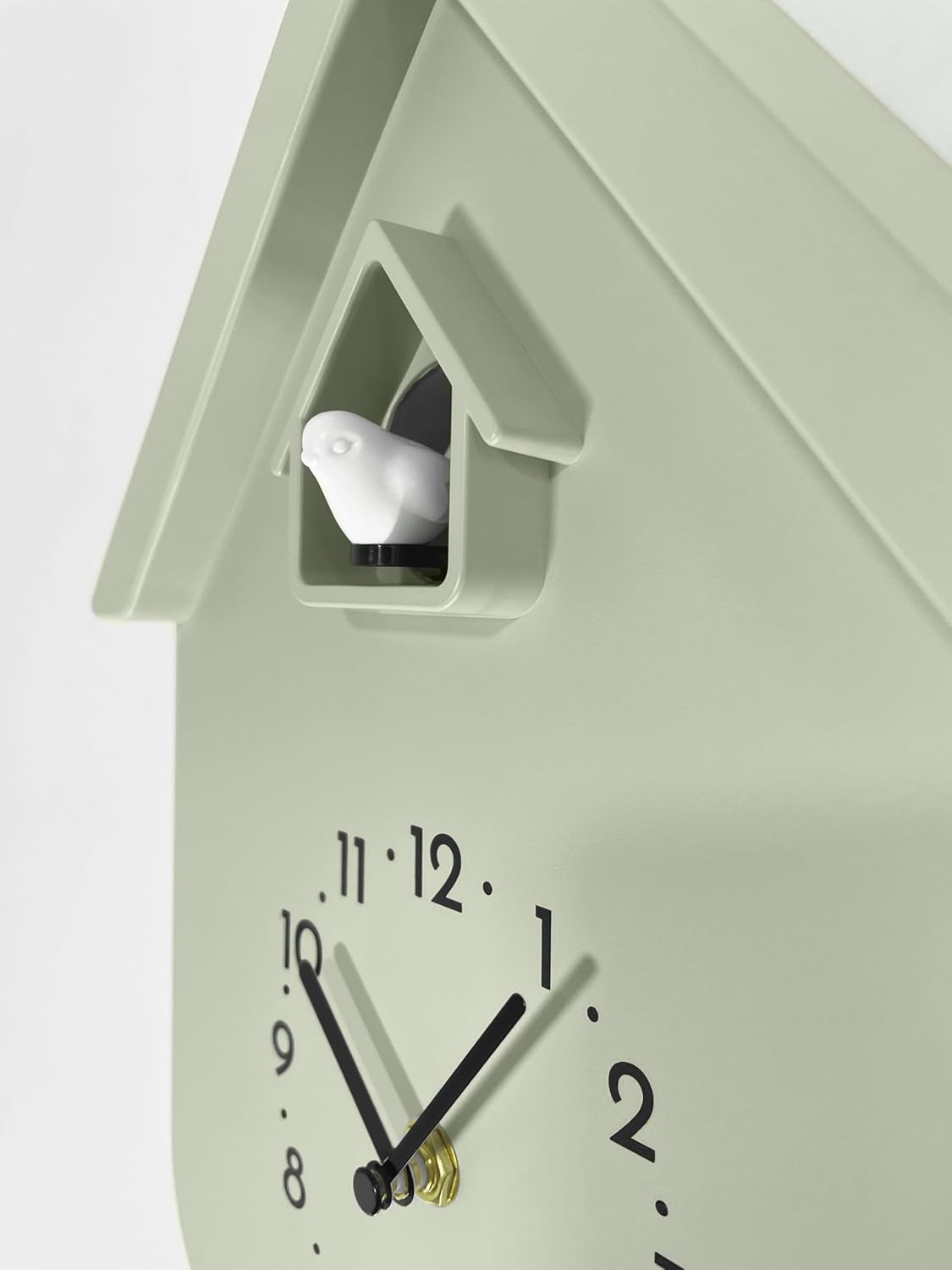

છબી 3: ક્લોઝ-અપ view of the cuckoo bird in its birdhouse, ready to chime.

4.2 Disabling the Chime

The clock offers options to manage the hourlવાય ચીમ:

• Nighttime Silence: The chime is automatically disabled between 10:00 PM and 7:00 AM. No manual adjustment is needed for this feature.
• Permanent Silence: To permanently disable the chirping sound, locate the ON/OFF switch on the back of the clock (refer to Image 2). Slide the switch to the "OFF" position.

4.3 Silent Motion

The clock features a silent movement mechanism, meaning there is no audible ticking sound during its operation, only the hourly chime (if enabled).

5. જાળવણી

• સફાઈ: Wipe the clock surface with a soft, dry cloth. Avoid using abrasive cleaners or solvents, as these may damage the finish.
• બેટરી રિપ્લેસમેન્ટ: Replace all 3 AA batteries when the clock hands slow down or the cuckoo mechanism stops functioning correctly. Always replace all batteries at the same time with new ones.
• પ્લેસમેન્ટ: Avoid placing the clock in direct sunlight or near extreme temperature changes, which can affect its accuracy and material integrity.

6. મુશ્કેલીનિવારણ

7. સ્પષ્ટીકરણો

• બ્રાન્ડ: આગામી સમય
• મોડલ નંબર: 3328WI
• ડિસ્પ્લે પ્રકાર: એનાલોગ
• શૈલી: આધુનિક કોયલ
• વિશેષ લક્ષણ: Hourly Chime (with nighttime silence), Silent Motion
• ઉત્પાદન પરિમાણો: 8.46"W x 11.6"H (Clock body, excluding pendulum)
• પાવર સ્ત્રોત: બેટરી સંચાલિત (3 AA બેટરી જરૂરી, શામેલ નથી)
• સામગ્રી: પ્લાસ્ટિક
• માઉન્ટ કરવાનો પ્રકાર: વોલ માઉન્ટ
• વસ્તુનું વજન: Approximately 0.705 ounces (excluding batteries)

Image 4: Diagram showing the dimensions of the NEXTIME Twitter Cuckoo Wall Clock.

8. વોરંટી અને સપોર્ટ

This NEXTIME product comes with a limited warranty. For specific warranty details, claims, or technical support, please refer to the manufacturer's official webસાઇટ અથવા તમારા રિટેલરનો સંપર્ક કરો.

You can find more information about NEXTIME products by visiting the NEXTIME Store on Amazon.
