પરિચય
The JOYROOM JR-JH2 Hybrid Active Noise Cancelling Headphones are designed to provide a superior audio experience with advanced features for comfort and convenience. These wireless over-ear headphones integrate Bluetooth 5.4 technology, active noise cancellation (ANC), and a long-lasting battery, making them suitable for various environments, from daily commutes to travel and relaxation.
છબી: આગળ view of the JOYROOM JR-JH2 Hybrid Active Noise Cancelling Headphones. The headphones are black, with soft earcups and an adjustable headband, featuring the 'JOYROOM' logo on the side.
સેટઅપ
1. હેડફોન ચાર્જ કરવા
- Connect the provided USB-C charging cable to the charging port on the headphones and to a compatible USB power source.
- The LED indicator will show the charging status. A full charge takes approximately 1.5 hours.
- The headphones feature an 800mAh battery, providing up to 100 hours of playback with ANC off, or 60 hours with ANC on.
2. પાવર ચાલુ/બંધ
- To power on, press and hold the power button until the LED indicator lights up.
- પાવર બંધ કરવા માટે, LED સૂચક બંધ ન થાય ત્યાં સુધી પાવર બટન દબાવો અને પકડી રાખો.
3. બ્લૂટૂથ જોડી
- Ensure the headphones are powered on and in pairing mode (LED indicator flashing).
- તમારા ઉપકરણ (સ્માર્ટફોન, ટેબ્લેટ, કમ્પ્યુટર) પર, બ્લૂટૂથ સક્ષમ કરો અને ઉપલબ્ધ ઉપકરણો શોધો.
- Select "JR-JH2" from the list of devices to connect.
- A voice prompt will confirm successful pairing. The headphones support Bluetooth 5.4 for a stable connection up to 10 meters and can connect to two devices simultaneously.
છબી: આંતરિક view highlighting the Bluetooth 5.4 chip. This illustrates the advanced Bluetooth 5.4 technology for faster and more stable connections, reducing audio loss and improving anti-interference capabilities.
4. વાયર્ડ કનેક્શન
- For a wired connection, use the included 3.5mm audio adapter cable.
- Plug one end into the 3.5mm audio port on the headphones and the other end into your audio source.
- This allows for audio playback even when the headphone battery is depleted.

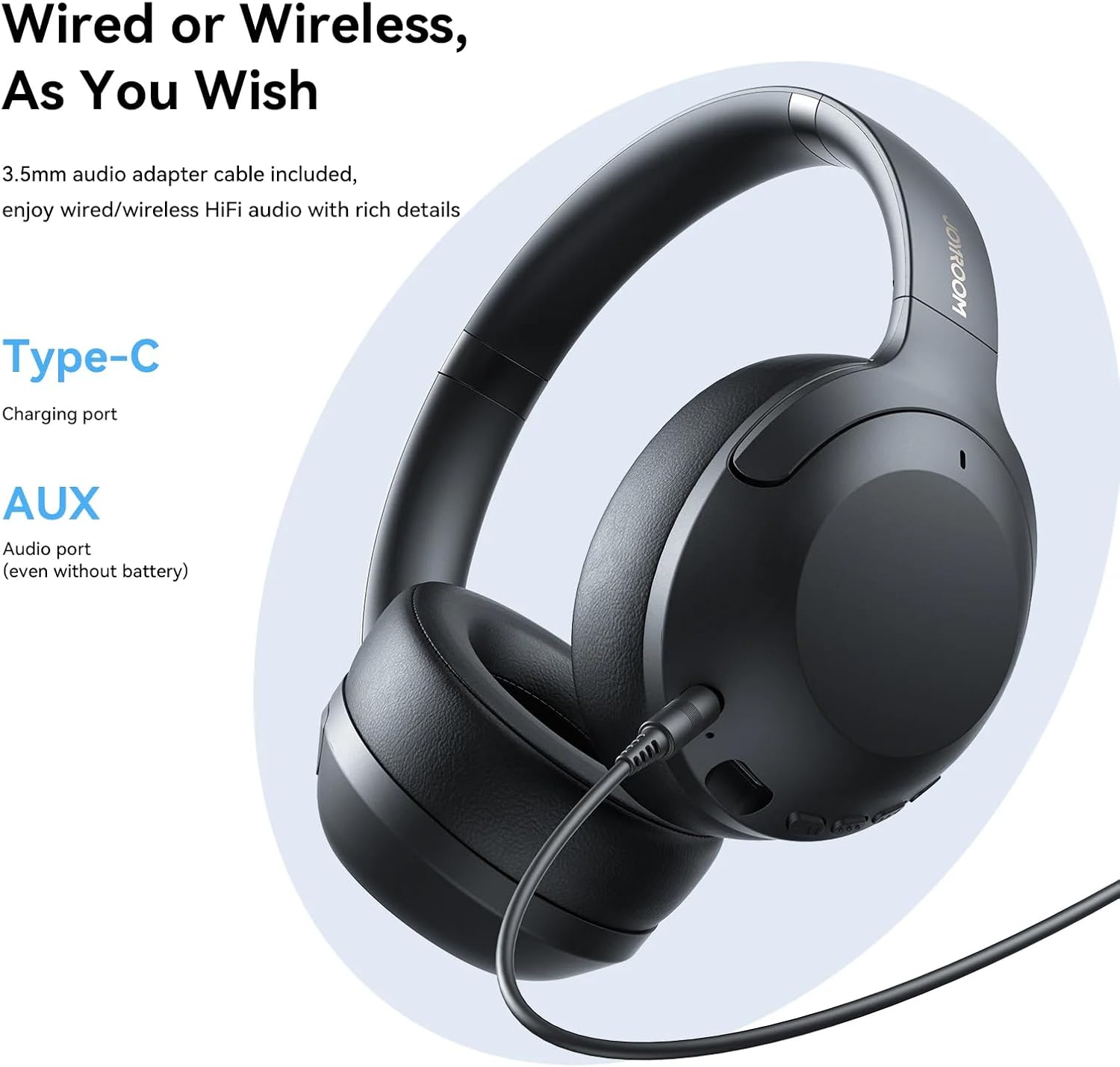

Image: The JOYROOM JR-JH2 headphones demonstrating both Type-C charging port and a 3.5mm AUX audio port, indicating flexibility for wired or wireless use.
ઓપરેટિંગ સૂચનાઓ
1. Multifunctional Buttons
The headphones feature intuitive buttons for easy control of music, calls, and modes.
Image: Detailed diagram of the multifunctional buttons on the JOYROOM JR-JH2 headphones, illustrating controls for music, calls, voice assistant, and mode switching.
સંગીત કાર્ય:
- ચલાવો/થોભો: પાવર બટન પર ક્લિક કરો.
- અવાજ ધીમો: Click the "-" button.
- પાછલો ટ્રેક: Press and hold the "+" button for 1 second.
- અવાજ વધારો: Click the "+" button.
- આગળનો ટ્રેક: Press and hold the "-" button for 1 second.
કૉલ ફંક્શન:
- જવાબ/કૉલ સમાપ્ત કરો: પાવર બટન પર ક્લિક કરો.
- કૉલ નકારો: When a call comes in, press and hold the power button for 1 second.
અવાજ સહાયક:
- Activate/Turn Off: Triple-click the power button.
મોડ સ્વિચ:
- Turn On/Off ANC: In music or standby status, click the ANC button.
- Turn On/Off Bass: In music status, triple-click the ANC button. (Note: When connecting for the first time, bass will be enabled by default. It is auto-memorized after the first shutdown.)
૫.૪. સક્રિય અવાજ રદ (ANC)
The JR-JH2 headphones feature hybrid active noise cancellation, combining active and passive noise reduction to minimize external noise by up to -38dB. This allows for an immersive listening experience by effectively blocking out environmental distractions.
Image: Graphic illustrating the noise cancellation capability of the JOYROOM JR-JH2 headphones, showing a reduction in external noise. The image depicts a user wearing the headphones with a visual representation of sound waves being suppressed.
3. Transparency Mode
The headphones also offer a Transparency Mode, allowing you to hear your surroundings without removing the headphones. This mode is typically activated by cycling through the ANC modes using the ANC button.
4. EQ Modes and App Customization
The JR-JH2 headphones support two EQ modes for varied sound profiles. Additionally, customization options may be available via a dedicated app. Refer to the app's instructions for detailed customization features.
જાળવણી
1. સફાઈ
- હેડફોનને નરમ, સૂકા કપડાથી સાફ કરો.
- કઠોર રસાયણો અથવા ઘર્ષક સામગ્રીનો ઉપયોગ કરશો નહીં.
- Ensure charging ports and audio jacks are free from dust and debris.
2. સંગ્રહ
- હેડફોનને સીધા સૂર્યપ્રકાશ અને અતિશય તાપમાનથી દૂર ઠંડી, સૂકી જગ્યાએ સંગ્રહિત કરો.
- The foldable design allows for compact storage and easy portability.
Image: The JOYROOM JR-JH2 headphones in a folded position, highlighting their lightweight build and foldable design for effortless portability and travel. An adjustable headband mechanism is also shown.
3. Wearing Comfort
The headphones are designed with full-size, soft PU ear cushions and an adjustable headband to ensure excellent fit and comfort during extended use.
Image: Close-up of the JOYROOM JR-JH2 earcups, emphasizing the ultra-soft PU ear cushions and multi-angle adjustment for pressure-free comfort and a snug fit.
મુશ્કેલીનિવારણ
સામાન્ય સમસ્યાઓ અને ઉકેલો:
- કોઈ શક્તિ નથી: ખાતરી કરો કે હેડફોન સંપૂર્ણપણે ચાર્જ થયેલ છે.
- જોડી બનાવી શકાતી નથી: Ensure Bluetooth is enabled on your device and the headphones are in pairing mode. Try restarting both devices.
- કોઈ અવાજ નથી: Check volume levels on both the headphones and your connected device. Ensure the correct audio output is selected on your device. If using a wired connection, ensure the cable is fully inserted.
- નબળી અવાજ ગુણવત્તા: Move closer to your connected device to reduce interference. Ensure no physical obstructions are between the headphones and the device.
ફેક્ટરી રીસેટ:
- To restore factory settings, with the headphones turned on, click the power button 5 times.
વિશિષ્ટતાઓ
| લક્ષણ | વિગત |
|---|---|
| બ્રાન્ડ | જોયરૂમ |
| મોડલ | JR-JH2 |
| બ્લૂટૂથ સંસ્કરણ | 5.4 |
| બ્લૂટૂથ કોડેક્સ | એસબીસી, એએસી |
| બ્લૂટૂથ રેન્જ | 10 મીટર સુધી |
| Operating Time (ANC off) | 100 કલાક સુધી |
| Operating Time (ANC on) | 60 કલાક સુધી |
| ચાર્જિંગ સમય | 1.5 કલાક |
| બેટરી ક્ષમતા | 800 એમએએચ |
| ચાર્જિંગ પોર્ટ | યુએસબી-સી |
| ડ્રાઇવરનું કદ | 40 મીમી |
| આવર્તન પ્રતિભાવ | 20Hz–20kHz |
| વજન | 236 ગ્રામ |
| પરિમાણો | 195 x 175 x 90 મીમી |
| સામગ્રી | ABS, PU, metal, silicone |
| અવાજ નિયંત્રણ | Hybrid Noise Cancellation (up to -38dB) |
| અવબાધ | 32 ઓહ્મ |
| સંવેદનશીલતા | 38 ડીબી |
| હેડફોન જેક | 3.5 મીમી જેક |
વોરંટી અને આધાર
For warranty information, please refer to the documentation provided with your purchase or contact the retailer where the product was acquired. Joyroom typically offers a manufacturer's warranty against defects in materials and workmanship.
For technical support, troubleshooting assistance beyond this manual, or inquiries regarding product service, please contact Joyroom customer support or your authorized retailer. Contact details can usually be found on the official Joyroom webસાઇટ અથવા તમારી ખરીદી રસીદ.
