CallToU Caregiver Pager Wireless Call Buttons User Manual

1. પરિચય

This manual provides comprehensive instructions for the CallToU Caregiver Pager Wireless Call Button System, Model CC32WH. This system is designed to facilitate communication between caregivers and individuals requiring assistance, such as the elderly, bedridden, or those with limited mobility. Please read this manual thoroughly before operating the device to ensure proper function and safety.

2. ઉત્પાદન ઓવરview

The CallToU Caregiver Pager system consists of a portable USB receiver and two call buttons: one wrist-worn button and one waterproof pendant-style button. The system offers a reliable method for individuals to alert their caregiver with a simple press of a button.

આકૃતિ 2.1: ઓવરview of the CallToU Caregiver Pager System components.

Key features include a 500-foot operating range in open areas, 18 selectable ringtones, vibration mode, multi-color LED indicators, and adjustable volume levels. The call buttons are designed for versatile placement, including wearing on the body or mounting on a wall.

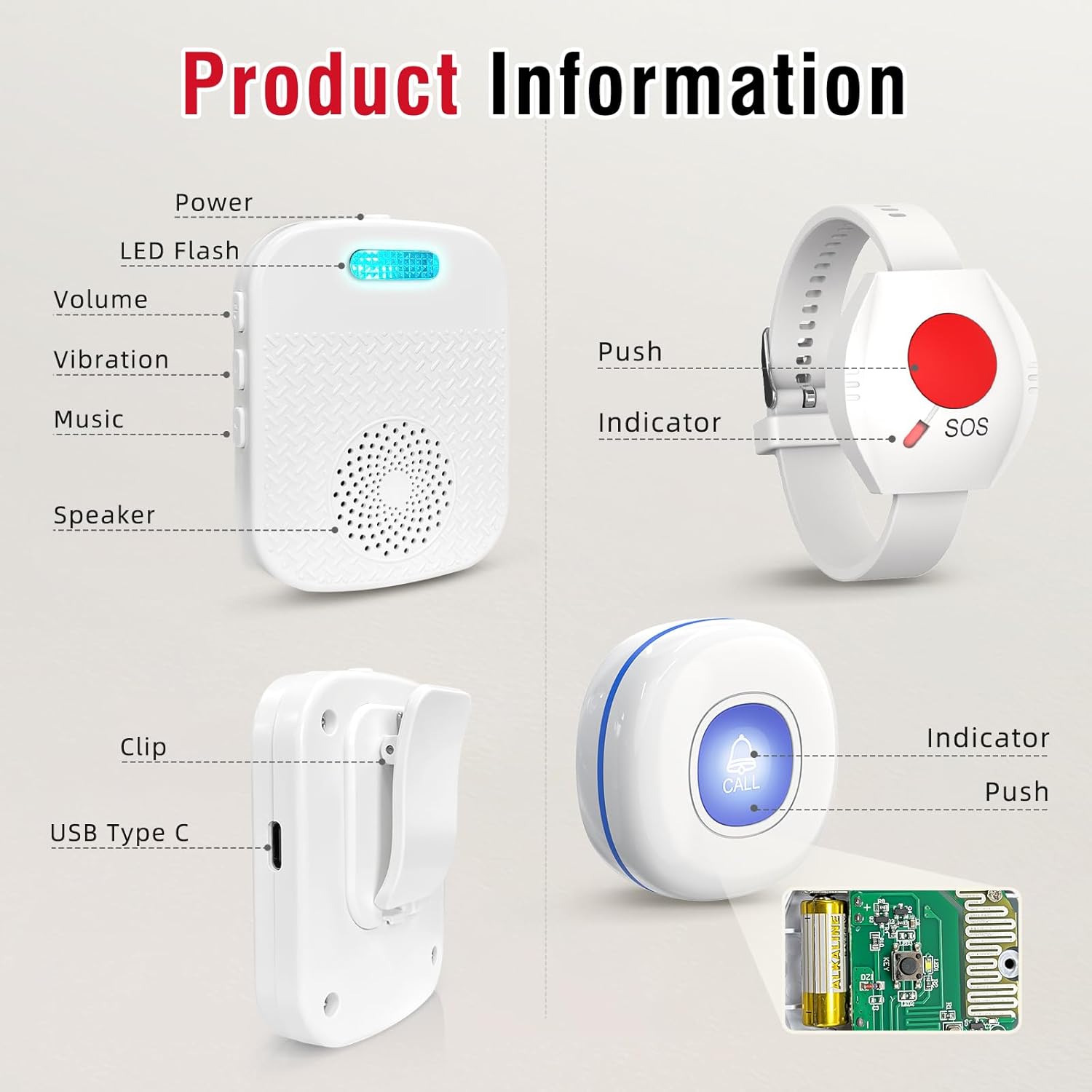

Figure 2.2: Labeled components of the CallToU Caregiver Pager System.

3. પેકેજ સામગ્રી

ખાતરી કરો કે બધી વસ્તુઓ તમારા પેકેજમાં હાજર છે:

• 1 x Portable USB Receiver
• 1 x Wrist Call Button (SOS)
• 1 x Waterproof Pendant Call Button (CALL)
• 1 x USB Charging Cable (for Receiver)
• 2 x 12V Alkaline Batteries (pre-installed in call buttons)
• 1 x Lanyard (for pendant call button)

4. સેટઅપ સૂચનાઓ

4.1. Charging the Receiver

Before first use, fully charge the portable USB receiver. Connect the provided USB charging cable to the receiver's Type-C port and plug the other end into a standard USB power adapter (not included).

Figure 4.1: Charging the portable USB receiver.

A full charge typically takes 1.5 to 2 hours. The receiver has a standby time of approximately 30 days and can support up to 400 calls on a full charge. A low battery alert will sound as "Low Battery" when charging is needed.

4.2. Installing/Checking Call Button Batteries

The call buttons come with 12V alkaline batteries pre-installed. If replacement is needed, open the button casing carefully and insert a new 12V battery, ensuring correct polarity. A low battery alert for the call buttons will also be indicated by the receiver.

4.3. Powering On/Off the Receiver

Press and hold the 'On/Off' button located on the side of the receiver to power it on or off.

4.4. Pairing Call Buttons with the Receiver

The call buttons are typically pre-paired with the receiver. If re-pairing is necessary or if you are adding additional buttons, follow these steps:

1. પગલું 1: Power on the receiver by pressing the 'On/Off' button.
2. પગલું 2: Press the 'Ringtone' button on the receiver to select your desired alert sound.
3. પગલું 3: Press and hold the 'Volume' button on the receiver until it emits a "di-di" sound and the LED indicator begins to flash. This indicates pairing mode.
4. પગલું 4: Press the call button (either wrist or pendant) you wish to pair. The receiver will emit a "di-di" sound and its LED light will flash, confirming receipt of the signal.
5. પગલું 5: Press the same call button again to confirm the pairing. The receiver should now ring with the selected ringtone.

Figure 4.2: Visual guide for pairing call buttons with the receiver.

5. ઓપરેટિંગ સૂચનાઓ

૪.૧. કોલ કરવો

To alert the caregiver, simply press the large button on either the wrist call button or the pendant call button. The receiver will activate its alert.

5.2. Receiver Alerts

Upon receiving a signal from a call button, the receiver will:

• Ring with the selected melody.
• વાઇબ્રેટ.
• Flash its multi-color LED indicator.

5.3. વોલ્યુમ એડજસ્ટ કરવું

The receiver offers 5 adjustable volume levels, ranging from 0 dB (mute) to 110 dB. Use the 'Volume' buttons on the side of the receiver to cycle through the levels.

Figure 5.1: Adjustable volume levels for the receiver.

5.4. Changing Ringtones

The receiver has 18 different ringtones. Press the 'Ringtone' button on the side of the receiver to cycle through the available melodies.

5.5. મ્યૂટ મોડ

For silent alerts, set the receiver to 0 dB volume. In this mode, the receiver will only vibrate and flash its LED indicator, which is useful for nighttime monitoring without disturbing others.

Figure 5.2: Receiver operating in mute mode.

5.6. Placement Options for Call Buttons

The call buttons are designed for flexible placement to suit user needs:

• Wrist Button: Worn like a watch for easy access.
• Pendant Button: Can be worn around the neck using the included lanyard or fixed to a wall near a bed, toilet, or shower.

Figure 5.3: Flexible placement options for call buttons.

5.7. Receiver Portability

The portable receiver features a back clip, allowing it to be easily attached to a belt or carried in a pocket. This ensures the caregiver can remain mobile while staying alert.

Figure 5.4: Receiver features including back clip and portability.

6. જાળવણી

6.1. સફાઈ

Wipe the devices with a soft, dry cloth. Do not use abrasive cleaners or immerse the receiver in water. The call buttons are IP55 dustproof and waterproof, meaning they can withstand splashes but should not be submerged.

6.2. Battery Replacement (Call Buttons)

When the receiver indicates a low battery alert for a call button, replace the 12V alkaline battery inside the respective button. Refer to Section 4.2 for guidance.

6.3. Charging (Receiver)

Regularly charge the receiver when the low battery alert is triggered to ensure continuous operation. Refer to Section 4.1 for charging instructions.

7. મુશ્કેલીનિવારણ

8. સ્પષ્ટીકરણો

9. વોરંટી અને સપોર્ટ

CallToU products are designed for reliability and performance. For warranty information, technical support, or any questions regarding your device, please refer to the contact information provided with your purchase or visit the official CallToU webસાઇટ. વોરંટી દાવાઓ માટે કૃપા કરીને તમારી ખરીદીનો પુરાવો રાખો.
