1. મહત્વપૂર્ણ સલામતી માહિતી
Read all instructions before operating the BEZGAR LH-X72SPRO RC Airplane. Failure to follow these instructions may result in injury or damage to the product. This product is recommended for ages 8 and up.
- Always operate in open, clear areas, away from people, animals, and obstacles.
- Do not fly near power lines, buildings, or roads.
- આંગળીઓ, વાળ અને છૂટા કપડાંને ફરતા પ્રોપેલર્સથી દૂર રાખો.
- 14 વર્ષથી ઓછી ઉંમરના વપરાશકર્તાઓ માટે પુખ્ત વયના લોકોની દેખરેખની ભલામણ કરવામાં આવે છે.
- કોઈપણ રીતે ઉત્પાદનમાં ફેરફાર કરશો નહીં.
- Ensure batteries are charged correctly and safely.
2. પેકેજ સામગ્રી
ખાતરી કરો કે નીચે સૂચિબદ્ધ બધી વસ્તુઓ તમારા પેકેજમાં શામેલ છે:
- RC Airplane x 1
- હાવભાવ રીમોટ કંટ્રોલ x 1
- Standard Remote Control x 1
- 3.7V 500mAh Battery x 2
- ચાર્જિંગ કેબલ x 1
- સ્ક્રુડ્રાઇવર x 1
- Fan Blade (Spare Propellers) x 4
- વપરાશકર્તા માર્ગદર્શિકા x 1
Image 2.1: Contents of the BEZGAR LH-X72SPRO RC Airplane package, including the airplane, gesture controller, standard controller, batteries, charging cable, screwdriver, and spare propellers.
3. સેટઅપ માર્ગદર્શિકા
૫.૧ બેટરી ઇન્સ્ટોલેશન અને ચાર્જિંગ
The BEZGAR LH-X72SPRO RC Airplane uses two 3.7V 500mAh modular batteries for extended flight time. Ensure both batteries are fully charged before first use.
- Insert the provided 3.7V 500mAh batteries into the designated battery compartments on the RC airplane.
- Connect the charging cable to the battery and a suitable USB power source (e.g., computer USB port, USB wall adapter).
- The indicator light on the charging cable will show the charging status. Refer to the charging cable's specific instructions for light indications (usually red for charging, off or green for fully charged).
- Charging typically takes approximately 60-90 minutes per battery.
Image 3.1: The dual modular battery system, providing up to 14 minutes of flight time.
3.2 Controller Pairing and Gyroscope Calibration
Before each flight, the controller and airplane must be paired and the gyroscope calibrated for stable operation.
- Place the RC airplane on a flat, horizontal surface.
- Turn on the power switch on the RC airplane. The LED lights will begin to flash.
- Turn on the power switch on your chosen remote control (either standard or gesture controller).
- For the gesture controller, long press the frequency pairing button (usually the power button) until the lights on the controller and airplane become solid, indicating successful pairing.
- Perform gyroscope calibration: Ensure the airplane is still on a horizontal surface. On the gesture controller, short press the Gyroscope Calibration button (refer to controller diagram in the video for exact location). The airplane's lights will flash rapidly and then become solid, indicating successful calibration.
- Short press the unlock button on the gesture controller to prepare for flight.
Video 3.2: Demonstrates how to use the gesture control, including pairing and calibration steps. This video shows the process of turning on the airplane and controller, pairing them, calibrating the gyroscope, and unlocking the motors for flight.
Image 3.3: The gesture control remote, illustrating how hand movements steer the airplane and perform stunts.
4. ઓપરેટિંગ સૂચનાઓ
4.1 Basic Flight Controls (Gesture Controller)
The gesture controller allows intuitive control of the airplane through hand movements.
- One-Click Take-off/Landing: After unlocking, press the designated button on the controller for automatic take-off or landing.
- ઊંચાઈ હોલ્ડ: The airplane features automatic altitude hold technology, maintaining a consistent height for stable hovering.
- Go Up/Down: Move your hand up or down to control the airplane's vertical ascent or descent.
- Advance/Back: Tilt your hand forward or backward to move the airplane in the corresponding direction.
- Fly Left/Right: Tilt your hand left or right to move the airplane sideways.
- ડાબે/જમણે વળો: Rotate your wrist left or right to make the airplane turn.
Image 4.1: The airplane maintaining a stable hover, illustrating the altitude holding system.
4.2 અદ્યતન સુવિધાઓ
- 360° Flip & Aerial Stunts: Engage the tumble button on the controller and perform a quick hand movement to execute 360-degree flips and other aerial maneuvers.
- હેડલેસ મોડ: In headless mode, the airplane's orientation is relative to the remote controller, simplifying flight control regardless of the airplane's front direction.
- 3 સ્પીડ વિકલ્પો: The airplane offers three adjustable speed settings to adapt to various flight scenarios and pilot skill levels.
- તત્કાલીન બંધ: In case of an emergency, long press the designated button on the remote controller to immediately stop the propellers.

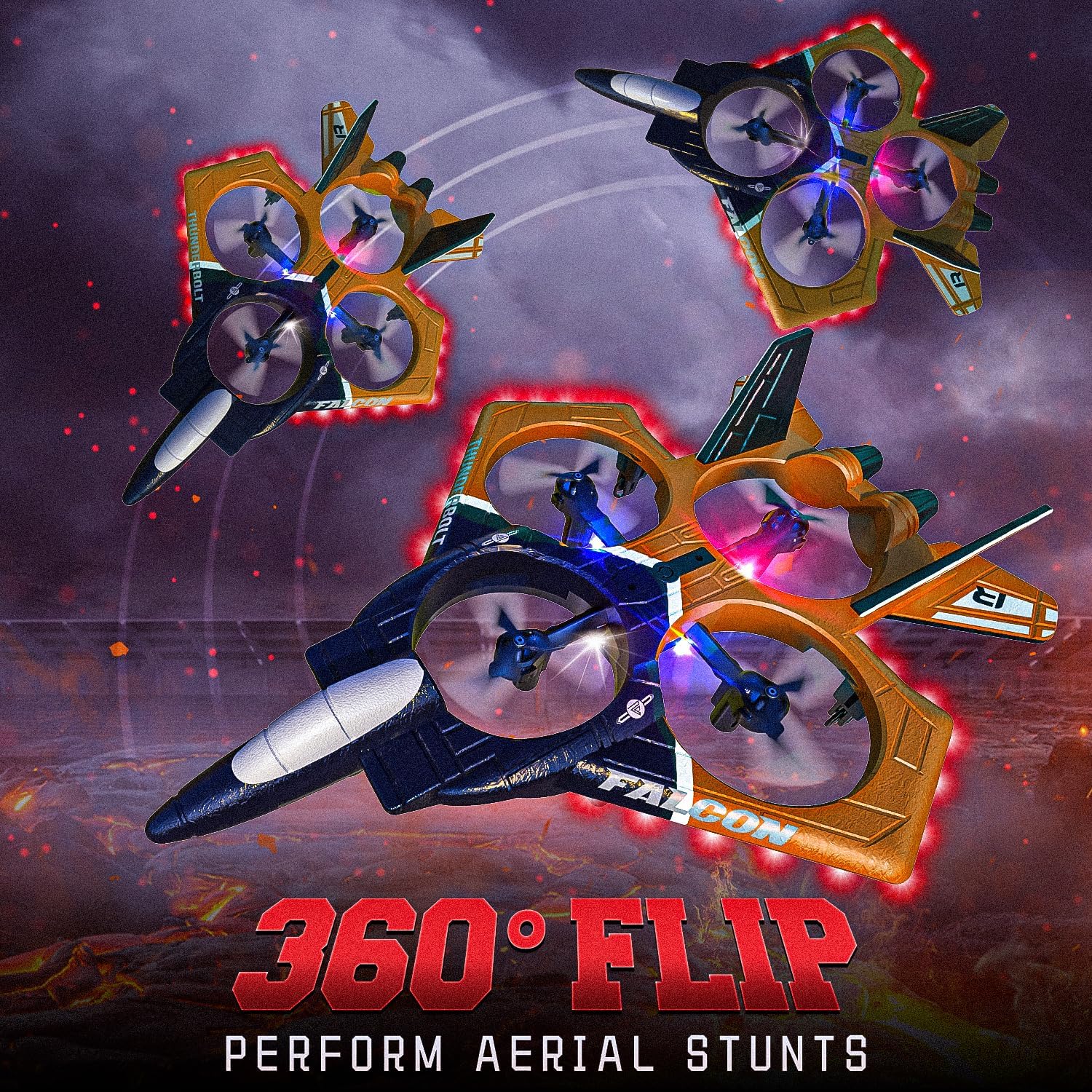

Image 4.2: The RC airplane executing a 360-degree flip, showcasing its aerial stunt capabilities.
4.3 LED Navigation Lights
The BEZGAR LH-X72SPRO RC Airplane is equipped with colorful LED navigation lights, enhancing visibility and adding to the flying experience, especially in low-light conditions.
Video 4.3: A demonstration of the RC airplane's LED lights during flight, highlighting their brightness and visibility.
વિડિઓ ૧: એક ઓવરview of the BEZGAR RC Airplane in action, showcasing its flight capabilities and LED lights.
4.4 Low Battery Warning System
The airplane is equipped with a low battery warning system. When the battery level is low, the LED lights on the airplane will flash rapidly, indicating that it's time to land and recharge the battery. This ensures safe operation and prevents unexpected power loss during flight.
5. જાળવણી
Proper maintenance ensures the longevity and optimal performance of your RC airplane.
- સફાઈ: Gently wipe the airplane with a dry, soft cloth after each use to remove dust and debris. Avoid using water or chemical cleaners.
- પ્રોપેલર નિરીક્ષણ: Regularly check the propellers for any damage (cracks, bends). Replace damaged propellers immediately using the provided spare fan blades and screwdriver.
- બેટરી સંભાળ:
- Always use the original charging cable.
- બેટરીને ઓવરચાર્જ કરશો નહીં અથવા ઓવર-ડિસ્ચાર્જ કરશો નહીં.
- બેટરીઓને સીધા સૂર્યપ્રકાશ અને ગરમીથી દૂર ઠંડી, સૂકી જગ્યાએ સંગ્રહિત કરો.
- If not used for an extended period, charge the batteries to about 50% before storage.
- સંગ્રહ: Store the airplane and its components in a safe, dry place, away from extreme temperatures and direct sunlight.
6. મુશ્કેલીનિવારણ
| સમસ્યા | સંભવિત કારણ | ઉકેલ |
|---|---|---|
| Airplane does not respond to controller. | Not paired correctly; low battery in controller or airplane. | Re-pair the controller and airplane. Ensure both have sufficient battery charge. |
| Airplane flies erratically or is unstable. | Gyroscope not calibrated; damaged propellers; strong wind conditions. | Perform gyroscope calibration on a flat surface. Check and replace any damaged propellers. Fly in calm conditions. |
| ટૂંકી ફ્લાઇટ સમય. | Battery not fully charged; old battery; continuous high-speed flight. | Ensure batteries are fully charged. Consider replacing old batteries. Optimize flight style. |
| LED lights flashing rapidly. | ઓછી બેટરી ચેતવણી. | Land the airplane immediately and recharge the battery. |
7. સ્પષ્ટીકરણો
- મોડલ નંબર: LH-X72SPRO
- બ્રાન્ડ: બેઝગર
- ઉત્પાદન પરિમાણો: 12 x 8.7 x 2.8 ઇંચ
- વસ્તુનું વજન: 1.06 પાઉન્ડ
- ઉત્પાદકની ભલામણ કરેલ ઉંમર: 8 વર્ષ અને તેથી વધુ
- બેટરી: 3.7V 500mAh (x2)
- નિયંત્રણ આવર્તન: 2.4GHZ
- મોટરનો પ્રકાર: હોલો કપ મોટર
Image 7.1: The RC airplane highlighting its 2.4GHz radio system for stable, long-distance remote control.
8. વોરંટી અને સપોર્ટ
For warranty information or technical support, please contact BEZGAR customer service directly. Details can typically be found on the product packaging or the official BEZGAR webસાઇટ
વધારાની સહાય માટે, તમે મુલાકાત લઈ શકો છો BEZGAR Store on Amazon.
