ALIGATOR AZA930B મોબાઇલ ફોન વપરાશકર્તા માર્ગદર્શિકા

1. પરિચય

The ALIGATOR AZA930B is a mobile phone designed with ease of use in mind, particularly for seniors. It features a large keypad, a clear 2.8-inch color display, and essential safety functions such as an SOS button and SOS locator. This manual provides detailed instructions on how to set up, operate, maintain, and troubleshoot your device to ensure optimal performance and safety.

2. સલામતી માહિતી

સલામત અને યોગ્ય કામગીરી સુનિશ્ચિત કરવા માટે કૃપા કરીને તમારા ફોનનો ઉપયોગ કરતા પહેલા આ વિભાગ કાળજીપૂર્વક વાંચો.

• બેટરી સલામતી: Use only ALIGATOR approved batteries and chargers. Do not short-circuit, puncture, or expose the battery to extreme temperatures. Dispose of batteries properly.
• ચાર્જિંગ: The phone does not include a charger. Use a compatible USB-C charger (recommended model ALIGATOR CHA0047) with a power output of 2.5-3W. Avoid charging in damp શરતો
• શ્રવણ સંરક્ષણ: શ્રવણશક્તિને નુકસાન થતું અટકાવવા માટે ઊંચા અવાજના સ્તરે લાંબા સમય સુધી સાંભળવાનું ટાળો.
• ડ્રાઇવિંગ સલામતી: Always prioritize driving safety. Use hands-free accessories and obey all local laws and regulations regarding mobile phone use while driving.
• તબીબી ઉપકરણો: Maintain a safe distance between the phone and medical devices such as pacemakers. Consult your physician and the medical device manufacturer for specific guidelines.
• પાણી પ્રતિકાર: This phone is not water-resistant. Avoid exposure to liquids.

3. પેકેજ સામગ્રી

ખાતરી કરો કે બધી વસ્તુઓ તમારા ઉત્પાદન પેકેજમાં હાજર છે:

• ALIGATOR AZA930B Mobile Phone
• ચાર્જિંગ ડોક
• વપરાશકર્તા માર્ગદર્શિકા (આ દસ્તાવેજ)
• નોંધ: ચાર્જર શામેલ નથી અને તેને અલગથી ખરીદવું આવશ્યક છે.

Figure 3.1: Product packaging illustrating the phone, charging dock, and various features such as 4G connectivity, GPS, SOS Locator, camera, VoLTE, card slot, FM radio, torch, and alarm. The box also indicates the 2.8-inch display.

4. સેટઅપ

4.1. સિમ કાર્ડ દાખલ કરી રહ્યાં છીએ

The ALIGATOR AZA930B supports Dual SIM (2 x Nano SIM) functionality. To insert SIM cards:

1. ફોનનો પાવર બંધ કરો.
2. પાછળનું કવર અને બેટરી દૂર કરો.
3. Locate the SIM card slots. Insert your Nano SIM cards into the designated slots, ensuring the gold contacts face down and the cut corner aligns correctly.
4. બેટરી અને બેક કવર બદલો.

4.2. Inserting a Micro SD Card

The phone supports a Micro SD memory card up to 256 GB for additional storage.

1. Follow steps 1 and 2 from "4.1. Inserting SIM Cards".
2. Locate the Micro SD card slot. Insert the Micro SD card with the gold contacts facing down until it clicks into place.
3. બેટરી અને બેક કવર બદલો.

૪.૩. પ્રારંભિક ચાર્જિંગ

Before first use, fully charge the phone's 1700 mAh Li-ion battery.

• Connect the USB-C cable (not included) to the phone's USB-C port or place the phone in the charging dock.
• Connect the other end of the cable to a compatible charger (e.g., ALIGATOR CHA0047, 2.5-3W) or a powered USB port.
• The charging indicator will illuminate. A full charge may take several hours.

Figure 4.1: The ALIGATOR AZA930B phone placed in its dedicated charging dock. The phone's screen shows the current time and network signal indicators.

Figure 4.2: Detail from the product box, explicitly showing an icon indicating that a charger is not included and specifying a recommended charger power of 2.5-3W.

5. ઓપરેટિંગ સૂચનાઓ

5.1. પાવર ચાલુ/બંધ

• પાવર ચાલુ કરવા માટે: સ્ક્રીન પ્રકાશિત ન થાય ત્યાં સુધી પાવર/એન્ડ કોલ બટન (લાલ બટન) દબાવી રાખો.
• પાવર ઓફ કરવા માટે: Press and hold the Power/End Call button until the power off options appear, then select "Power off".

૬.૧. મૂળભૂત કોલ કાર્યો

• કૉલ કરવો: Enter the phone number using the large keypad and press the Call button (green button).
• કૉલનો જવાબ આપવો: When the phone rings, press the Call button (green button).
• કૉલ સમાપ્ત: Press the Power/End Call button (red button).
• હેન્ડ્સ-ફ્રી: During a call, activate hands-free mode via the on-screen option or a dedicated button if available.

5.3. SOS Button and SOS Locator

The SOS button is a critical safety feature, allowing quick contact in emergencies.

• SOS બટન: Located on the back of the phone (often red). Press and hold this button to activate the emergency sequence.
• SOS Presets: You can set up to 5 preset emergency contacts. When the SOS button is pressed, the phone will automatically call these numbers in sequence and send an emergency SMS.
• SOS Locator: This function sends the phone's location via SMS to the emergency contacts after the SOS button is pressed. The recipient can then view the location on a map via a web link provided in the SMS. This feature utilizes both GSM and GPS for location accuracy.

આકૃતિ 5.1: પાછળ view of the ALIGATOR AZA930B, showing the prominent red SOS button and the speaker grille for clear audio.

આકૃતિ 5.2: પાછળનો ખૂણો view of the ALIGATOR AZA930B, demonstrating the activated flashlight feature.

5.4. "Zachranka" Rescue Application

The "Zachranka" application is a mobile emergency call application pre-installed on the device.

• It provides quick contact with emergency medical services or mountain rescue.
• The application is valid in Austria, Hungary, the Czech Republic, and in the territories of the Slovak mountains.
• For more information, refer to the "Zachranka" app's official resources.

આકૃતિ ૩.૧: આગળ અને પાછળ views of the ALIGATOR AZA930B, accompanied by the "Zachranka" rescue application logo, indicating its integration with the device.

5.5. અન્ય સુવિધાઓ

• ફોનબુક: Store up to 500 contacts.
• મેસેજિંગ: Send and receive SMS messages (memory for 100 SMS). Supports sending photos via MMS.
• મલ્ટીમીડિયા:
  • એફએમ રેડિયો: Listen to FM radio stations.
  • મીડિયા પ્લેયર: ઑડિઓ અને વિડિઓ ચલાવો files stored on the phone or Micro SD card.
  • વૉઇસ રેકોર્ડર: વૉઇસ મેમો રેકોર્ડ કરો.
• ફ્લેશલાઇટ: રોશની માટે બિલ્ટ-ઇન ફ્લેશલાઇટ સક્રિય કરો.
• સાધનો: Includes Alarm, Calculator, and SIM toolkit support.
• બ્લૂટૂથ: Connect to Bluetooth headsets or other devices.
• વાઇબ્રેશન એલાર્મ: Set the phone to vibrate for incoming calls or notifications.
• ધૂન: Choose from 10+1 pre-installed melodies.
• Automatic Time Adjustment: The phone can automatically adjust its time.

આકૃતિ 5.4: ફ્રન્ટ view of the ALIGATOR AZA930B, highlighting its user-friendly large keypad and vibrant color display.

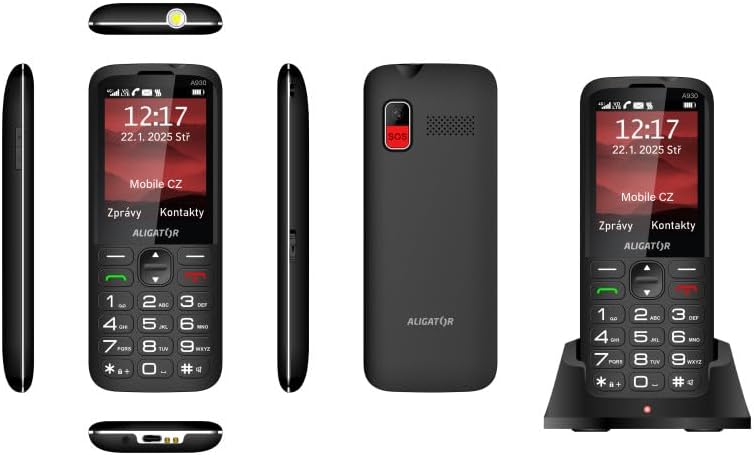

આકૃતિ 5.5: વ્યાપક views of the ALIGATOR AZA930B, illustrating its design from the top, sides, front, back, and when seated in its charging dock.

6. જાળવણી

• સફાઈ: Use a soft, dry cloth to clean the phone's surface. Avoid using harsh chemicals or abrasive materials.
• બેટરી સંભાળ: To prolong battery life, avoid fully discharging the battery frequently. Store the phone in a cool, dry place if not used for extended periods.
• સંગ્રહ: Keep the phone away from extreme temperatures, direct sunlight, and dusty environments.

7. મુશ્કેલીનિવારણ

8. સ્પષ્ટીકરણો

નોંધ: સ્પષ્ટીકરણો પૂર્વ સૂચના વિના બદલવાને પાત્ર છે.

9. વોરંટી અને સપોર્ટ

ALIGATOR products are designed and manufactured to the highest quality standards. For detailed warranty information, including terms, conditions, and duration, please refer to the warranty card included with your product or visit the official ALIGATOR webસાઇટ

For technical support, service, or inquiries regarding your ALIGATOR AZA930B mobile phone, please contact ALIGATOR customer service or visit their official support channels. Keep your purchase receipt and product serial number (IMEI) handy when seeking support.

• IMEI 1: 357140835088496
• IMEI 2: 357140835088504
• Barcode/UPC: 8596426108267
