BEZGAR LH-LY-048 મીની ડ્રોન વપરાશકર્તા માર્ગદર્શિકા

1. પરિચય

ખરીદી બદલ આભારasing the BEZGAR LH-LY-048 Mini Drone. This manual provides essential information for the safe operation, setup, and maintenance of your drone. Please read it thoroughly before use and retain it for future reference.

સલામતી સાવચેતીઓ

• ડ્રોનને હંમેશા ખુલ્લા, સ્વચ્છ વિસ્તારોમાં, લોકો, પ્રાણીઓ અને અવરોધોથી દૂર ચલાવો.
• Do not fly near high-voltage lines, airports, or crowded places.
• Ensure the drone's battery and remote control batteries are fully charged before each flight.
• ફરતા પ્રોપેલર્સથી આંગળીઓ અને વાળ દૂર રાખો.
• નાના વપરાશકર્તાઓ માટે પુખ્ત વયના લોકોની દેખરેખની ભલામણ કરવામાં આવે છે.
• ડ્રોન અથવા તેના ઘટકોમાં ફેરફાર કરશો નહીં.

2. પેકેજ સામગ્રી

ખાતરી કરો કે નીચે સૂચિબદ્ધ બધી વસ્તુઓ તમારા પેકેજમાં શામેલ છે:

• BEZGAR LH-LY-048 Mini Drone x 1
• રીમોટ કંટ્રોલ x 1
• Rechargeable Drone Batteries x 2
• યુએસબી ચાર્જિંગ કેબલ x 1
• Spare Propellers x 4
• સ્ક્રુડ્રાઇવર x 1
• વપરાશકર્તા માર્ગદર્શિકા x 1

Image: Contents of the BEZGAR LH-LY-048 Mini Drone package, including the drone, remote control, batteries, charging cable, spare propellers, and screwdriver.

3. ઉત્પાદન ઓવરview

Familiarize yourself with the drone and remote control components.

ડ્રોન ઘટકો

• Propellers (4)
• Propeller Guards (integrated)
• એલઇડી લાઇટ્સ
• બેટરી કમ્પાર્ટમેન્ટ
• પાવર સ્વિચ

Image: The BEZGAR LH-LY-048 Mini Drone, showcasing its red body, integrated propeller guards, and vibrant LED lights.

રીમોટ કંટ્રોલ લેઆઉટ

Image: Diagram of the remote control for the BEZGAR LH-LY-048 Mini Drone, labeling various buttons and joysticks for flight control, speed modes, headless mode, and 360° flips.

1. Left Stick (Ascend/Descend/Turn Left/Turn Right)
2. Right Stick (Forward/Backward/Left and Right Side Flying)
3. Forward Fine-Tuning
4. Backward Fine-Tuning
5. Left Fly Fine-Tuning
6. Right Fly Fine-Tuning
7. High/Low Speed / One Key Avoidance
8. હેડલેસ મોડ
9. 360 ° ફ્લિપ કરો
10. Unlock/One Key Take-Off/One Key Landing (Short Press) / Emergency Stop (Long Press)
11. પાવર ચાલુ/બંધ

4. સેટઅપ

4.1 બેટરી ઇન્સ્ટોલેશન

ડ્રોન બેટરી

1. Ensure the drone's power switch is in the OFF position.
2. Open the battery compartment cover on the drone.
3. Connect the drone battery to the drone's power connector.
4. Place the battery securely into the compartment and close the cover.

રિમોટ કંટ્રોલ બેટરી

1. રિમોટ કંટ્રોલની પાછળનું બેટરી કવર ખોલો.
2. Insert 3 AAA batteries (not included) according to the polarity markings.
3. બેટરી કવર બંધ કરો.

૪.૧ ડ્રોન બેટરી ચાર્જ કરવી

1. ડ્રોન બેટરીને USB ચાર્જિંગ કેબલ સાથે જોડો.
2. Plug the USB charging cable into a USB power adapter (5V/1A recommended) or a computer's USB port.
3. The indicator light on the USB cable will illuminate during charging and turn off when fully charged.
4. Charging time is approximately 60 minutes per battery.

4.3 Propeller Installation/Replacement

If a propeller is damaged, replace it with a spare propeller from the package. Ensure the correct propeller (A or B) is installed on the corresponding motor as indicated on the drone's body.

5. ઓપરેટિંગ સૂચનાઓ

૫.૪ ડ્રોન અને રિમોટ કંટ્રોલનું જોડાણ

1. ડ્રોનને સપાટ, સ્તરની સપાટી પર મૂકો.
2. Turn on the drone's power switch. The drone's LED lights will flash.
3. રિમોટ કંટ્રોલ ચાલુ કરો.
4. Push the left joystick up to its maximum position, then pull it down to its minimum position. The drone's LED lights will stop flashing and remain solid, indicating successful pairing.

5.2 માપાંકન

After pairing, if the drone drifts, perform a calibration:

1. ડ્રોનને સપાટ, સ્તરની સપાટી પર મૂકો.
2. Simultaneously push both joysticks down and to the bottom-right (or bottom-left, depending on the remote model, refer to remote diagram). The drone's lights will flash rapidly and then become solid, indicating successful calibration.

૬.૫ મૂળભૂત ફ્લાઇટ નિયંત્રણો

એક કી ટેક-ઓફ/લેન્ડિંગ

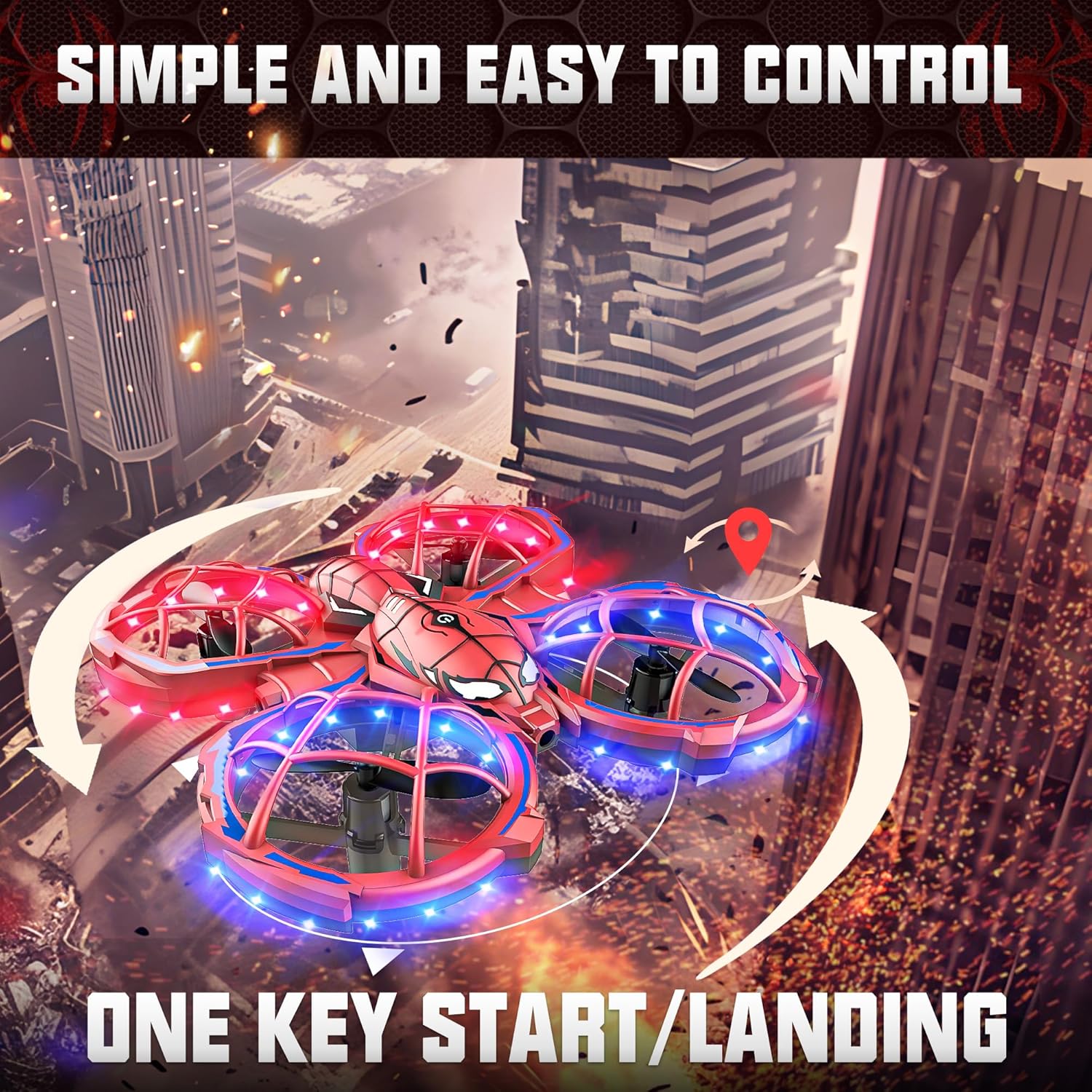

Image: The BEZGAR LH-LY-048 Mini Drone taking off with a single button press, illustrating the 'One Key Start/Landing' feature.

After pairing and calibration, short press the One Key Take-Off/Landing button (usually indicated by an unlock symbol) on the remote control. The drone will automatically take off and hover at a certain altitude. Press the button again to land the drone automatically.

મેન્યુઅલ ટેક-ઓફ

Alternatively, after pairing and calibration, push both joysticks outwards and downwards to start the propellers. Then, gently push the left joystick up to ascend.

નિર્દેશી નિયંત્રણ

• ડાબી જોયસ્ટિક (થ્રોટલ): Push up to ascend, pull down to descend. Push left/right to rotate the drone left/right.
• જમણી જોયસ્ટિક (દિશા): Push up/down to fly forward/backward. Push left/right to fly sideways (strafe) left/right.

5.4 વિશેષ સુવિધાઓ

ઊંચાઈ પકડી

Image: The BEZGAR LH-LY-048 Mini Drone maintaining a stable altitude, illustrating the Altitude Hold feature. Also shows the concept of Headless Mode.

The drone is equipped with an Altitude Hold function, which allows it to maintain a stable height automatically after ascending. You can release the left joystick, and the drone will hover at its current altitude.

હેડલેસ મોડ

Press the Headless Mode button on the remote control. In Headless Mode, the drone's orientation is locked to the remote control's orientation, regardless of the drone's actual front direction. This simplifies control for beginners. Press the button again to exit Headless Mode.

3 સ્પીડ મોડ્સ

Image: The BEZGAR LH-LY-048 Mini Drone executing a 360-degree stunt roll, with an overlay indicating three different speed modes (30%, 60%, 100%).

Press the Speed Mode button (usually indicated by a speed icon) to cycle through three different flight speeds: Low, Medium, and High. This allows you to adjust the drone's responsiveness to your skill level.

360° Flips Stunt

To perform a 360° flip, fly the drone to a height of at least 2 meters. Press the 360° Flip button on the remote control, then quickly push the right joystick in any direction (forward, backward, left, or right). The drone will perform a flip in that direction.

અવરોધ ટાળવો

Image: The BEZGAR LH-LY-048 Mini Drone automatically avoiding an obstacle, highlighting its 'Auto Avoidance' feature and 'Full Frame Protection'.

The drone features an obstacle avoidance system. When activated (refer to remote diagram for specific button), the drone will attempt to detect and avoid nearby obstacles, enhancing safety, especially for beginners.

૧.૧ સત્તાવાર ઉત્પાદન વિડિઓ

6. જાળવણી

6.1 સફાઈ

Use a soft, dry cloth to clean the drone and remote control. Do not use water or chemical cleaners, as they may damage electronic components.

6.2 સંગ્રહ

When not in use for extended periods, remove batteries from both the drone and the remote control. Store the drone and its accessories in a cool, dry place, away from direct sunlight and extreme temperatures.

6.3 Propeller Care

Regularly inspect propellers for damage. Replace any bent or broken propellers immediately to ensure optimal flight performance and safety.

7. મુશ્કેલીનિવારણ

8. સ્પષ્ટીકરણો

9. વોરંટી અને સપોર્ટ

BEZGAR products are manufactured to high-quality standards. For warranty information, technical support, or replacement parts, please contact BEZGAR customer service or visit the official BEZGAR store online.

BEZGAR Store: https://www.amazon.com/stores/BEZGAR-SheerPleasureOfControl/page/A86573E2-C591-4D75-8AD0-0579204FA57D
