TMC 8-Inch Digital Clock User Manual

પરિચય

This manual provides comprehensive instructions for the setup, operation, and maintenance of your TMC 8-Inch Digital Clock. Designed with a clear, large display and user-friendly features, this clock is ideal for displaying time, date, and reminders. Please read this manual thoroughly before using the device to ensure proper functionality and longevity.

સલામતી માહિતી

• ખાતરી કરો કે પાવર એડેપ્ટર તમારા સ્થાનિક પાવર સપ્લાય સાથે સુસંગત છે.
• ઉપકરણને અતિશય તાપમાન, સીધો સૂર્યપ્રકાશ અથવા ઉચ્ચ ભેજના સંપર્કમાં ન લાવો.
• Avoid dropping or subjecting the clock to strong impacts.
• ઉપકરણને જાતે ડિસએસેમ્બલ અથવા રિપેર કરવાનો પ્રયાસ કરશો નહીં. સહાય માટે ગ્રાહક સપોર્ટનો સંપર્ક કરો.
• બાળકો અને પાલતુ પ્રાણીઓની પહોંચથી દૂર રાખો.

પેકેજ સામગ્રી

ખાતરી કરો કે બધી વસ્તુઓ પેકેજમાં હાજર છે:

• TMC 8-Inch Digital Clock
• પાવર એડેપ્ટર
• વપરાશકર્તા માર્ગદર્શિકા (આ દસ્તાવેજ)
• ડેસ્કટોપ સ્ટેન્ડ
• Remote Control (if included with your model)

ઉત્પાદન ઓવરview

The TMC 8-Inch Digital Clock features a clear, high-contrast display designed for easy readability. It includes multiple display styles, automatic brightness adjustment, and up to 12 customizable alarm reminders.

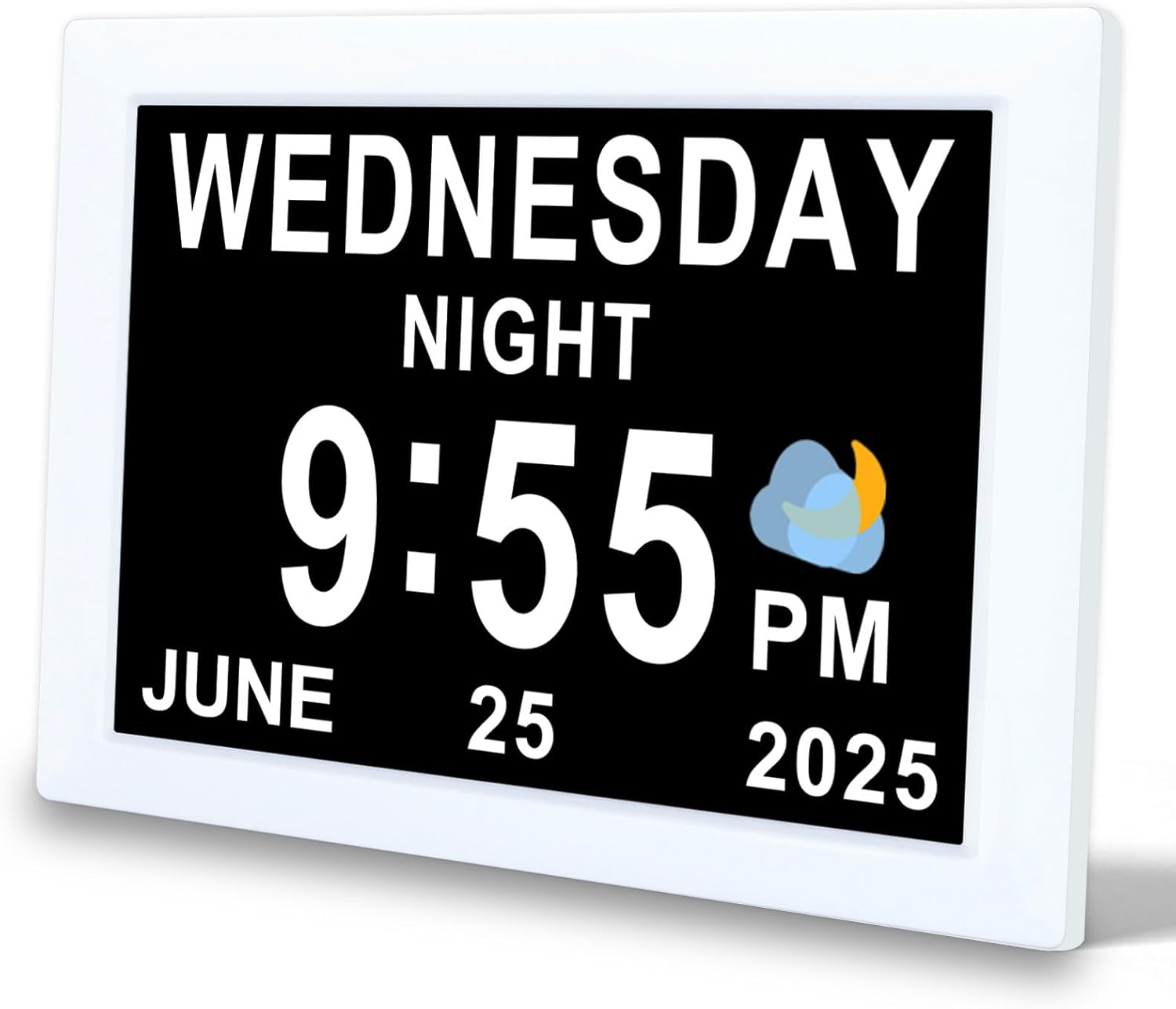

આકૃતિ 1: આગળ view of the TMC 8-Inch Digital Clock, showing a clear display of the day, time, and date.

આકૃતિ 2: The clock features an ultra-narrow bezel design, enhancing the display area and providing a modern aesthetic for both wall-mounted and desktop use.

આકૃતિ 3: The clock's design provides a 20% larger visible screen area compared to typical models, along with an anti-glare finish for improved readability.

આકૃતિ 4: પાછળ view and dimensions of the clock, highlighting the DC power input, SD card slot, and wall-mounted hole. The remote control is also shown with its buttons: Power, Up, Down, Left, Right, Play/Pause, Menu.

મુખ્ય લક્ષણો:

• 8-inch high-resolution display with narrow bezel.
• ૧૦૦ ભાષાઓને સપોર્ટ કરે છે.
• 12 customizable alarm reminders with 9 icon options.
• Automatic brightness adjustment (5 levels) or manual control.
• Multiple display interfaces (digital, analog, icon modes).
• 12/24-hour time format.
• Wall-mountable or desktop stand options.
• Built-in backup battery for power loss protection.
• Adjustable volume (levels 1-10).
• SD card support for photo and video playback (optional).

સેટઅપ

1. ઉપકરણને અનપેક કરો: Carefully remove the clock and all accessories from the packaging.
2. પ્લેસમેન્ટ:
   • For desktop use, attach the provided stand to the back of the clock.
   • For wall mounting, use the wall-mounted hole on the back of the clock (mounting hardware not included).
3. પાવર કનેક્ટ કરો: Plug the power adapter into the DC Power port on the back of the clock, then plug the adapter into a standard electrical outlet. The clock will power on automatically.
4. પ્રારંભિક સેટિંગ્સ: Upon first power-on, you may be prompted to set the language, time, and date. Use the remote control or buttons on the back of the clock to navigate and confirm selections.

ઓપરેટિંગ સૂચનાઓ

1. Basic Navigation and Settings

Use the remote control or the buttons on the back of the clock to access and adjust settings. The 'MENU' button typically opens the main settings menu, and arrow buttons navigate options. 'OK' or 'Play/Pause' confirms selections.

2. સમય અને તારીખ સેટ કરવી

1. Press the 'MENU' button to enter the main settings.
2. Navigate to 'Time Settings' or 'Date Settings'.
3. Use the arrow buttons to adjust hours, minutes, year, month, and day.
4. Select 12-hour or 24-hour format as desired.
5. Confirm your selections to save.

3. સુયોજિત એલાર્મ્સ

The clock supports up to 12 customizable alarms. Each alarm can be set with a specific time and an associated icon.

આકૃતિ 5: The clock displaying a 'Medication Time' alarm, with a visual representation of various daily reminder icons available for customization.

1. Press 'MENU' and navigate to 'Alarm Settings'.
2. Select an alarm slot (e.g., Alarm 1, Alarm 2).
3. એલાર્મ માટે ઇચ્છિત સમય સેટ કરો.
4. Choose an alarm icon from the available options (e.g., Medication Time, Meal Time, Wake Up).
5. Enable or disable the alarm.
6. Adjust the alarm volume (see section 5).
7. Confirm to save the alarm.

આકૃતિ 6: વિગતવાર view of the alarm setting interface, illustrating the selection of various alarm types and their corresponding icons.

4. તેજને સમાયોજિત કરવી

The clock features automatic brightness adjustment based on the time of day. You can also manually set the brightness.

આકૃતિ 7: Illustration of the automatic brightness feature, showing the display adjusting for daytime and nighttime conditions.

1. From the 'MENU', navigate to 'Display Settings' or 'Brightness'.
2. Select 'Auto' for automatic adjustment (5 levels) or 'Manual' to set a fixed brightness level.
3. If 'Manual' is selected, use arrow buttons to choose your preferred brightness level.
4. Confirm to save.

5. વોલ્યુમ એડજસ્ટ કરવું

The alarm and notification volume can be adjusted from level 1 to 10.

આકૃતિ 8: The clock's volume adjustment feature, suitable for various preferences, including deep sleepers.

1. From the 'MENU', navigate to 'Sound Settings' or 'Volume'.
2. Use the arrow buttons to select a volume level from 1 to 10.
3. Confirm to save.

6. Display Modes and UI Styles

The clock offers multiple display styles and user interface (UI) layouts to suit your preference.

આકૃતિ 9: Various selectable UI styles, including digital, calendar, and analog formats.

1. From the 'MENU', navigate to 'Display Settings' or 'UI Style'.
2. Use the arrow buttons to cycle through available UI layouts (e.g., digital, analog, icon modes).
3. Some styles may offer font color options.
4. તમારી પસંદગીની પુષ્ટિ કરો.

આકૃતિ 10: Examples of the unique time-based display, showing how the clock indicates different parts of the day (e.g., Morning, Afternoon, Night).

7. SD Card Photo and Video Playback (Optional)

If your model supports it, you can insert an SD card to display photos or play videos.

1. Insert a compatible SD card into the SD card slot on the back of the clock.
2. Navigate to 'Media Playback' or 'Photo/Video' in the main menu.
3. Select the desired media type (photos or videos) and browse your files.
4. Use the 'Play/Pause' button to start or stop playback.

જાળવણી

• સફાઈ: Use a soft, dry cloth to gently wipe the screen and body of the clock. Do not use liquid cleaners or abrasive materials.
• સંગ્રહ: If storing the clock for an extended period, disconnect it from power and store it in a cool, dry place.
• બેકઅપ બેટરી: The built-in backup battery maintains time and date settings during power outages. It is not user-replaceable.

મુશ્કેલીનિવારણ

વિશિષ્ટતાઓ

આકૃતિ 11: A summary of the clock's features and capabilities.

વોરંટી અને આધાર

For warranty information or technical support, please refer to the contact details provided with your purchase documentation or visit the official TMC webસાઇટ. ખરીદીના પુરાવા તરીકે તમારી ખરીદી રસીદ રાખો.
