TESSAN WS-T188LP Wireless Portable Charger Qi2 Instruction Manual

પરિચય

Thank you for choosing the TESSAN WS-T188LP Wireless Portable Charger Qi2. This device is designed to provide convenient and efficient power to your compatible electronic devices. Please read this manual thoroughly before use to ensure proper operation and to maximize the lifespan of your product.

Image: TESSAN WS-T188LP Wireless Portable Charger Qi2, showing its compact design and integrated USB-C cable.

ઉત્પાદન લક્ષણો

• Strong Magnetic Wireless Charging: Securely attaches to compatible iPhones (17/16/15/14 series) and other Qi-enabled devices for stable, cord-free power. Features automatic coil alignment for uninterrupted charging.
• Qi2 Certified 15W Fast Charging: Delivers ultra-fast 15W wireless charging, twice the speed of standard wireless chargers. Supports simultaneous charging of two devices with 15W wireless and 35W USB-C wired output.
• High-Capacity & Portable Design: 10,000mAh capacity provides multiple full charges for most smartphones. Compact size and foldable kickstand enhance portability and hands-free viewing
• બિલ્ટ-ઇન USB-C કેબલ: An integrated USB-C cable is included for convenient wired charging and for recharging the power bank itself.
• Built-in Foldable Stand: હેન્ડ્સ-ફ્રી માટે પરવાનગી આપે છે viewing of your device while charging, supporting both horizontal and vertical orientations.
• વ્યાપક સુસંગતતા: Compatible with MagSafe cases, AirPods, Samsung Galaxy devices, and all Qi-certified gadgets.
• Flight-Safe: Designed to meet airline carry-on regulations for safe travel.
• Advanced Safety Protection: Offers protection against overheating, short circuits, and over-discharge for safe charging.

સેટઅપ

1. પાવર બેન્ક ચાર્જિંગ

Before initial use, fully charge your TESSAN WS-T188LP power bank. Use the built-in USB-C cable or an external USB-C cable connected to a compatible power adapter (not included). The LED display will show the charging progress.

Image: The TESSAN power bank connected to a USB-C cable for recharging, with an arrow indicating 35W max input.

2. બેટરી લેવલ તપાસી રહ્યું છે

એકવાર પાવર બટન દબાવો view વર્તમાન બેટરી ટકાવારીtage on the LED display. The display will show the remaining capacity.

Image: The TESSAN power bank with a smartphone magnetically attached, showing the LED display with battery capacity percentage.

ઓપરેટિંગ સૂચનાઓ

1. વાયરલેસ ચાર્જિંગ (મેગસેફ સુસંગત)

1. Ensure your device is Qi-enabled and MagSafe compatible (for magnetic attachment).
2. Align your device with the magnetic charging area on the power bank. The magnets will securely attach the device.
3. The power bank will automatically begin 15W wireless charging.

Image: An iPhone magnetically attached to the TESSAN power bank, displaying the charging animation, highlighting 15W wireless charging.

નોંધ: For optimal magnetic attachment and charging efficiency, use a MagSafe compatible case or no case. Non-magnetic cases may hinder performance.

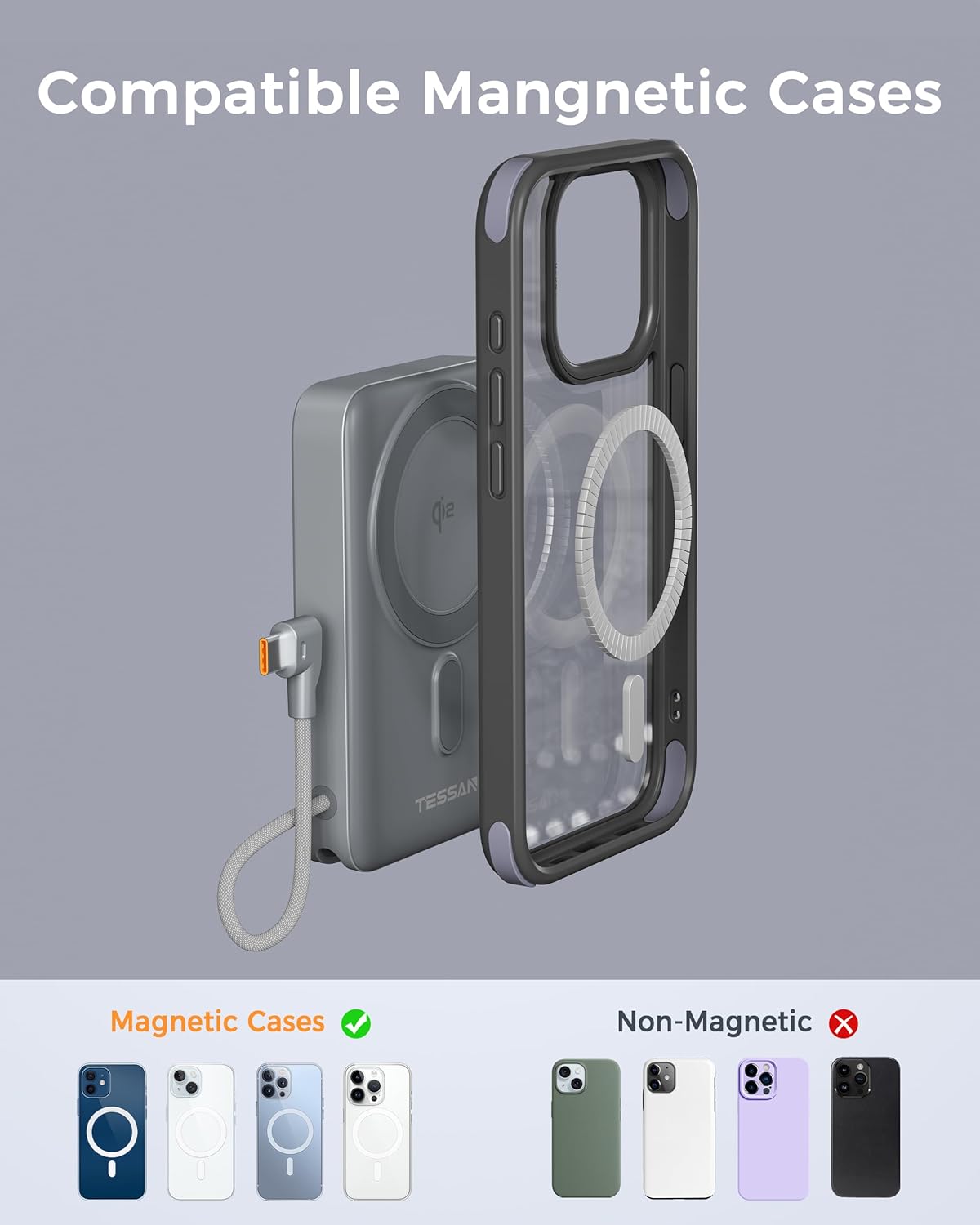

Image: An illustration showing magnetic cases are compatible with the power bank, while non-magnetic cases are not recommended for magnetic attachment.

2. વાયર્ડ ચાર્જિંગ

1. Pull out the built-in USB-C cable from its storage slot.
2. Connect the USB-C cable to your device's charging port.
3. The power bank will automatically begin 35W wired charging.

Image: A smartphone being charged by the TESSAN power bank using its integrated USB-C cable, indicating 35W fast charging.

3. Simultaneous Charging

The TESSAN WS-T188LP supports charging two devices simultaneously: one wirelessly via the magnetic pad and another via the built-in USB-C cable.

Image: The TESSAN power bank simultaneously charging an iPhone wirelessly and AirPods via the built-in USB-C cable, demonstrating multi-device charging capability.

4. Using the Built-in Stand

The power bank features a foldable kickstand for hands-free viewing. Simply pull out the stand from the back of the device. You can position your phone vertically or horizontally on the stand while it charges wirelessly.

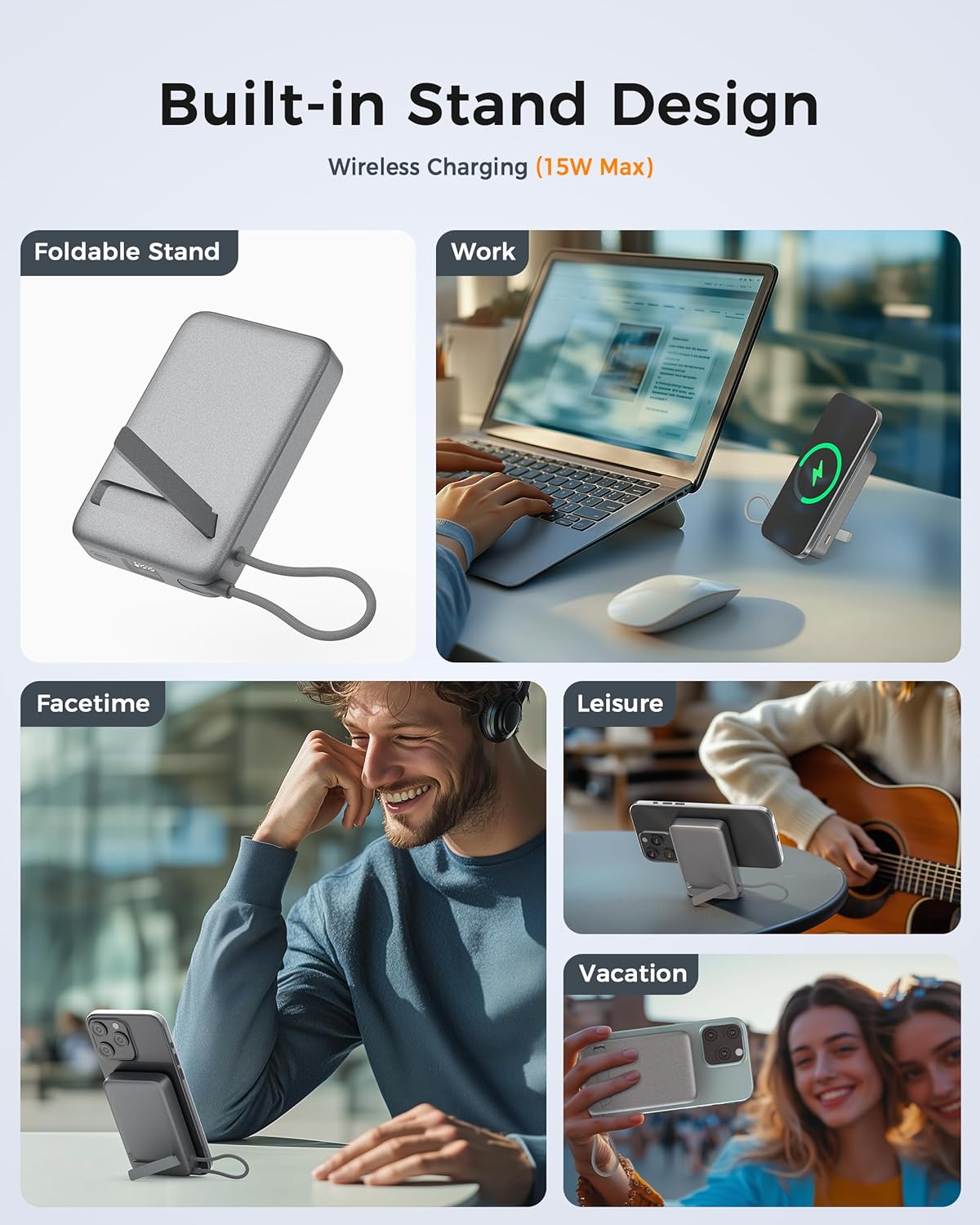

Image: A collage showing the TESSAN power bank's foldable stand in use, supporting a smartphone for work, FaceTime, leisure, and travel.

જાળવણી

• Keep the power bank away from water, fire, and high temperatures.
• ઉપકરણને મજબૂત અસરમાં મૂકવા અથવા આધીન કરવાનું ટાળો.
• ઉપકરણને નરમ, સૂકા કપડાથી સાફ કરો. કઠોર રસાયણો અથવા ઘર્ષક સામગ્રીનો ઉપયોગ કરશો નહીં.
• જ્યારે ઉપયોગમાં ન હોય ત્યારે પાવર બેંકને ઠંડી, સૂકી જગ્યાએ સ્ટોર કરો.
• Recharge the power bank at least once every three months to maintain battery health.

મુશ્કેલીનિવારણ

• ઉપકરણ ચાર્જ થતું નથી:
  • ખાતરી કરો કે પાવર બેંક પૂરતી ચાર્જ થયેલ છે.
  • Verify that your device is properly aligned with the magnetic charging area or securely connected via the USB-C cable.
  • Check if your device is Qi-enabled and compatible with the power bank.
  • Remove any non-MagSafe compatible cases that may interfere with wireless charging.
• ધીમું ચાર્જિંગ:
  • Ensure your device supports fast charging.
  • Check for proper alignment during wireless charging.
  • Avoid using your device heavily while charging.
• Power bank overheating:
  • Charging may temporarily pause if the device or power bank becomes too hot. This is a safety feature. Allow it to cool down before resuming.
  • Ensure adequate ventilation around the device and power bank during charging.

વિશિષ્ટતાઓ

સલામતી માહિતી

• Do not disassemble, open, or shred the power bank.
• પાવર બેંકને ગરમી કે આગના સંપર્કમાં ન રાખો. સીધા સૂર્યપ્રકાશમાં સંગ્રહ કરવાનું ટાળો.
• Do not short-circuit the power bank. Do not store it haphazardly in a box or drawer where other metal objects might short-circuit it.
• પાવર બેંકને યાંત્રિક આંચકો ન આપો.
• In the event of a leak, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
• પાવર બેંકને બાળકોની પહોંચથી દૂર રાખો.
• Only use the power bank for its intended purpose.
• Dispose of the power bank in accordance with local regulations.

વોરંટી અને આધાર

TESSAN products come with a standard manufacturer's warranty. For detailed warranty information, product support, or any inquiries, please visit the official TESSAN website or contact our customer service team. Keep your purchase receipt for warranty claims.

સંપર્ક માહિતી: Please refer to the product packaging or the official TESSAN webસૌથી અદ્યતન સંપર્ક વિગતો માટે સાઇટ.
