1. પરિચય
This manual provides detailed instructions for the installation, operation, and maintenance of your KEPEAK 10-inch Mirror Dash Cam. Please read this manual thoroughly before using the product to ensure proper function and safety. Keep this manual for future reference.
2. ઉત્પાદન ઓવરview
પેકેજ સામગ્રી
- 10-inch Mirror Dash Cam (Front Camera Integrated)
- 1080P રીઅર View કેમેરા
- રીઅર કેમેરા કેબલ (18ft)
- કાર ચાર્જર
- Mounting Straps/Rubber Clips
- 32GB મેમરી કાર્ડ
- વપરાશકર્તા માર્ગદર્શિકા
મુખ્ય લક્ષણો
- ડ્યુઅલ કેમેરા સિસ્ટમ: 4K Ultra HD front camera and IP68 waterproof 1080P rear camera.
- 10-ઇંચ IPS ટચ સ્ક્રીન: નું વિશાળ ક્ષેત્ર પૂરું પાડે છે view and intuitive control.
- વાઈડ ડાયનેમિક રેન્જ (WDR): Enhances video clarity in varying light conditions, especially at night.
- Smart Parking Assistance: Automatic display of rear view with parking assist lines when reversing.
- લૂપ રેકોર્ડિંગ: Automatically overwrites oldest files જ્યારે મેમરી કાર્ડ ભરેલું હોય.
- જી-સેન્સર: Detects collisions and locks video footage ઓવરરાઇટીંગ અટકાવવા માટે.
- પાર્કિંગ સર્વેલન્સ મોડ: Records events when an impact is detected while parked (requires built-in battery power).
- ૧૨૦° વાઇડ એંગલ લેન્સ: વ્યાપક કેપ્ચર કરે છે view રસ્તાના.
- મેમરી કાર્ડ સપોર્ટ: Includes a 32GB card, supports up to 64GB.
Image: The KEPEAK 10-inch Mirror Dash Cam with its front camera, rear camera, 32GB memory card, car charger, and mounting straps.
3. સ્થાપન માર્ગદર્શિકા
Follow these steps to properly install your dash cam system.
3.1 Mounting the Mirror Dash Cam
- Secure the mirror dash cam to your vehicle's original rearview mirror using the provided rubber clips/straps. Ensure it is firmly attached and does not obstruct your view.
- Adjust the angle of the front camera lens to capture the desired view આગળના રસ્તાની.
3.2 રીઅર કેમેરા ઇન્સ્ટોલ કરી રહ્યા છીએ
- Mount the rear camera at the back of your vehicle, typically above the license plate or on the rear window. Ensure it has a clear view and is securely fastened.
- Route the 18ft rear camera cable from the rear camera to the main mirror dash cam unit. It is recommended to route the cable along the vehicle's headliner and trim for a neat installation.
- Connect the rear camera cable to the designated port on the mirror dash cam.
3.3 પાવર કનેક્શન
- Insert the provided 32GB memory card into the dash cam's memory card slot.
- કાર ચાર્જરને ડેશ કેમના પાવર ઇનપુટ પોર્ટ સાથે કનેક્ટ કરો.
- કાર ચાર્જરને તમારા વાહનના 12V પાવર આઉટલેટ (સિગારેટ લાઇટર સોકેટ) માં પ્લગ કરો.
- Start your vehicle. The dash cam should power on automatically and begin recording.
Image: Visual guide for power wiring methods, including securing the dashcam, routing wires along the headliner, opening the A-pillar side panel, and plugging in the car charger.
4. ઓપરેશન સૂચનાઓ
The KEPEAK Mirror Dash Cam features a user-friendly touch screen interface.
4.1 મૂળભૂત કાર્યો
- પાવર ચાલુ/બંધ: The device automatically powers on/off with your vehicle's ignition. You can also manually power it on/off by pressing and holding the power button.
- રેકોર્ડિંગ: Recording starts automatically when the device powers on. A red dot or similar indicator on the screen confirms recording is active.
- સ્વિચિંગ Views: Slide your finger left or right across the touch screen to switch between front camera view, પાછળનો કેમેરો view, અથવા સ્પ્લિટ-સ્ક્રીન ડિસ્પ્લે.
- Adjusting Angles: Slide your finger up or down on the screen to adjust the vertical viewing angle of the displayed camera.
Image: The 10-inch IPS touch screen displaying a vibrant interface, highlighting its responsive touch functionality.
4.2 અદ્યતન સુવિધાઓ
- પાર્કિંગ સહાય: When your vehicle is in reverse gear, the dash cam automatically displays the full-screen rear view with dynamic parking assist lines. You can manually adjust the display range (up/down) for optimal visibility.
- લૂપ રેકોર્ડિંગ: The dash cam continuously records. When the memory card is full, it automatically overwrites the oldest unlocked files.
- G-Sensor (Collision Detection): In the event of a sudden impact or collision, the built-in G-Sensor automatically detects the event and locks the current video file, preventing it from being overwritten by loop recording.
- પાર્કિંગ સર્વેલન્સ મોડ: When the engine is off, the dash cam uses its internal battery to enter standby monitoring. If an impact is detected, it will automatically turn on and record the event. A fully charged internal battery can provide up to 2 weeks of standby monitoring. For continuous 24/7 monitoring, hardwiring the dash cam to your car's battery is required (hardwire kit sold separately).
Image: The dash cam screen showing a full-screen rear view with green, yellow, and red parking assist lines, indicating safe reversing.
Image: An illustration depicting cars in a parking lot, with a lock icon indicating the G-Sensor's auto-lock function for collision events.

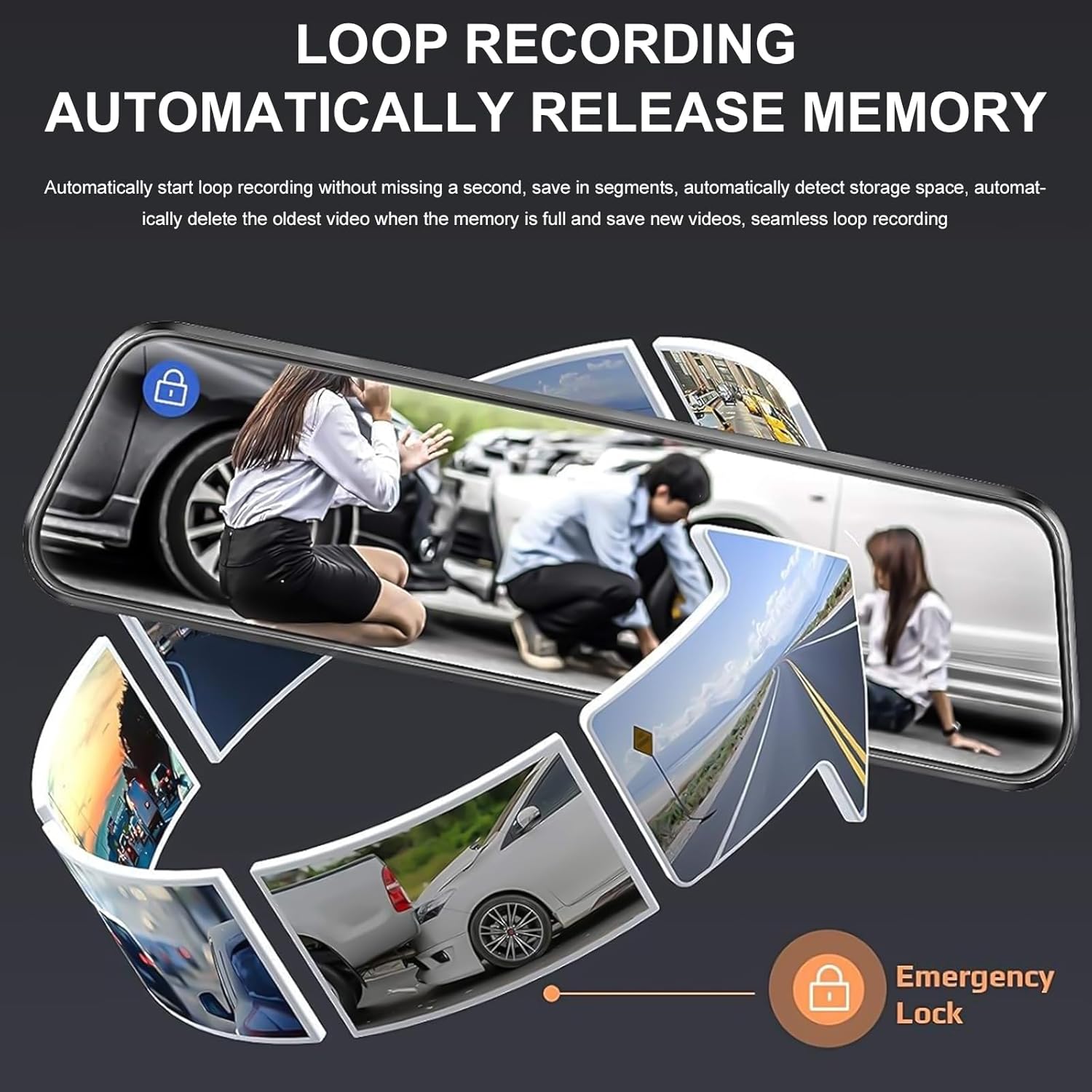

Image: A circular flow diagram illustrating loop recording, where new video segments replace older ones, with an emergency lock icon for protected footage.
Image: A car parked at night with a '24 HOUR' clock icon, symbolizing the 24-hour parking monitoring feature for vehicle protection.
5. Settings and Functions
Access the menu by tapping the screen. Here you can adjust various settings:
- વિડિઓ રિઝોલ્યુશન: Select desired resolution for front and rear cameras (e.g., 4K/1080P).
- લૂપ રેકોર્ડિંગ અવધિ: Set the length of video segments (e.g., 1, 3, 5 minutes).
- જી-સેન્સર સંવેદનશીલતા: Adjust the sensitivity of the collision detection.
- પાર્કિંગ મોનિટર: Enable or disable parking surveillance mode.
- સંપર્કમાં આવું છું: Adjust video brightness.
- તારીખ/સમય: ચોક્કસ સમય માટે સાચી તારીખ અને સમય સેટ કરોampરેકોર્ડિંગ પર s.
- સ્ક્રીન સેવર: Set the screen to turn off after a period of inactivity to avoid distraction.
- ભાષા: તમારી પસંદગીની ભાષા પસંદ કરો.
6. જાળવણી
- સફાઈ: Use a soft, dry cloth to clean the dash cam screen and lenses. Avoid abrasive cleaners or solvents.
- મેમરી કાર્ડ: Regularly format the memory card (at least once a month) to ensure optimal performance and prevent data corruption. Back up any important footage before formatting. Replace the memory card if it shows signs of degradation or errors.
- તાપમાન: Avoid exposing the dash cam to extreme temperatures for extended periods, as this can affect battery life and device performance.
7. મુશ્કેલીનિવારણ
If you encounter issues with your dash cam, refer to the following common solutions:
| સમસ્યા | શક્ય ઉકેલ |
|---|---|
| ડેશ કેમ ચાલુ થતો નથી. | Check if the car charger is properly connected to both the dash cam and the vehicle's 12V outlet. Ensure the vehicle's ignition is on. Test the charger in another port or with another device if possible. |
| રેકોર્ડિંગ બંધ થાય છે અથવા થીજી જાય છે. | Format the memory card. Ensure the memory card is a high-speed Class 10 or U3 card. Replace the memory card if issues persist. Check power connection stability. |
| નબળી વિડિઓ ગુણવત્તા. | Clean the camera lenses. Ensure the protective film has been removed from the lenses. Check video resolution settings. Adjust WDR settings if applicable. |
| પાછળનો કેમેરો દેખાતો નથી. | Check the connection of the rear camera cable to both the rear camera and the main unit. Ensure the cable is not damaged. |
| Parking assist lines not appearing. | Ensure the rear camera is properly connected and the vehicle is in reverse gear. Check settings for parking assistance. |
| Parking surveillance not working. | Ensure the parking surveillance mode is enabled in settings. Check the dash cam's internal battery charge level. For 24/7 monitoring, hardwiring is required. |
8. સ્પષ્ટીકરણો
- બ્રાન્ડ: રાખો
- મોડલ: B0FHJS1HZS
- સ્ક્રીનનું કદ: 10 ઇંચ
- ફ્રન્ટ કેમેરા રિઝોલ્યુશન: 4K અલ્ટ્રા એચડી
- રીઅર કેમેરા રિઝોલ્યુશન: 1080P પૂર્ણ એચડી
- નું ક્ષેત્ર View: 170 ડિગ્રી
- ખાસ લક્ષણો: G-Sensor, Night Vision (WDR), Touch Screen, Loop Recording, Parking Assistance, Parking Surveillance
- કનેક્ટિવિટી ટેકનોલોજી: યુએસબી
- મેમરી કાર્ડ સપોર્ટ: ૧૨૮ જીબી સુધી (૩૨ જીબી સહિત)
- ઉત્પાદન પરિમાણો: 8 x 5 x 4 ઇંચ
- વસ્તુનું વજન: 1.7 પાઉન્ડ
- રંગ: કાળો
- વાહન સેવાનો પ્રકાર: કાર, ટ્રક
9. વોરંટી અને સપોર્ટ
KEPEAK is committed to providing reliable products and customer satisfaction. If you encounter any issues with your mirror dash cam, our customer support team is available to provide fast and effective assistance within 24 hours.
Please contact us through the retailer's platform or refer to the contact information provided with your purchase for support.
