ATOTOZONE X10G110E 10-ઇંચ QLED એન્ડ્રોઇડ કાર સ્ટીરિયો સૂચના માર્ગદર્શિકા

1. પરિચય

This manual provides comprehensive instructions for the installation, operation, maintenance, and troubleshooting of your ATOTOZONE X10G110E 10-inch QLED Android Car Stereo. Please read this manual thoroughly before using the product to ensure proper functionality and safety.

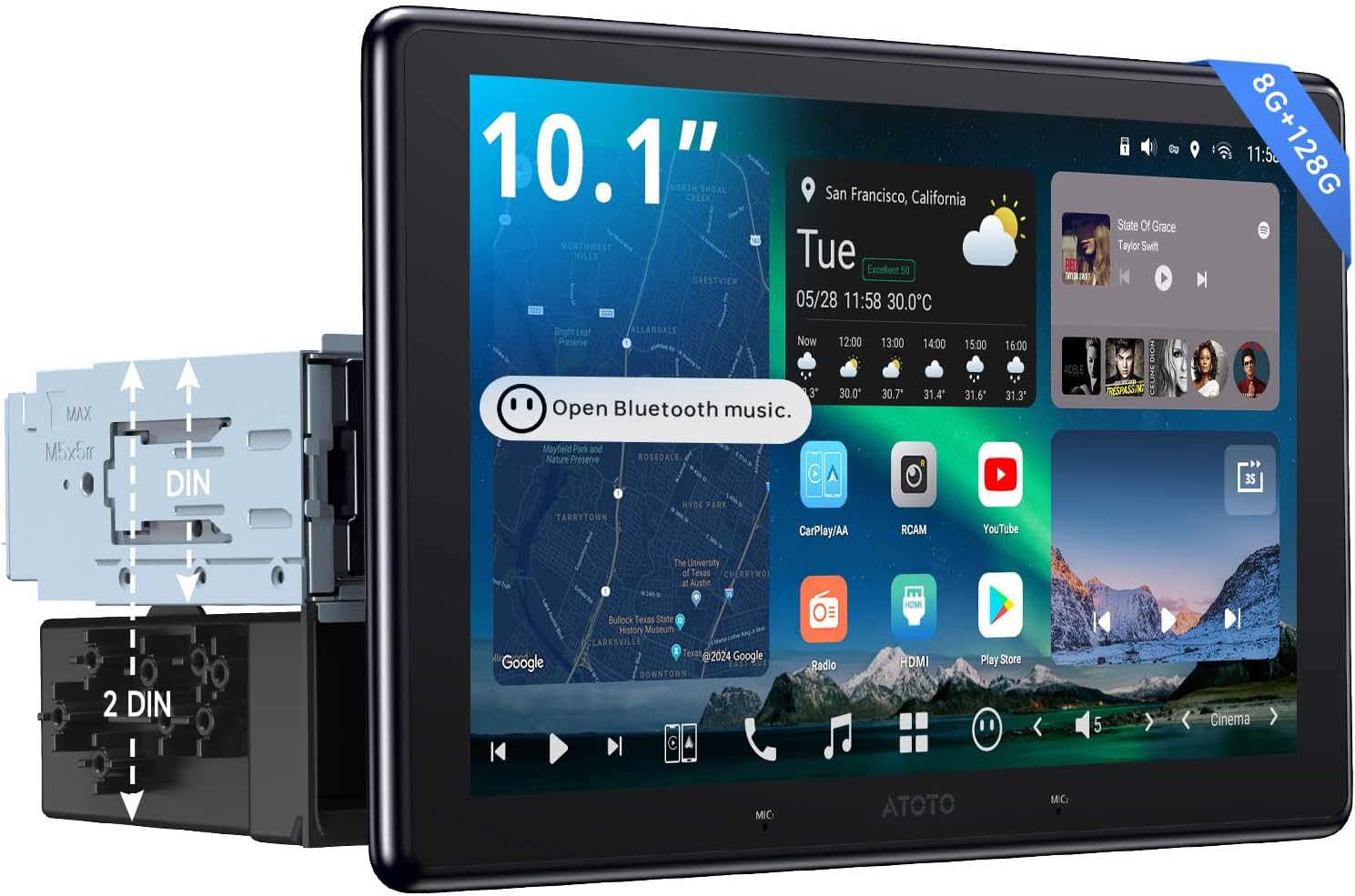

Image 1.1: The ATOTOZONE X10G110E 10-inch QLED Android Car Stereo main unit.

2. Product Features Overview

• શક્તિશાળી પ્રદર્શન: QCM SD665 SoC with 8GB RAM and 128GB internal storage for efficient operation.
• 10.1" QLED Floating Display: 1280x720 resolution QLED panel with 550 nits brightness and strong light suppression. Adjustable height, tilt, and angle.
• Dual-Camera Recording: Supports two 1080P cameras for simultaneous front and rear or interior footage. Features parking monitoring, emergency video lock, and GPS-linked playback.
• Evolved Audio Suite: Digital Signal Processor (DSP) with 36-band EQ, time alignment, 3-way crossover, and HD 24-bit DAC. Includes optical out and 10 assignable channels for custom 7.1.2 sound.
• Cellular Network & Dual-Band Wi-Fi: Integrated 4G LTE for streaming, map updates, and app installation. Built-in hotspot functionality.
• Vehicle Data Integration: Compatible with steering wheel controls, factory amplifiers, and vehicle data systems (gauges, climate).

3. સેટઅપ અને ઇન્સ્ટોલેશન

3.1. Mounting Styles

The ATOTOZONE X10G110E supports both Single DIN and Double DIN installation configurations. Ensure your vehicle's dashboard opening is compatible with the unit's dimensions.

Image 3.1: The FlexView Pro Mount allows for precise adjustment of the display position.

3.2. FlexView Pro Adjustable Mount

ફ્લેક્સView Pro mount provides flexibility for optimal viewing comfort and accessibility. Adjustments include height (up/down 27mm), left/right (24mm), forward (18mm), swivel (±30°), and tilt (up/down ±10°). These adjustments should be made during installation and then secured.

છબી 3.2: વિગતવાર view of FlexView Pro mount adjustments.

૩.૩. સ્થાપન બાબતો

Before final installation, verify that the display, in its full range of motion (forward, backward, up, down, left, right), does not obstruct essential vehicle controls, vents, or buttons. Ensure sufficient clearance for safe operation.

Image 3.3: Important measurements for avoiding obstruction during installation.

3.4. વાયરિંગ ડાયાગ્રામ

Refer to the following diagram for proper wiring connections. Incorrect wiring can damage the unit or vehicle electrical system. Professional installation is recommended.

Image 3.4: Comprehensive wiring diagram for all connections.

3.5. પેકેજ સામગ્રી

ખાતરી કરો કે નીચે સૂચિબદ્ધ બધી વસ્તુઓ તમારા પેકેજમાં હાજર છે:

• ATOTOZONE X10G110E Main Unit
• 20P Wire Harness
• USB1 Recording Storage Cable
• USB2 External Storage Cable
• RCA 16P Combination Cable
• 4-in-1 Antenna (for WiFi, GPS & Cellular Network)
• Tri-band Audio with Remote
• DIN Pocket
• Movable Mounting Brackets
• DIN Sleeve 1 & 2
• માઉન્ટિંગ સ્ક્રૂ
• ઝડપી માર્ગદર્શિકા અને વોરંટી કાર્ડ

Image 3.5: All included components in the product package.

4. ઓપરેટિંગ સૂચનાઓ

4.1. User Interface (AICE UI 13.0)

The X10G110E operates on AICE UI 13.0, an Android 13-based system. The interface is highly customizable, allowing users to personalize home screen layouts, widgets, and button bar configurations.

4.2. કનેક્ટિવિટી

The unit offers multiple ways to access the internet and connect devices:

• Wi-Fi: Connect to available Wi-Fi networks.
• 4G LTE: Utilize the built-in cellular network modem for internet access and hotspot sharing.
• બ્લૂટૂથ: Supports dual phone connection for simultaneous calls and music streaming.

Image 4.1: In-car 4G Hotspot Sharing for internet access.

Image 4.2: Dual phone Bluetooth connection and device connectivity.

૫.૨. વાયરલેસ કારપ્લે અને એન્ડ્રોઇડ ઓટો

Seamlessly integrate your smartphone with the car stereo using Wireless CarPlay for iOS devices or Wireless Android Auto for Android devices. Access navigation, music, messages, and more directly from the stereo display.

4.4. HDMI ઇનપુટ

The unit features an HDMI input port (HDMI-C) for connecting external devices such as TV boxes or game consoles, allowing you to display content on the QLED screen.

Image 4.3: HDMI input for connecting external devices like game consoles or TV boxes.

4.5. ઓડિયો સિસ્ટમ

Experience high-quality audio with the X10G110E's advanced audio features:

• બિલ્ટ-ઇન Ampજીવંત: MAX 4x49W, RMS 4x29W.
• 36-બેન્ડ ઇક્વેલાઇઝર: Fine-tune your audio with precision.
• સમય સંરેખણ: Optimize sound delivery to each speaker.
• 24-Bit HD DAC & 3-Way Crossover: Delivers clear, dynamic sound with dedicated outputs for tweeters, midrange, and dual subwoofers.
• 4V RCA Preamp આઉટપુટ: બાહ્ય જોડાણ માટે ampજીવનદાતાઓ.
• Optical SPDIF Output: For external DACs or DSP units.
• Hi-Res Audio (aptX HD): Higher bit transmission for superior Bluetooth music quality.
• SCVC (Speed Compensated Volume Control): Automatically adjusts volume based on vehicle speed and ambient noise.

Image 4.4: The 36-band equalizer for audio customization.

Image 4.5: 24-Bit HD DAC and Active 3-Way Crossover for balanced sound.

4.6. Voice Assistant (DriveChat GenAI)

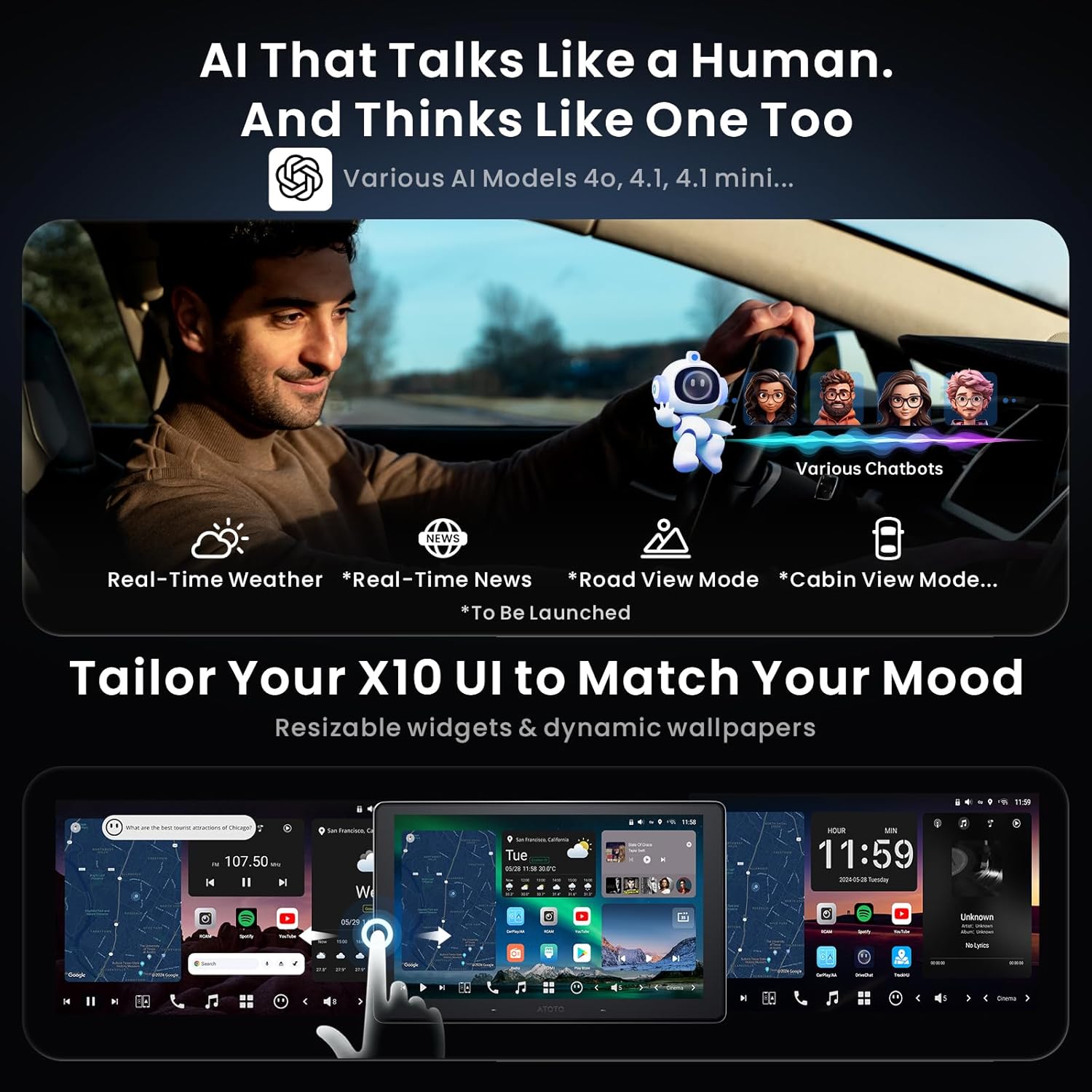

The DriveChat GenAI Voice Assistant, powered by ChatGPT, allows for effortless voice control of various functions, including media playback and information retrieval. Dual built-in noise-canceling microphones and external mic support enhance voice recognition accuracy.

Image 4.6: DriveChat GenAI Voice Assistant in action.

4.7. કેમેરા સિસ્ટમ

The X10G110E supports advanced camera functionalities for enhanced safety and recording:

• Dual 1080P Camera Recording: Connect front (AC-FHD02DV) and rear (AC-FHD02LR) cameras for simultaneous recording.
• Incident Detection (Gravity Sensor): વિડિઓ foo આપમેળે લોક થાય છેtage during detected incidents.
• પાર્કિંગ દેખરેખ: Records when vibrations are detected while parked.
• જીપીએસ ટ્રેક પ્લેબેક: Review રેકોર્ડેડ footage with synchronized GPS location data.
• Strong Light Suppression: Improves video clarity in challenging lighting conditions.

Image 4.7: Dual 1080P camera recording display.

4.8. Vehicle Data Integration

Integrate vehicle data for real-time monitoring:

• Bluetooth OBD II: Connect an optional AC-4450 On-Board OBD II Diagnostic Scanner to view real-time vehicle data.
• Tire Pressure Monitoring (TPMS): Monitor tire pressure in real-time with compatible sensors (AC-UTP1).

4.9. Digital Apps

The X10G110E comes with several built-in digital applications:

• TrackHU: Provides real-time tracking, track playback, and geofence alerts.
• FindApps: An APK downloader for easily installing apps unavailable from the Google Play Store.
• Cloud Photo: Image & Video Album for auto-syncing photos from your phone to the display.

5. જાળવણી

5.1. Over-the-Air (OTA) Updates

The X10G110E supports frequent OTA firmware upgrades to enhance stability, add new functions, and improve overall performance. These updates can be applied directly on the device without additional tools.

Image 5.1: Over-the-Air update icon.

6. મુશ્કેલીનિવારણ

If you encounter any issues with your ATOTOZONE X10G110E, please refer to the following general troubleshooting steps:

• કોઈ શક્તિ નથી: બધા પાવર કનેક્શન અને ફ્યુઝ તપાસો. ખાતરી કરો કે વાહનનું ઇગ્નીશન ચાલુ છે.
• કોઈ અવાજ નથી: Verify speaker connections, volume levels, and audio settings (EQ, balance, fader). Check if mute is activated.
• ડિસ્પ્લે સમસ્યાઓ: Restart the unit. Check cable connections to the display. Adjust brightness settings.
• Connectivity Problems (Wi-Fi/4G/Bluetooth): Ensure antennas are properly connected. Check network settings and signal strength. Re-pair Bluetooth devices.
• એપ્લિકેશન ખામી: Try restarting the app or the entire unit. Ensure the app is updated to the latest version.
• સિસ્ટમ પ્રતિભાવવિહીન: Perform a soft reset by pressing and holding the power button until the unit restarts. If the issue persists, a factory reset may be necessary (note: this will erase all user data).

વધુ વિગતવાર મુશ્કેલીનિવારણ અથવા સતત સમસ્યાઓ માટે, કૃપા કરીને ગ્રાહક સપોર્ટનો સંપર્ક કરો.

7. સ્પષ્ટીકરણો

8. વોરંટી અને સપોર્ટ

ATOTOZONE provides comprehensive support for your product:

• માનક કવરેજ: ખરીદીની તારીખથી 12 મહિના.
• વિસ્તૃત કવરેજ: An additional 6 months of coverage is available by communicating with us within 30 days of purchase.
• ગ્રાહક સંભાળ: Our product care team is available around the clock on weekdays.
• Online Manual & Quick Guide: Scan the QR code on the product box or visit the Eproductcare platform for additional resources and support.

Image 8.1: Warranty and extended coverage information.

For support inquiries, please visit the official ATOTOZONE webસાઇટ પર જાઓ અથવા તમારા ઉત્પાદન પેકેજિંગમાં આપેલી સંપર્ક માહિતીનો સંદર્ભ લો.

9. સત્તાવાર ઉત્પાદન વિડિઓ

Watch the official product video for a visual guide to the ATOTOZONE X10G110E's features and functionalities.
