oneisall PW14 108oz/3.2L Wireless Stainless Steel Cat Water Fountain Instruction Manual

પરિચય

Thank you for choosing the oneisall PW14 Wireless Stainless Steel Cat Water Fountain. This automatic pet water dispenser is designed to provide fresh, filtered water for your cats and small dogs, promoting better hydration and overall health. Its cordless design offers flexible placement, and the quiet operation ensures a peaceful environment for your pets and household. Please read this manual thoroughly before use to ensure proper setup, operation, and maintenance.

ઉત્પાદન ઓવરview

The oneisall PW14 Cat Water Fountain features an innovative design focused on pet health and user convenience. Key features include:

• Ultra-Quiet SilentFlow™ Pump: Operates at merely 20dB, significantly quieter than standard pumps, minimizing noise disturbance.
• Cordless & Long-Lasting Battery: 100% cordless design with a 4000mAh battery providing up to 30 days of operation on a single charge, allowing flexible placement without power outlet constraints.
• સાફ કરવા માટે સરળ: Detachable wireless pump and 304 stainless steel water basin for quick and safe cleaning. The lower part is made of BPA-free ABS material.
• 5-સ્તર ફિલ્ટરેશન સિસ્ટમ: Ensures every sip is fresh and pure by filtering impurities, softening water, and enhancing taste using Activated Carbon, Ion Resin, Maifan Stone, Non-Woven Fabric, and High-Density Sponge.
• ત્રણ ઓપરેટિંગ મોડ્સ: Includes Timer, Motion Sensor, and Continuous modes to encourage drinking and conserve battery life. Motion detection activates flow within 0.8m.
• સ્માર્ટ સૂચકાંકો: Features red light reminders for low water levels and low battery.

પેકેજ સામગ્રી

અનપેક કરતી વખતે, કૃપા કરીને ખાતરી કરો કે નીચેની બધી વસ્તુઓ હાજર છે:

• 1 x 3.2L Cordless Cat Water Fountain (ABS base)
• 1 x સ્ટેનલેસ સ્ટીલ પાણીની ટ્રે
• 1 x Wireless Water Pump
• 1 x 5V/1A Adapter
• 1 x વપરાશકર્તા માર્ગદર્શિકા
• 1 x સફાઈ બ્રશ
• 1 x Type-C Cord
• 1 x Filter (1pcs filter and sponges filter)

સેટઅપ સૂચનાઓ

1. અનપૅક ઘટકો: પેકેજિંગમાંથી બધી વસ્તુઓ કાળજીપૂર્વક દૂર કરો.
2. કોગળા ઘટકો: Wash the stainless steel water tray and ABS base thoroughly with water.
3. ફિલ્ટર તૈયાર કરો: Soak the filter in clean water for 5 minutes before first use to remove any loose carbon dust.
4. ફિલ્ટર ઇન્સ્ટોલ કરો: Place the prepared filter into the designated slot on the underside of the stainless steel tray. Ensure it is securely fitted.
5. એસેમ્બલ પંપ: Attach the wireless water pump to the stainless steel tray. Ensure the pump is correctly aligned with the water outlet.
6. પાણી ભરો: Fill the ABS base with clean water up to the MAX line indicated on the side. Do not exceed the MAX line.
7. ટ્રે મૂકો: Carefully place the stainless steel tray with the installed pump and filter onto the ABS base.
8. બેટરી ચાર્જ કરો: Connect the Type-C cord to the pump module and the adapter, then plug into a power outlet to fully charge the battery before initial use. The battery indicator light will show charging status.

ઓપરેટિંગ સૂચનાઓ

The oneisall PW14 fountain offers three distinct operating modes:

1. મોશન સેન્સર મોડ:

   This mode activates the water flow when a pet is detected within 0.8 meters of the fountain. The water will flow for a short period (e.g., 15-30 seconds) and then stop, conserving battery life and encouraging pets to drink when they approach.

   To activate: Press the mode button on the pump module until the motion sensor indicator light is on.
2. Timer Mode (Intermittent Flow):

   In this mode, the fountain dispenses water for a set duration (e.g., 20 seconds) at regular intervals (e.g., every 12 minutes), ensuring fresh water circulation throughout the day.

   To activate: Press the mode button until the timer indicator light is on.

3. સતત મોડ:

   The water flows continuously, providing a constant stream of fresh water. This mode is ideal if the fountain is plugged into a power source, as it will consume more battery if running wirelessly.

   To activate: Press the mode button until the continuous flow indicator light is on.

Low Water/Battery Indicators: The fountain features red indicator lights to alert you when the water level is low or the battery needs recharging.

જાળવણી

Regular maintenance is crucial for the longevity and hygiene of your pet's water fountain:

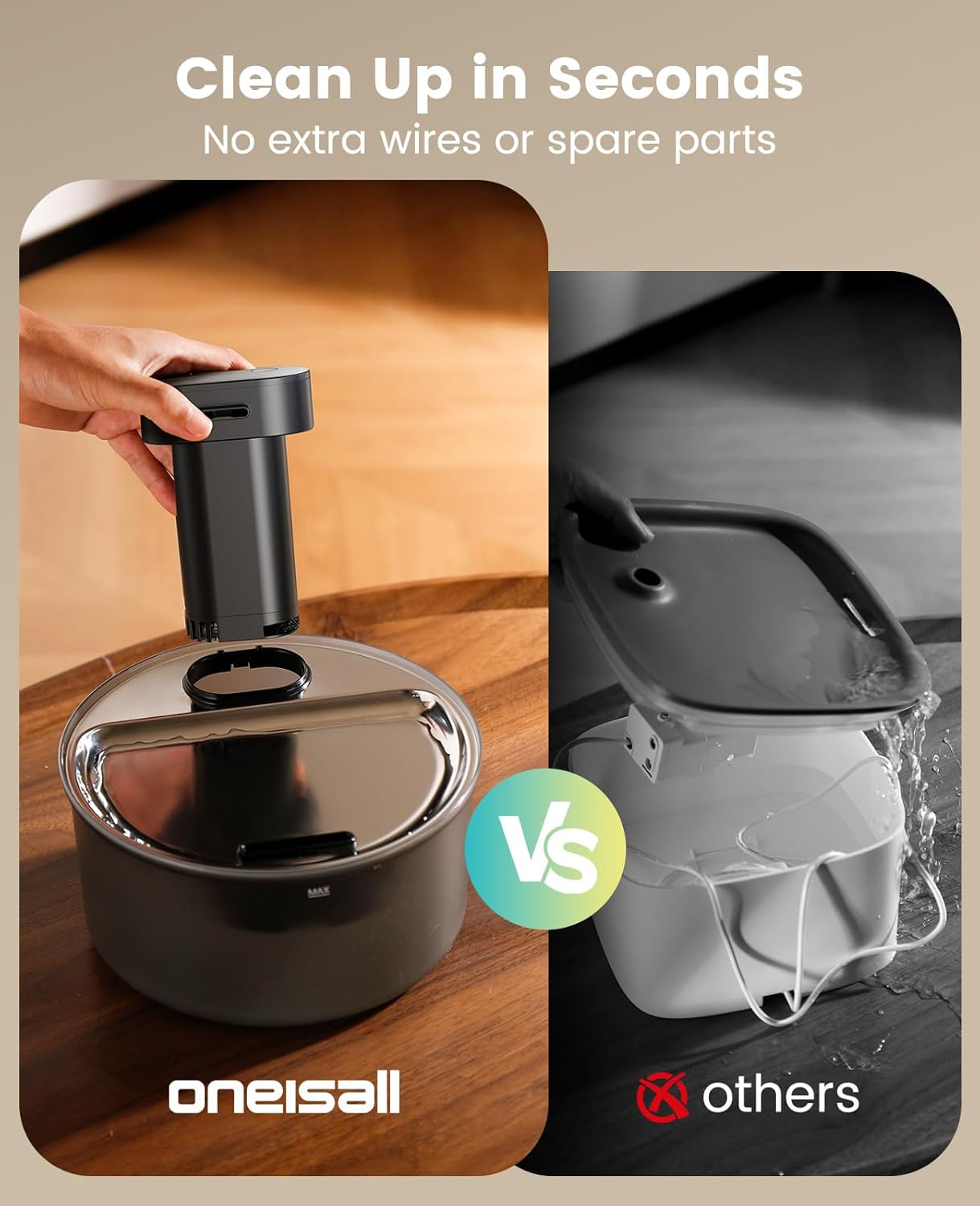

• Clean Fountain: It is recommended to clean the entire cat water fountain once every 1-2 weeks. Disassemble the components (stainless steel tray, ABS base, pump module) and wash them with mild soap and water. Rinse thoroughly to remove all soap residue.
• ફિલ્ટર બદલો: Replace the 5-layer filter once every 2-4 weeks, depending on usage and the number of pets. Ensure no filter material is left behind after replacement.
• પંપ સાફ કરો: Use the provided cleaning brush to clean the pump thoroughly during each full fountain cleaning.

મુશ્કેલીનિવારણ

• પાણીનો પ્રવાહ નથી:
  • Check if the pump is properly installed and connected.
  • Ensure the water level is above the minimum mark.
  • Clean the pump and filter for any blockages.
  • Verify the battery is charged or the unit is plugged in.
• Fountain is Noisy:
  • Ensure the water level is sufficient; low water can cause pump noise.
  • Check for any debris in the pump or filter that might be causing vibration.
  • Ensure the fountain is placed on a flat, stable surface.
• Water Appears Dirty:
  • Replace the filter as per maintenance guidelines.
  • Clean the entire fountain thoroughly.
• મોશન સેન્સર જવાબ આપતું નથી:
  • Ensure the motion sensor mode is selected.
  • સેન્સરને અવરોધતા કોઈપણ અવરોધો માટે તપાસો.
  • Clean the sensor area if it appears dirty.

વિશિષ્ટતાઓ

વોરંટી અને આધાર

The oneisall PW14 Cat Water Fountain comes with a 2 વર્ષની વોરંટી. For any questions, concerns, or technical assistance, please contact our customer support team. We offer 24/7 સપોર્ટ તમારા સંતોષની ખાતરી કરવા માટે.

For support, please refer to the contact information provided in your product packaging or visit the official oneisall webસાઇટ
