Barska 10-30x60 Gladiator Zoom Binoculars Instruction Manual

પરિચય

Thank you for choosing the Barska 10-30x60 Gladiator Zoom Binoculars. These binoculars are designed for long-range viewing, offering versatile magnification for various outdoor activities such as bird watching, stargazing, and hunting. This manual provides essential information for the proper setup, operation, and maintenance of your binoculars to ensure optimal performance and longevity.

બૉક્સમાં શું છે

Upon unpacking your Barska 10-30x60 Gladiator Zoom Binoculars, please ensure all the following items are present:

• Barska 10-30x60 Gladiator Zoom Binoculars
• કેસ વહન
• ગરદનનો પટ્ટો
• Lens Covers (for objective and ocular lenses)
• લેન્સ ક્લોથ

Image: The Barska 10-30x60 Gladiator Zoom Binoculars are shown alongside their included carrying case, neck strap, and lens covers, illustrating the complete package contents.

ઉત્પાદન લક્ષણો

• Powerful Zoom Magnification: Variable 10x to 30x magnification for versatile viewing from wide-angle to close-up details.
• Large Objective Lenses: 60mm objective lenses maximize light transmission for brighter, clearer images, especially in low-light conditions.
• Multi-Coated Optics with Ruby Lens: Fully coated lenses minimize glare and enhance contrast, providing crisp and sharp images. The ruby lens coating further reduces glare and improves visibility.
• એર્ગોનોમિક ડિઝાઇન: Features a shock-absorbing rubber armor for durability and a secure, comfortable grip.
• Tripod Compatible: Equipped with a built-in tripod adapter fitting for stable, extended viewing sessions, especially at higher magnifications.
• Fold-down Eyecups: Adjustable eyecups for comfortable viewચશ્મા સાથે અથવા વગર.

છબી: વિગતવાર view through the ruby-coated objective lens highlights the clarity and sharpness when observing distant subjects like a deer in a natural landscape.

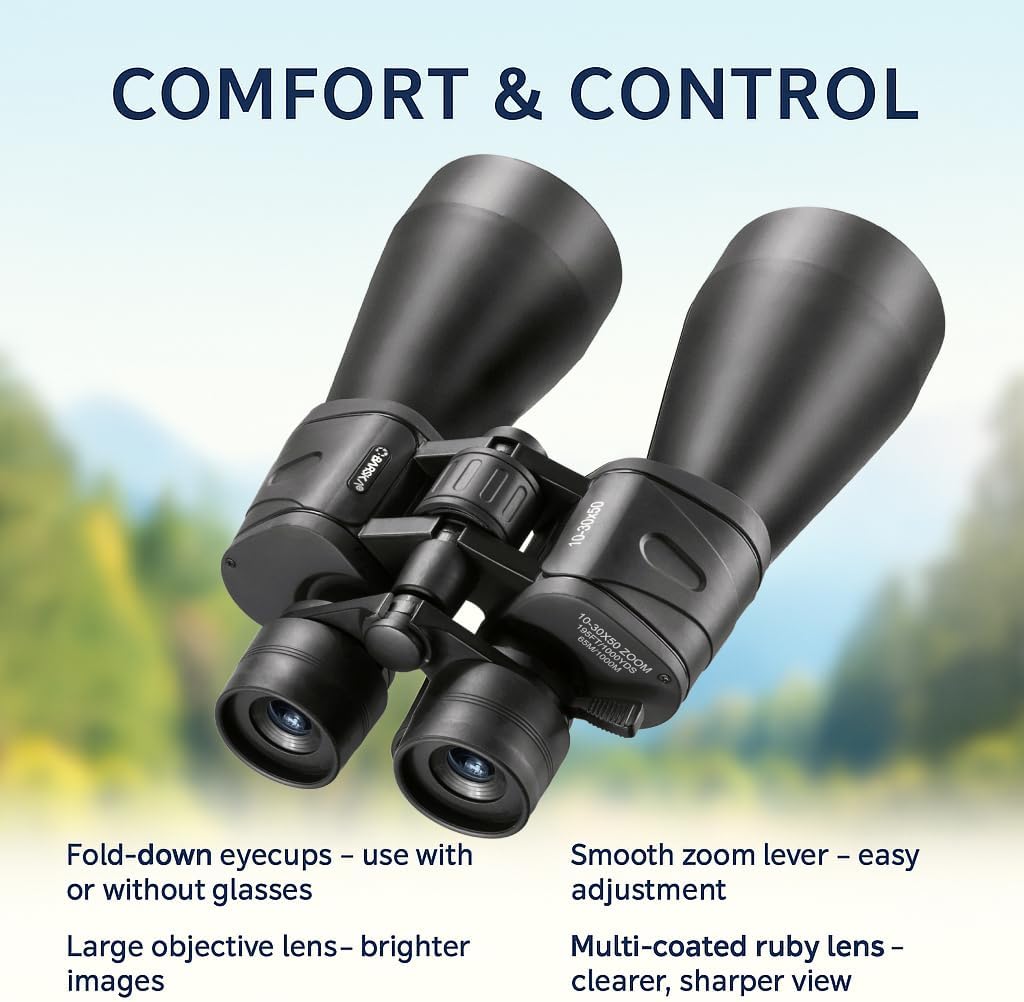

Image: This image illustrates the ergonomic features of the binoculars, including adjustable fold-down eyecups for comfort, a smooth zoom lever for easy adjustment, and the multi-coated ruby lens for a clearer view.

સેટઅપ

1. અનપેકીંગ: પેકેજિંગમાંથી બધા ઘટકો કાળજીપૂર્વક દૂર કરો. ભવિષ્યના સંગ્રહ અથવા પરિવહન માટે પેકેજિંગ રાખો.
2. Attach Neck Strap: Securely attach the provided neck strap to the strap lugs on the binoculars. Ensure it is firmly fastened to prevent accidental drops.
3. Adjust Interpupillary Distance: Hold the binoculars with both hands and look through them. Adjust the distance between the two barrels by moving them closer or further apart until you see a single, clear circular field of view.
4. ડાયોપ્ટર ગોઠવણ: Close your right eye and focus on a distant object using only your left eye, rotating the center focus wheel until the image is sharp. Then, close your left eye and use only your right eye to focus the right eyepiece (diopter ring) until the image is sharp. Once set, use only the center focus wheel for general focusing.
5. આઇકપ એડજસ્ટમેન્ટ: If you wear eyeglasses, fold down the rubber eyecups. If you do not wear eyeglasses, keep the eyecups in the up position for optimal eye relief.

ઓપરેટિંગ સૂચનાઓ

1. જનરલ Viewing: Once the interpupillary distance and diopter are set, use the center focus wheel to bring distant objects into sharp focus.
2. ઝૂમ કાર્ય: To change magnification, use the zoom lever located on the right eyepiece. Slide the lever to increase or decrease the magnification from 10x to 30x. Re-adjust the focus slightly with the center wheel after changing the zoom level for optimal clarity.
3. Tripod Use: વિસ્તૃત માટે viewing or high-magnification use, attach the binoculars to a tripod using the built-in adapter fitting. This will provide stability and reduce hand shake, ensuring a steady image.

Image: This comparison demonstrates the powerful zoom capability of the binoculars, showing a scene at 10x magnification on the left and the same scene magnified to 30x on the right, revealing greater detail.

Image: A couple is shown enjoying the outdoors, with one person using the Barska Gladiator Zoom Binoculars to observe distant birds and scenery, highlighting the product's suitability for sightseeing and nature observation.

Video: This official Barska video demonstrates the features and usage of the Gladiator Zoom Binoculars, showcasing their performance and versatility in various viewદૃશ્યો

Video: An official Barska video highlighting the Gladiator Zoom Power Compact Binoculars with Ruby Lens, detailing their design and optical capabilities.

જાળવણી

• લેન્સ સાફ કરવા: Use the provided lens cloth or a soft, lint-free cloth to gently wipe away dust or smudges. For stubborn marks, use a lens cleaning fluid specifically designed for optics. Avoid using abrasive cloths or harsh chemicals.
• શરીરની સફાઈ: Wipe the rubber armor with a soft, damp કાપડ સોલવન્ટ અથવા ઘર્ષક ક્લીનર્સનો ઉપયોગ કરશો નહીં.
• સંગ્રહ: Store binoculars in their carrying case in a cool, dry place when not in use. Avoid extreme temperatures and high humidity.
• ભેજ: If binoculars become wet, dry them thoroughly with a soft cloth before storing.

મુશ્કેલીનિવારણ

• Double Image: If you experience a double image, the binoculars may need collimation. This can sometimes be corrected by gently adjusting the barrels until the images merge. If the issue persists, especially at higher magnifications, professional service may be required.
• Foggy Lenses: Ensure lens caps are used when not viewing to prevent moisture buildup. If fogging occurs, allow the binoculars to air dry in a well-ventilated area.
• અસ્પષ્ટ છબી: Re-check diopter and center focus adjustments. Ensure lenses are clean and free from smudges or dust.

વિશિષ્ટતાઓ

વોરંટી અને આધાર

For warranty information, please refer to the manufacturer's official documentation or website. Barska provides customer support and may offer replacement parts or accessories if needed. You can typically find support solutions through their official site or by contacting their US-based support via phone.

• રિપ્લેસમેન્ટ ભાગો: Spare parts may be available upon request.
• ગ્રાહક સેવા: Contact Barska customer service for product help and solutions.

સલામતી માહિતી

ચેતવણી: આ ઉત્પાદનમાં કેલિફોર્નિયા રાજ્યને કેન્સર અને જન્મની ખામી અથવા અન્ય પ્રજનન નુકસાન માટેના રસાયણો શામેલ છે.

Always use binoculars responsibly. Never look directly at the sun or any intense light source through the binoculars, as this can cause permanent eye damage.
